Courtesy Lamp Replacement

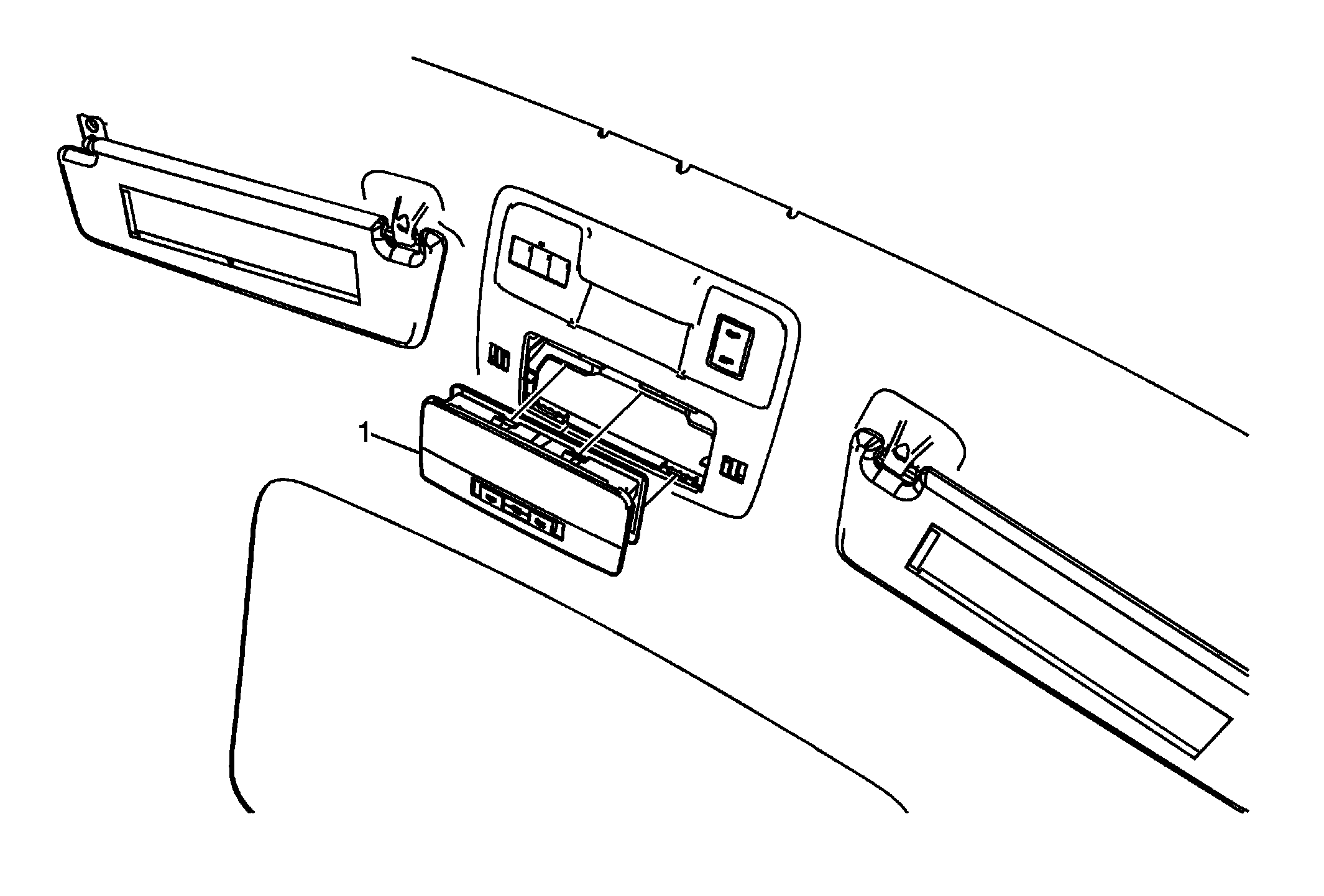

Fig 1: Courtesy Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the dome and reading lamp lens. Refer to Dome and Reading Lamp Lens Replacement
1	Courtesy Lamp Procedure Insert a flat bladed plastic tool into slot. Depress the integral 2 tabs to remove the courtesy lamp from the roof console. Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure
Remove the dome and reading lamp lens. Refer to Dome and Reading Lamp Lens Replacement

Courtesy Lamp

Procedure

Insert a flat bladed plastic tool into slot. Depress the integral 2 tabs to remove the courtesy lamp from the roof console.
Disconnect the electrical connector.
