Instrument Panel Assembly Replacement
Instrument Panel Assembly Replacement

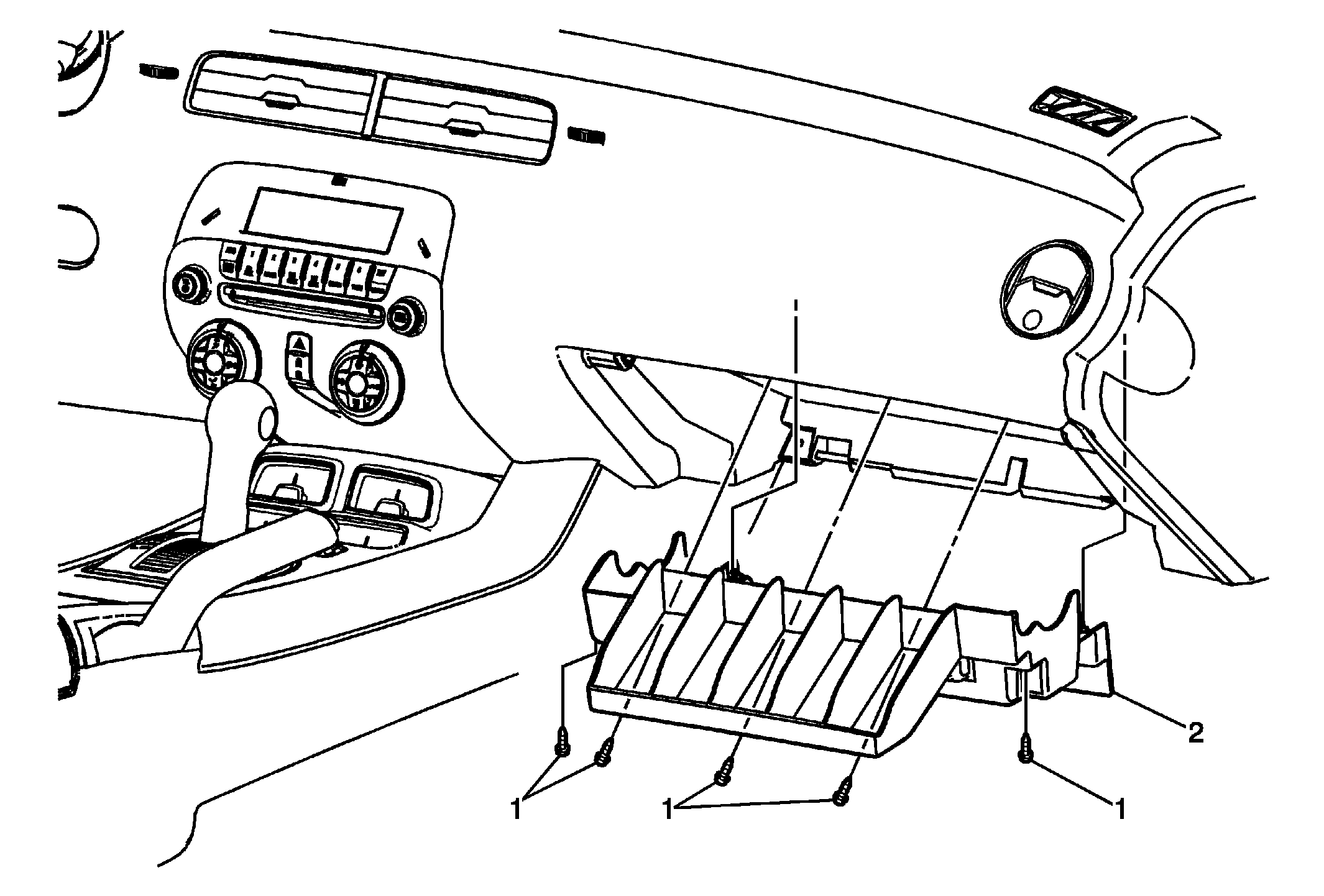

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel compartment assembly. Refer to Instrument Panel Compartment Replacement . |
|
| 1 | Instrument Panel Assembly Fasteners (Qty: 5)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Instrument Panel Assembly |
