Instrument Panel Compartment Replacement

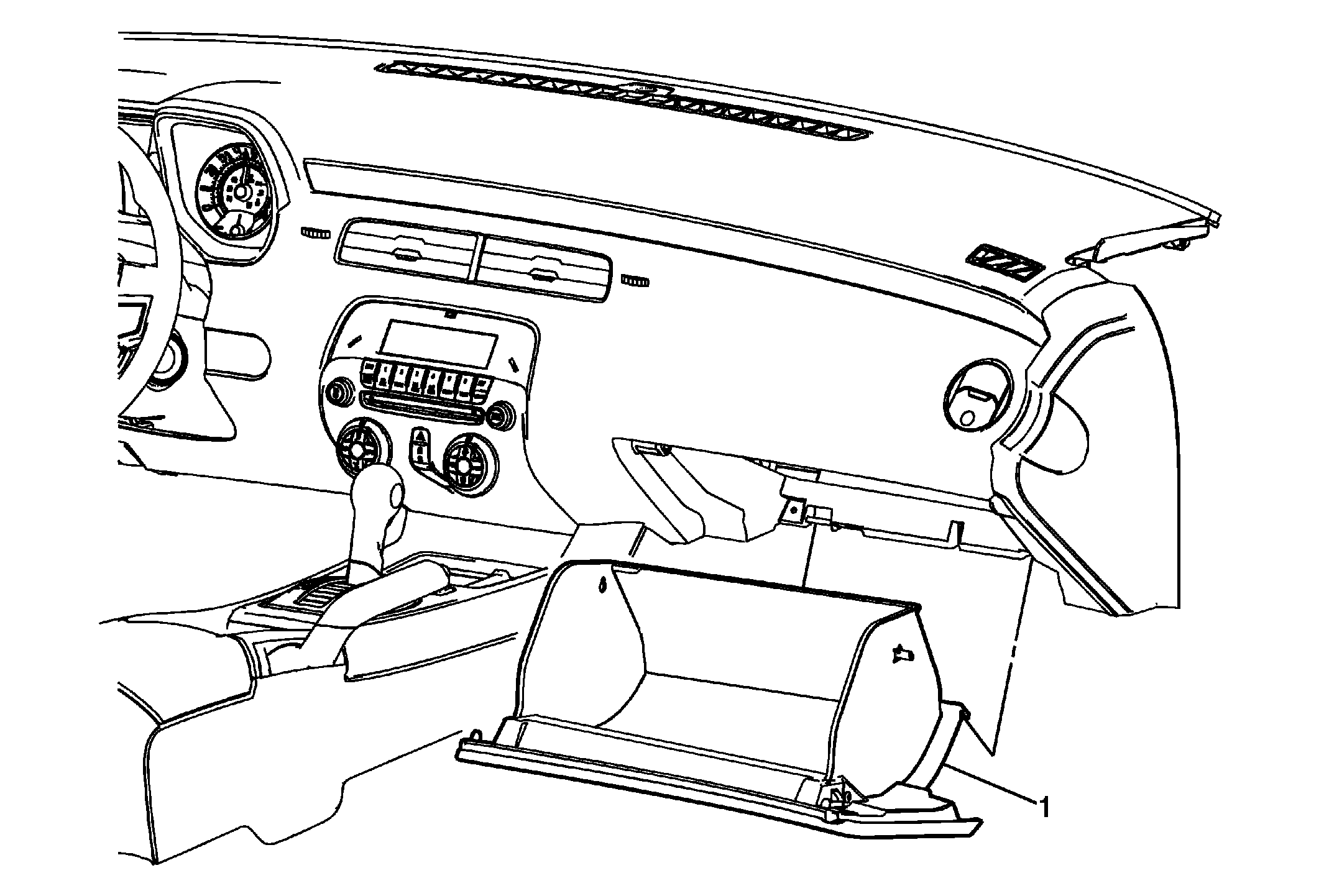

Fig 1: Instrument Panel Compartment
GM2193400Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Compartment Replacement

Callout Component Name

Preliminary Procedures

  1. Disconnect the instrument panel compartment door dampener from the compartment assembly.
  2. Squeeze the sides of the instrument panel compartment assembly allowing the compartment to open past the stops.
1 Instrument Panel Compartment Assembly
Procedure
Unsnap the instrument panel compartment assembly from the instrument panel.
