Rear Compartment Lid Carpet Replacement (Convertible)
Rear Compartment Lid Carpet Replacement (Convertible)

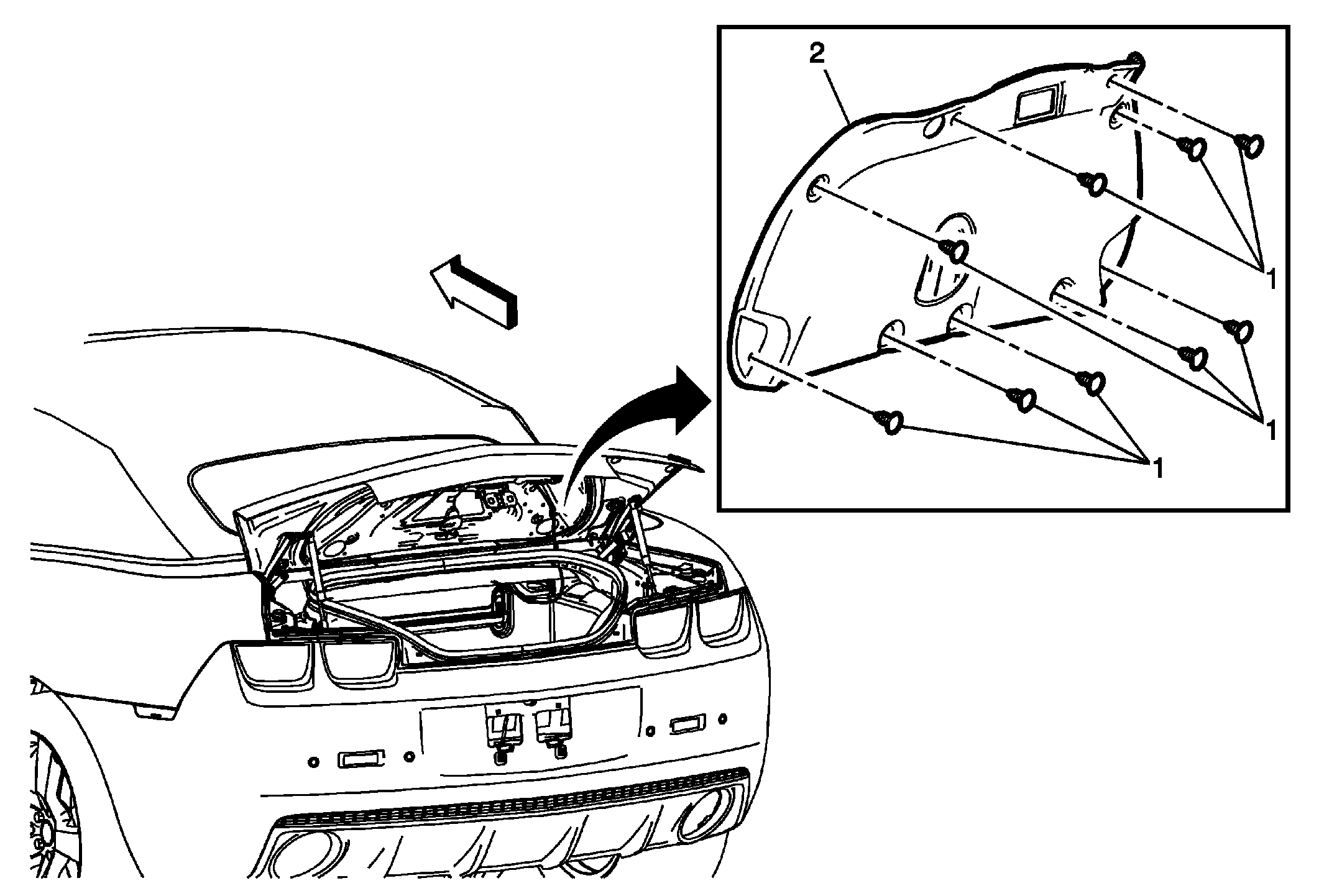

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the latch cover. |
|
| 1 | Rear Compartment Lid Carpet Retainers (Qty: 9) Procedure Use a trim removal tool to aid in the removal of the retainers. |
| 2 | Rear Compartment Lid Carpet Assembly Procedure Ensure the rear compartment lid latch release cable handle is properly positioned within the opening of the rear compartment lid carpet . |
