Tail Lamp Bulb Replacement

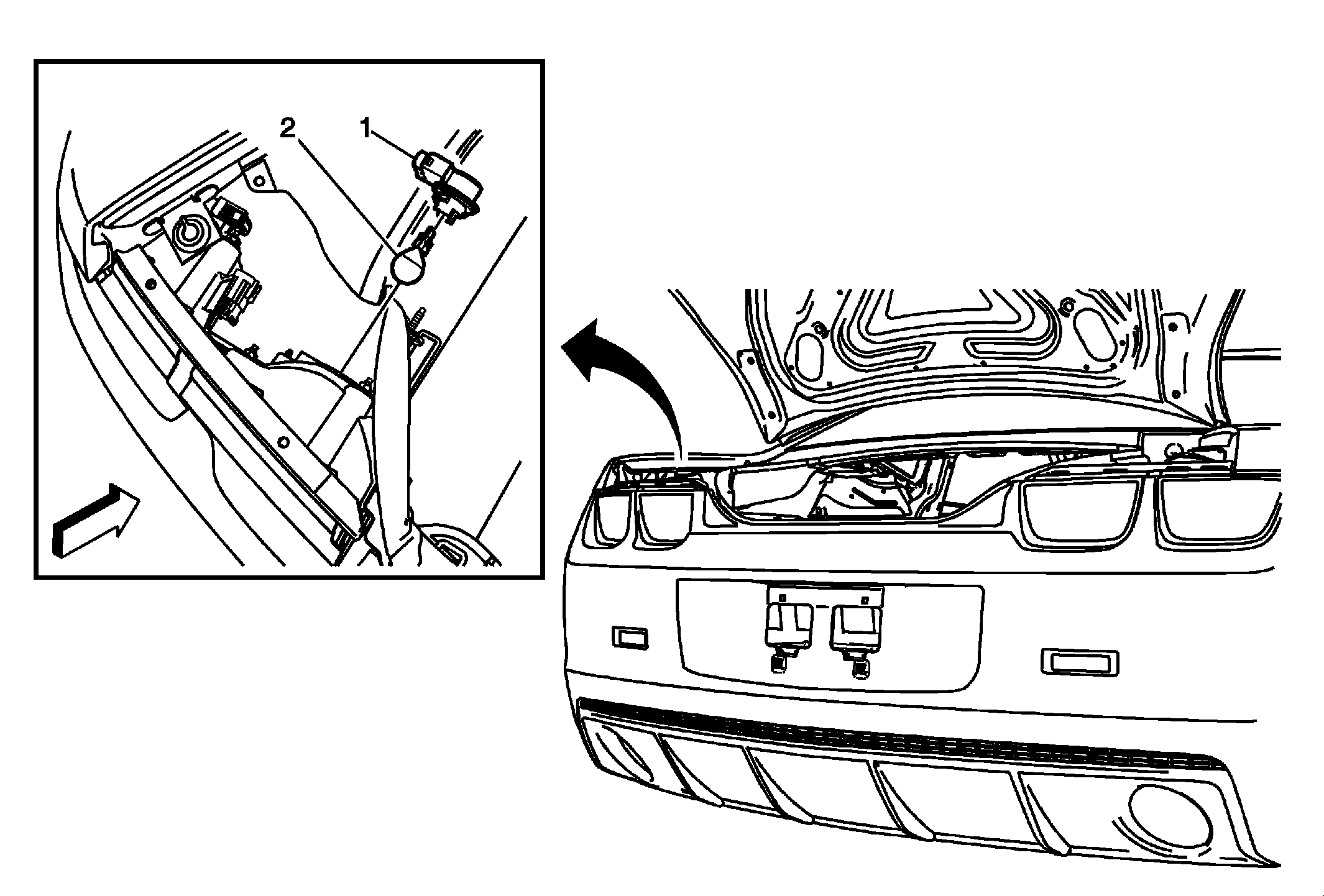

Fig 1: Tail Lamp Bulb & Socket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the tail lamp closeout filler panel. Refer to Tail Lamp Closeout Filler Replacement .
1	Tail Lamp Bulb Socket WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect the electrical connector from the bulb socket prior to removing the socket. Rotate the bulb socket counter-clockwise and remove from the tail lamp assembly.
2	Tail Lamp Bulb TIP: Pull the tail lamp bulb out of the tail lamp bulb electrical socket.

Callout

Component Name

Preliminary Procedure
Remove the tail lamp closeout filler panel. Refer to Tail Lamp Closeout Filler Replacement .

Tail Lamp Bulb Socket

WARNING:

Procedure

Disconnect the electrical connector from the bulb socket prior to removing the socket.
Rotate the bulb socket counter-clockwise and remove from the tail lamp assembly.

Tail Lamp Bulb
TIP: Pull the tail lamp bulb out of the tail lamp bulb electrical socket.
