High Mount Stop Lamp Replacement (Coupe)

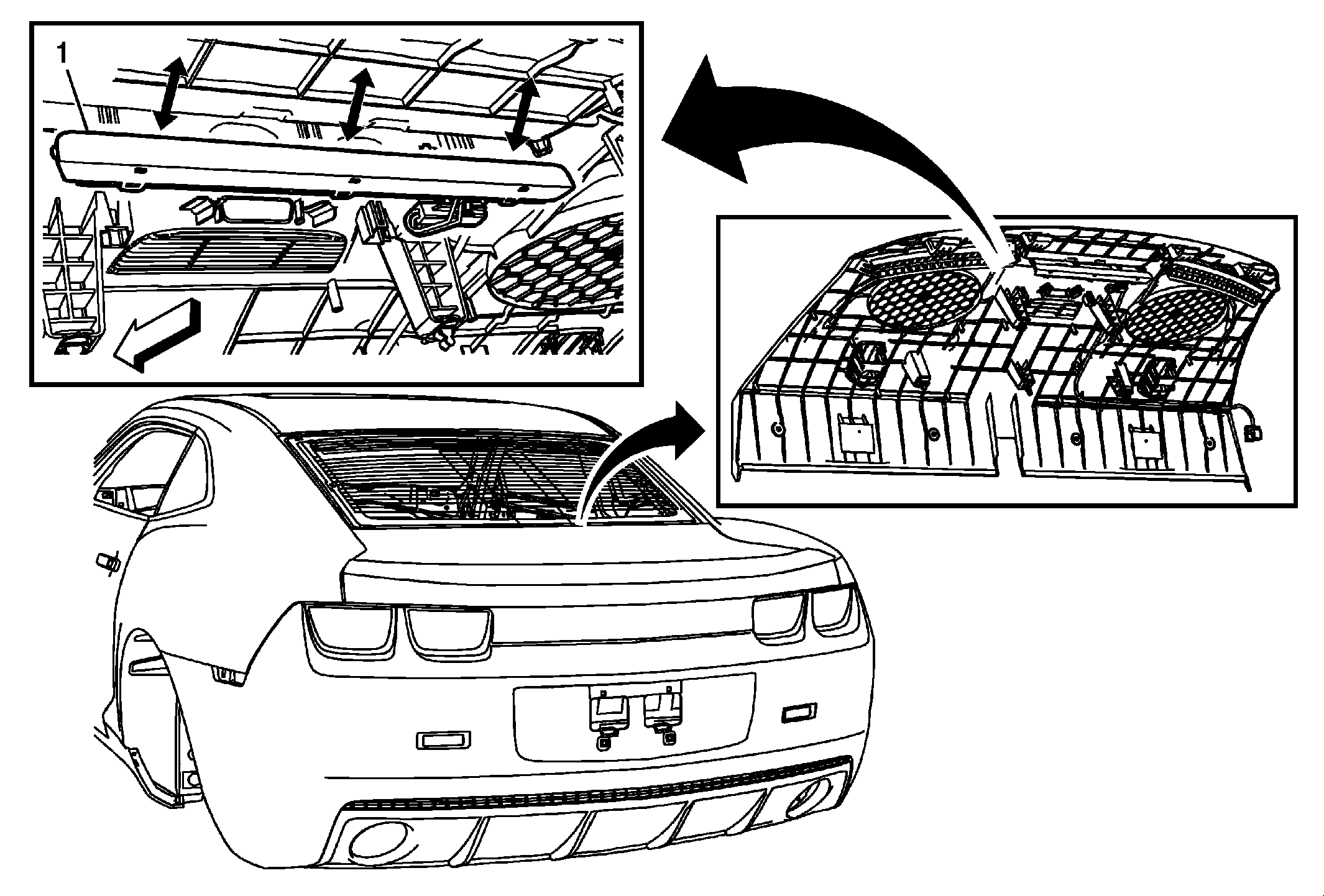

Fig 1: High Mount Stop Lamp
GM2201035Courtesy of GENERAL MOTORS COMPANY
High Mount Stop Lamp Replacement (Coupe)

Callout Component Name

Preliminary Procedures

  1. Remove the rear window panel trim. Refer to Rear Window Panel Trim Replacement (Coupe) .
  2. Pull back the window panel acoustic trim filler in order to access the high mount stop lamp.
  3. Disengage the high mount stop lamp electrical connector from the rear window trim panel.
  4. Pull the high mount stop lamp from the rear window panel trim.
1 High Mount Stop Lamp
TIP:  The high mount stop lamp is serviced as one part.
