Front Side Marker Lamp Bulb Replacement

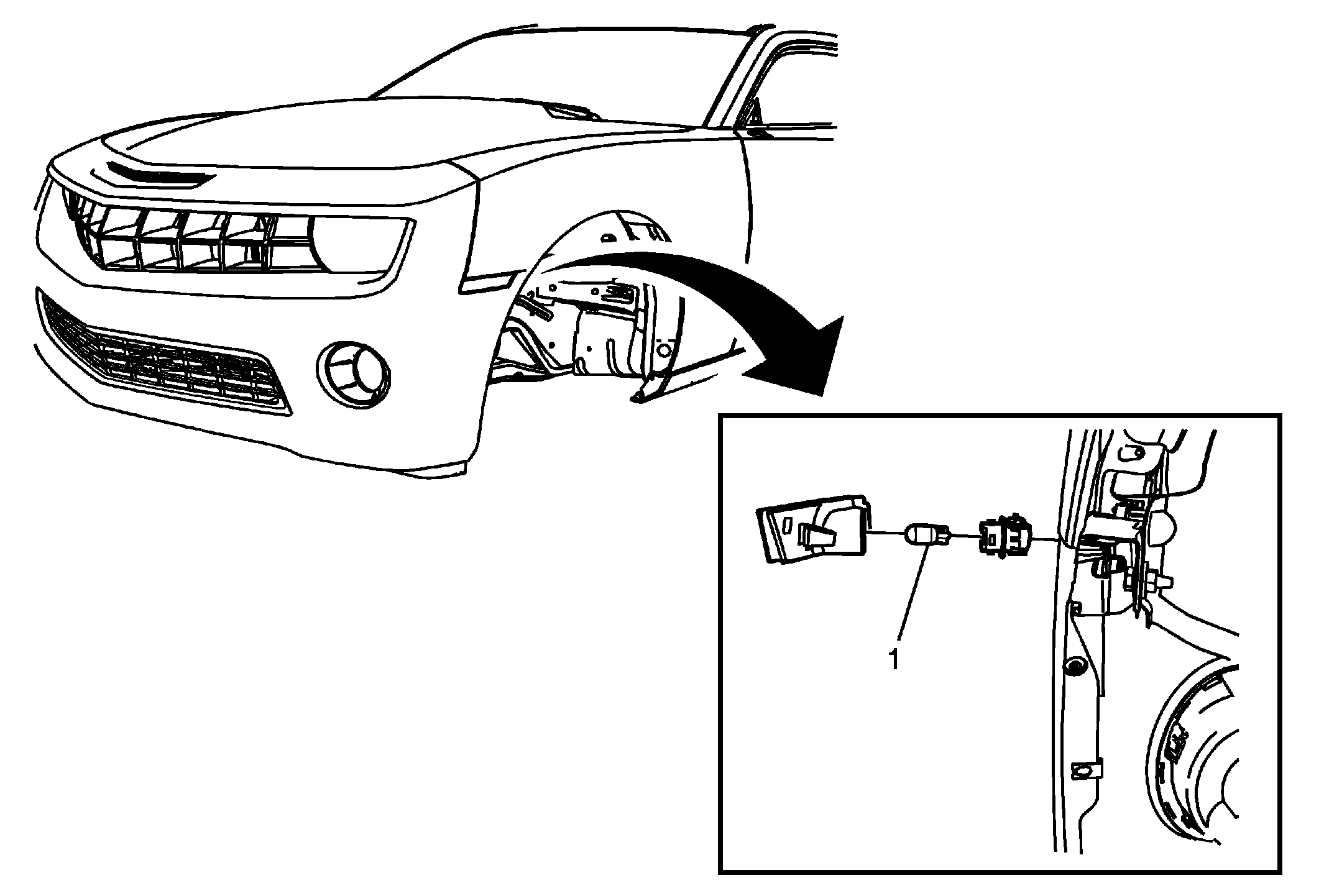

Fig 1: Front Side Marker Lamp Bulb

Courtesy of GENERAL MOTORS COMPANY

Front Side Marker Lamp Bulb Replacement

Callout	Component Name
Preliminary Procedure  Remove the front side marker lamp assembly. Refer to Front Side Marker Lamp Replacement .
1	Front Side Marker Lamp Bulb TIP:  Pull the marker lamp bulb straight out of the lamp socket.
