Front Side Door Map Pocket Illumination Lamp Replacement

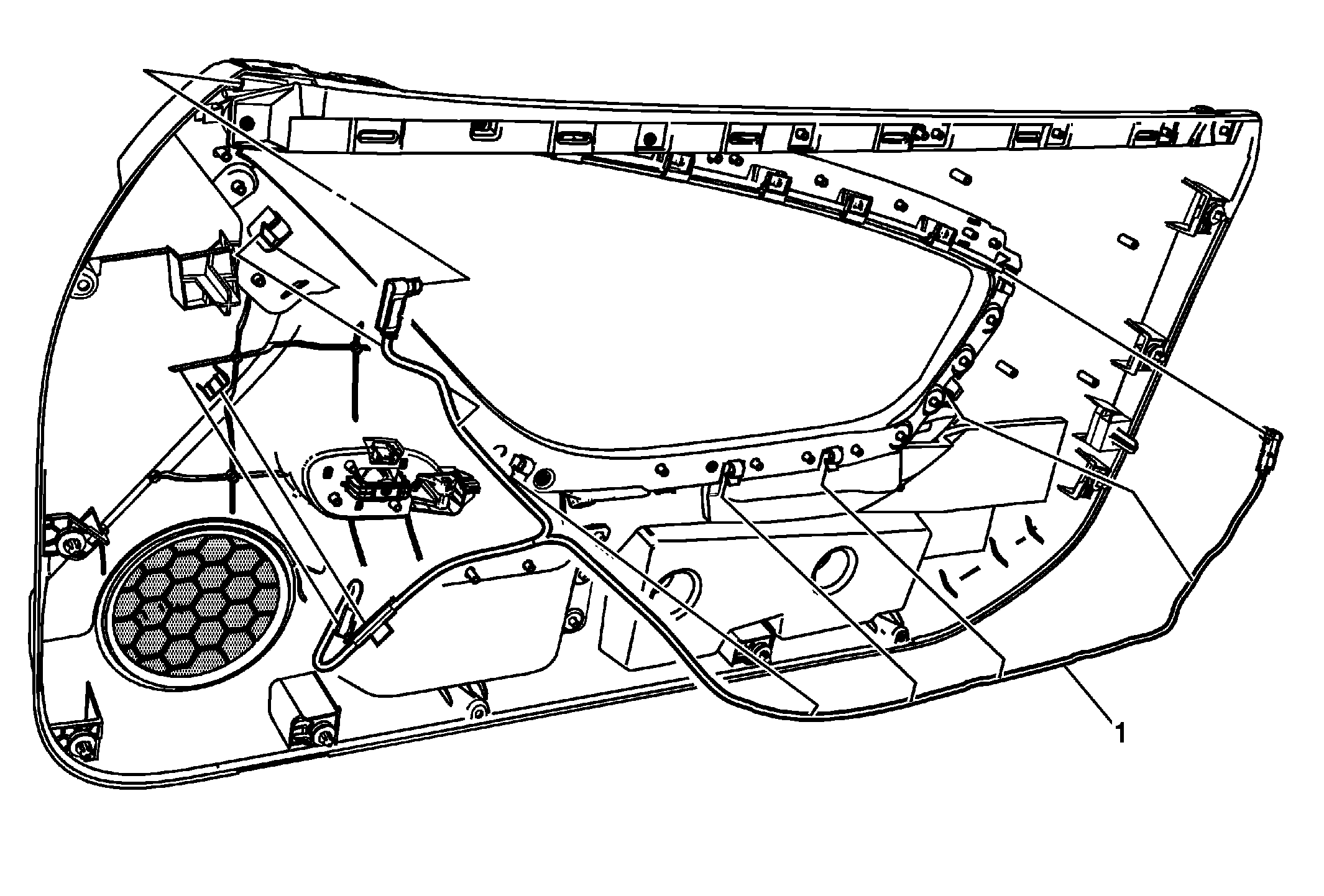

Fig 1: Front Side Door Map Pocket Illumination Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .
1	Front Side Door Map Pocket Illumination Lamp Procedure Disconnect both ends of lamp from the light pipe. Disconnect wire from eight integral clips.

Callout

Component Name

Preliminary Procedure
Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement .

Front Side Door Map Pocket Illumination Lamp

Procedure
