Dome and Reading Lamp Lens Replacement

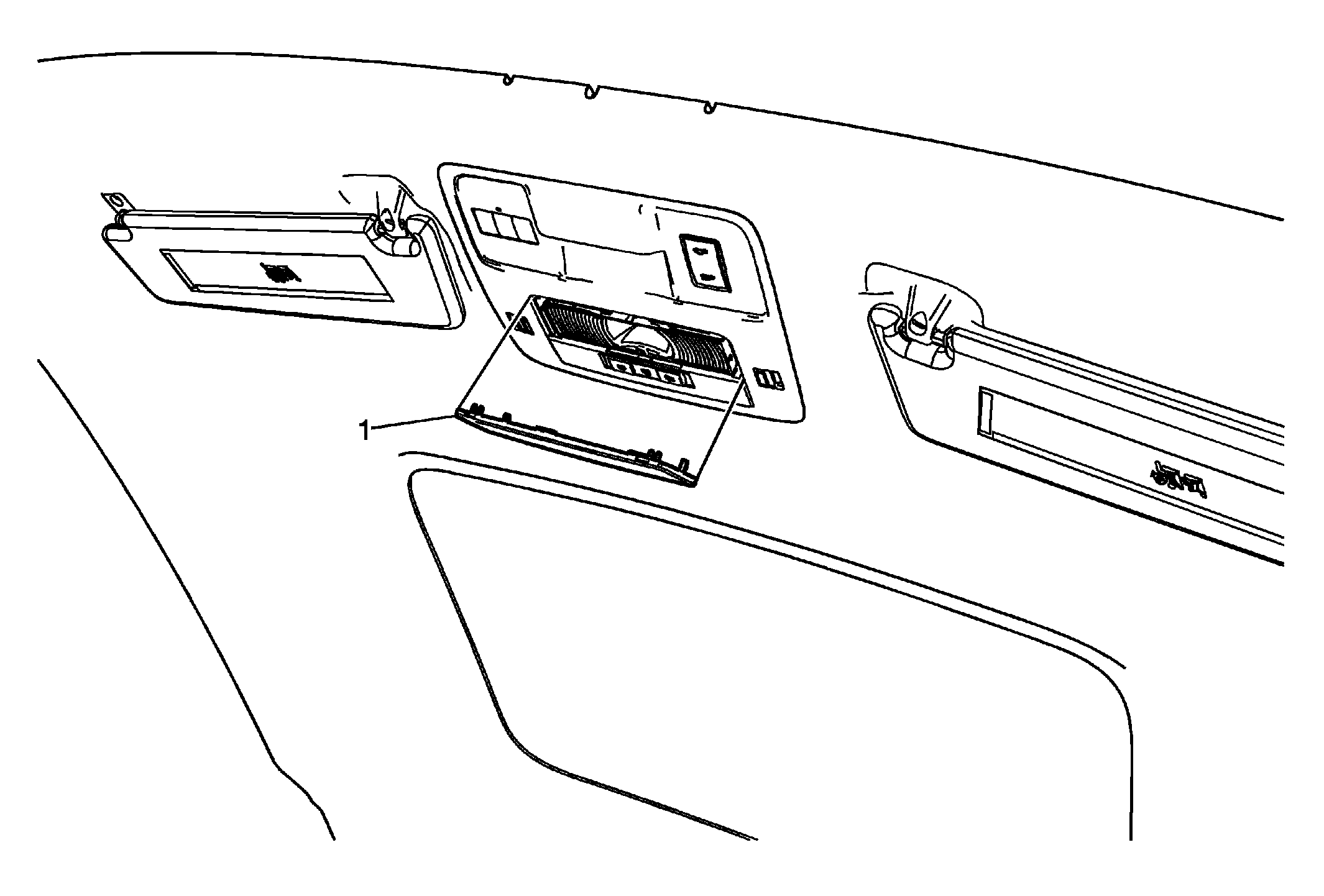

Fig 1: Dome & Reading Lamp Lens
GM2198342Courtesy of GENERAL MOTORS COMPANY
Dome and Reading Lamp Lens Replacement

Callout Component Name
1 Dome and Reading Lamp Lens
Procedure
Use appropriate tool to release the lens.
