Front Side Door Window Inner Sealing Strip Replacement
Front Side Door Window Inner Sealing Strip Replacement

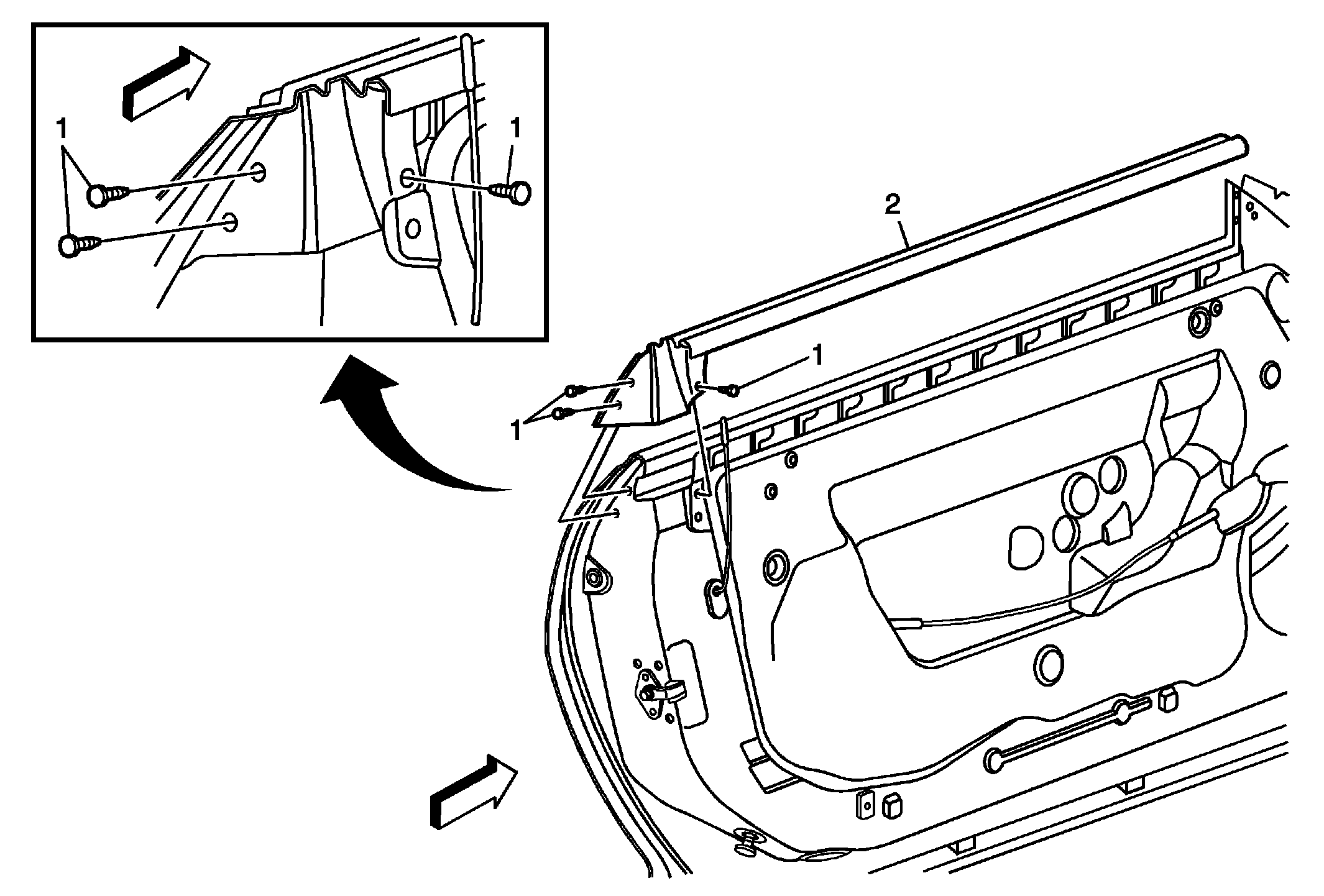

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement . |
|
| 1 | Front Side Door Window Inner Sealing Strip Retainers (Qty: 3) |
| 2 | Front Side Door Window Inner Sealing Strip Procedure Inspect the door for proper operation before installing the door trim panel. TIP: Pull up and away from inner panel to remove from the door. |
