Driver or Passenger Seat Lumbar Support Replacement
Courtesy of GENERAL MOTORS COMPANY Driver or Passenger Seat Lumbar Support Replacement
| Callout |
Component Name |
|
Preliminary Procedure
- Disable the SIR system. Refer to SIR Disabling and Enabling
.
- Remove the driver or passenger seat back cushion cover and pad. Refer to Driver or Passenger Seat Back Cushion Cover and Pad Replacement .
|

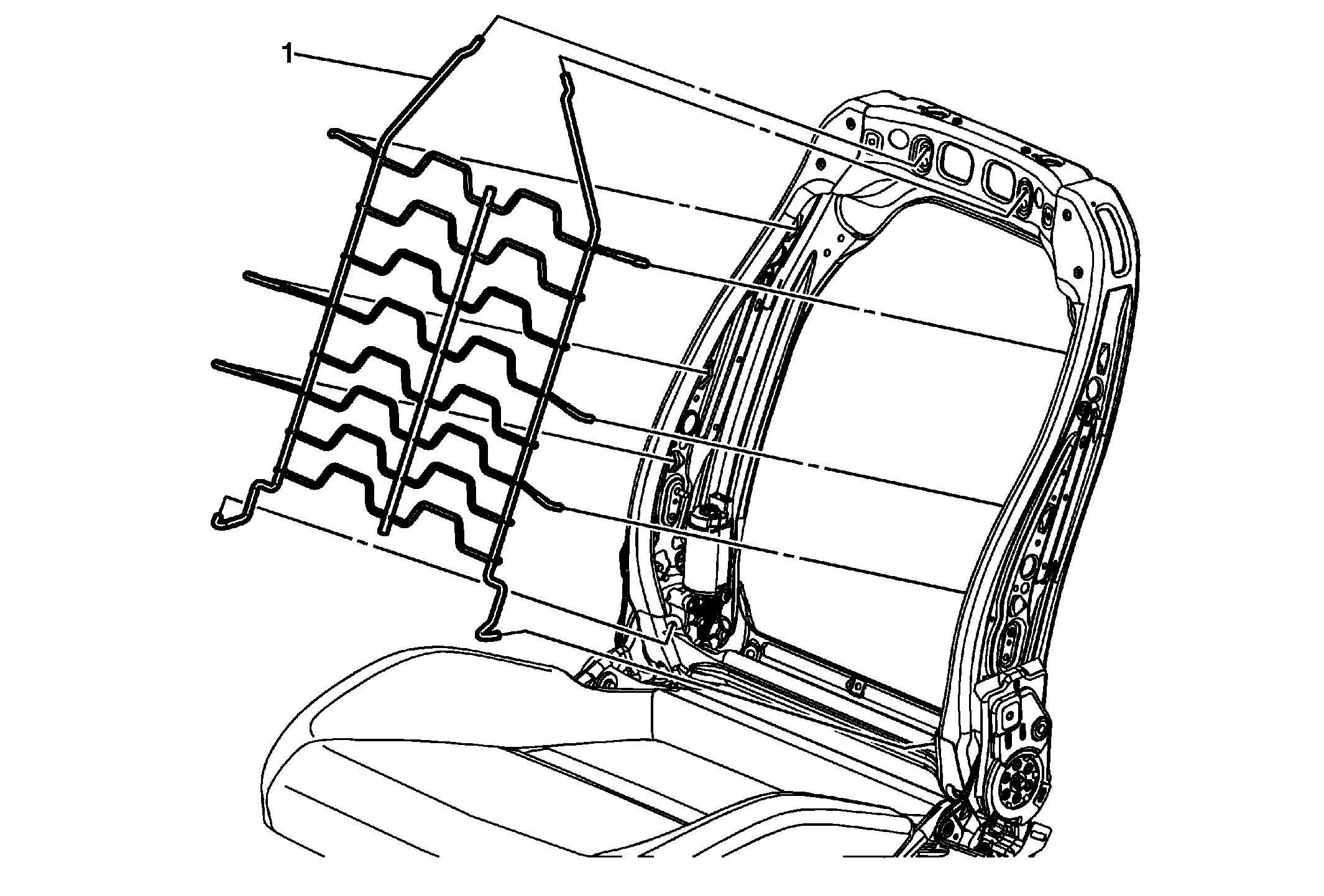

| 1 |
Front Seat Lumbar Support Procedure
- Disconnect the electrical connectors.
- Pull outward at the bottom of the seat to release the bottom support wires.
- Pull the bottom of the lumbar forward and up until the lumbar support wires disengage from the seat back frame.
|
