Rear Seat Cushion Cover Replacement

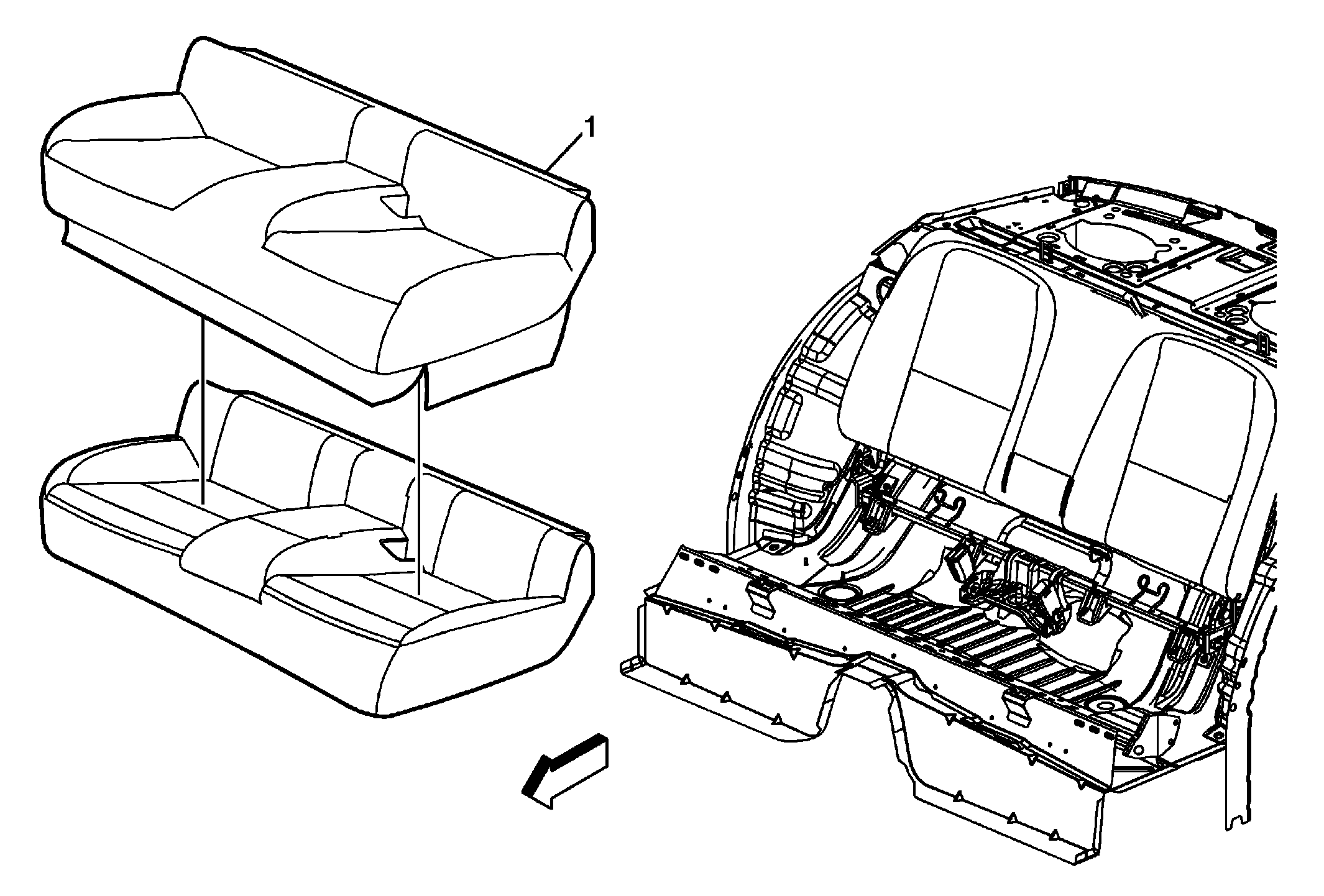

Fig 1: Rear Seat Cushion Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .
1	Rear Seat Cushion Cover Procedure Remove the hog rings from the under side of the rear seat cushion. Pull the cover away from the pad to disengage any retainers. TIP: When installing the rear seat cushion cover, pull the cover tightly in all corners to ensure that no creasing occurs.

Callout

Component Name

Preliminary Procedure
Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .

Rear Seat Cushion Cover

Procedure

TIP: When installing the rear seat cushion cover, pull the cover tightly in all corners to ensure that no creasing occurs.
