Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    NOTE: Ensure the transaxle is secured properly to the transmission jack.
  1. Position the transaxle onto a transmission jack and secure the transaxle to the transmission jack.
  2. Install the transaxle into the vehicle.

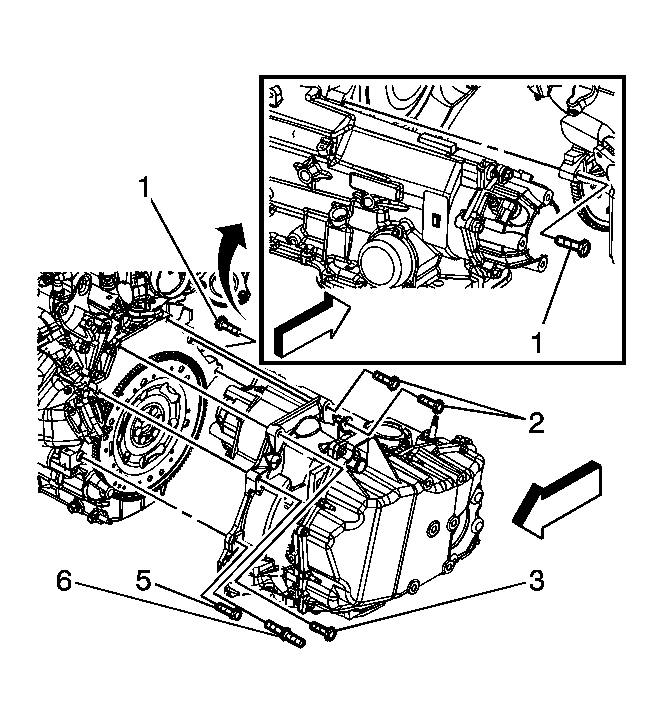

    3. Fig 1: Upper Transaxle Bolts And Stud
    GM1619382Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  3. Install the lower transaxle bolt (1, 5) and tighten to 75 N.m (55 lb ft).
  4. Install the transaxle brace. Refer to Transmission Brace Replacement (RPOs LZ9/LZE) .
    5. Fig 2: View Of Flywheel And Flywheel Holder (J 37096)
    GM309963Courtesy of GENERAL MOTORS CORP.
  5. Install the J 37096  in order to gain access to the torque converter bolts and to prevent the flywheel from turning.
    6. Fig 3: Identifying Flywheel To Torque Converter Bolts
    GM160984Courtesy of GENERAL MOTORS CORP.
  6. Install the torque converter bolts and tighten to 63 N.m (46 lb ft).
  7. Install the wheel drive shafts into the transaxle. Refer to Wheel Drive Shaft Replacement .
  8. Install the transaxle oil cooler pipes to the transaxle. Refer to Transmission Fluid Cooler Hose/Pipe Replacement .
  9. Install the starter motor. Refer to Starter Replacement (LGD/LZE) .
  10. Install the frame to the vehicle. Refer to Drivetrain and Front Suspension Frame Removal and Installation .
  11. Connect the vehicle speed sensor electrical connector.
  12. Install the left and the right front fender liners. Refer to Front Fender Liner Replacement .
  13. Install the front wheels. Refer to Tire and Wheel Removal and Installation .
  14. Lower the vehicle.
  15. Remove the engine support fixture.
    16. Fig 4: Upper Transaxle Bolts And Stud
    GM1619382Courtesy of GENERAL MOTORS CORP.
  16. Install the upper transaxle bolts (2, 3) and the stud (4). Tighten the bolts and the stud to 75 N.m (55 lb ft).
  17. Install the transaxle wiring grounds and the nuts and tighten to 45 N.m (33 lb ft).
  18. Connect the transaxle harness electrical connectors.
    19. Fig 5: Identifying Automatic Transaxle Range Selector Cable And Cable Bracket
    GM629687Courtesy of GENERAL MOTORS CORP.
  19. Install the transaxle range selector cable to the transaxle range selector cable bracket.
    20. Fig 6: View Of Transaxle Range Selector Cable & Shift Lever
    GM629690Courtesy of GENERAL MOTORS CORP.
  20. Install the automatic transaxle range selector cable retainer to the cable.
  21. Install the transaxle range selector cable to the transaxle shift lever.
  22. Install the air induction duct. Refer to Refer to Air Cleaner Outlet Duct Replacement for the 3.5L engine, or Air Cleaner Outlet Duct Replacement for the 3.9L engine.
  23. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement for the 3.5L engine, or Intake Manifold Cover Replacement for the 3.9L engine.
  24. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (LGD/LZE) .
    25. CAUTION: Refer to Transmission Overfill Caution .
  25. Fill the transaxle with automatic transmission fluid.
  26. Inspect for automatic transmission fluid leaks. Refer to Fluid Leak Diagnosis .
    27. NOTE: It is recommended that the transmission adaptive pressure (TAP) information be reset. Resetting the TAP values using a scan tool will erase all learned values in all cells. As a result, the ECM, PCM or TCM will need to relearn TAP values. Transmission performance may be affected as new TAP values are learned.
  27. Reset the TAP values. Refer to Transmission Adaptive Functions .
