Transmission Brace Replacement (RPOs LZ9/LZE)
WARNING: This page is about a different variant/trim than selected.

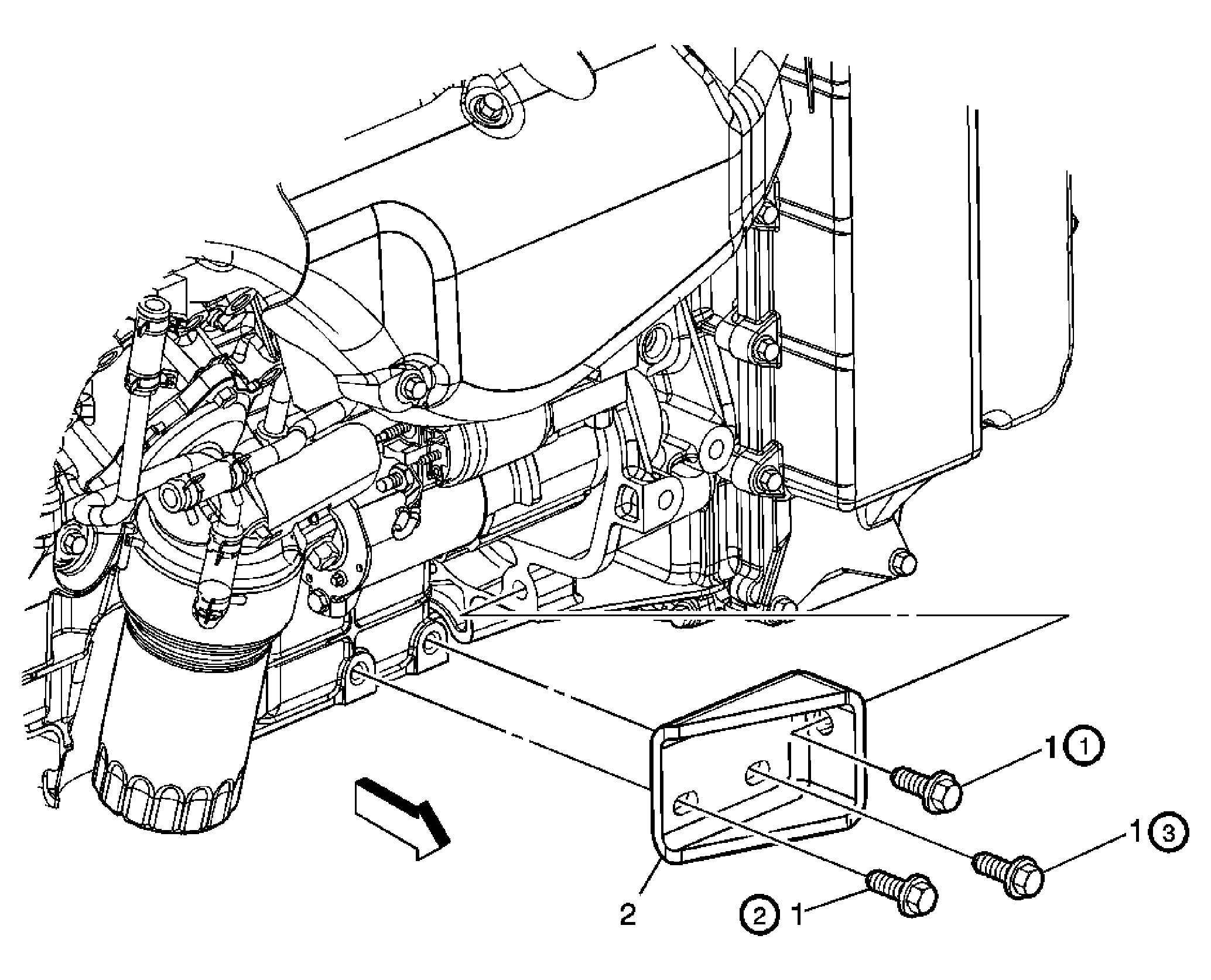

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Raise the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Transmission Brace Bolts (Qty: 3)
CAUTION:
Refer to Fastener Caution
. Tip: Tighten bolts in specified sequence. Tighten: 50 N.m (37 lb ft) |
| 2 | Transmission Brace |
