Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the inlet and outlet auxiliary transaxle oil cooler hoses to the auxiliary transaxle oil cooler. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .

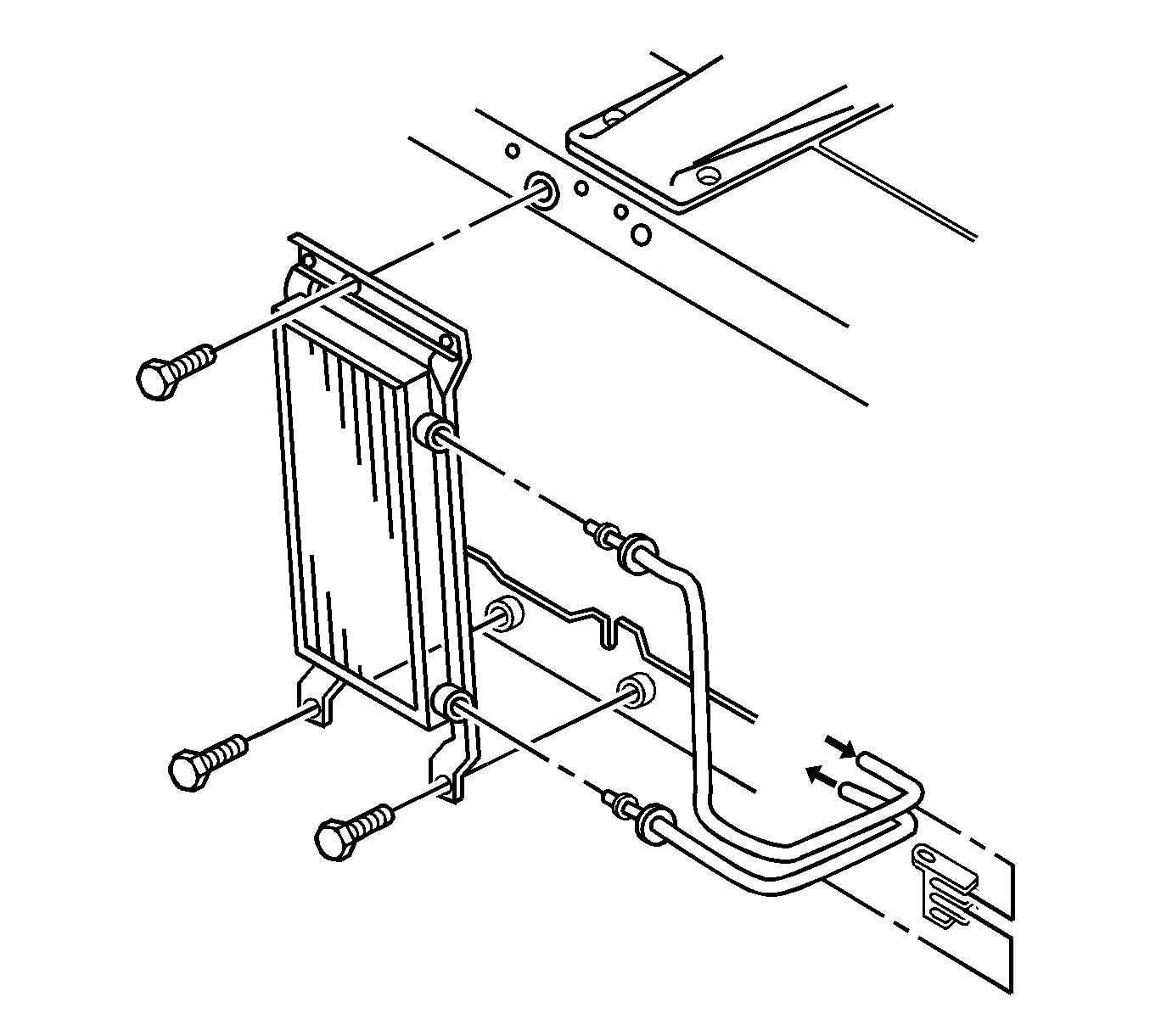

    2. Fig 1: Auxiliary Transaxle Oil Cooler
    GM948345Courtesy of GENERAL MOTORS CORP.
  2. Install the auxiliary transaxle oil cooler to the vehicle.
  3. Install the inlet and outlet auxiliary transmission oil cooler lines to the support clips.
    4. CAUTION: Refer to Fastener Caution .
  4. Install the auxiliary transaxle oil cooler bolts to the lower radiator support.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

  5. Install the lower radiator air baffle. Refer to Radiator Air Lower Baffle and Deflector Replacement .
  6. Install the auxiliary transaxle oil cooler bolt to the upper radiator support.

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

  7. Install the upper radiator air baffle. Refer to Radiator Air Upper Baffle and Deflector Replacement .
  8. Adjust the fluid level.
