Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    CAUTION: Allow sufficient clearance around the transaxle oil cooler pipes and around the hoses to prevent damage or wear which may cause fluid loss.
  1. Remove the lower radiator air baffle. Refer to Radiator Air Lower Baffle and Deflector Replacement .

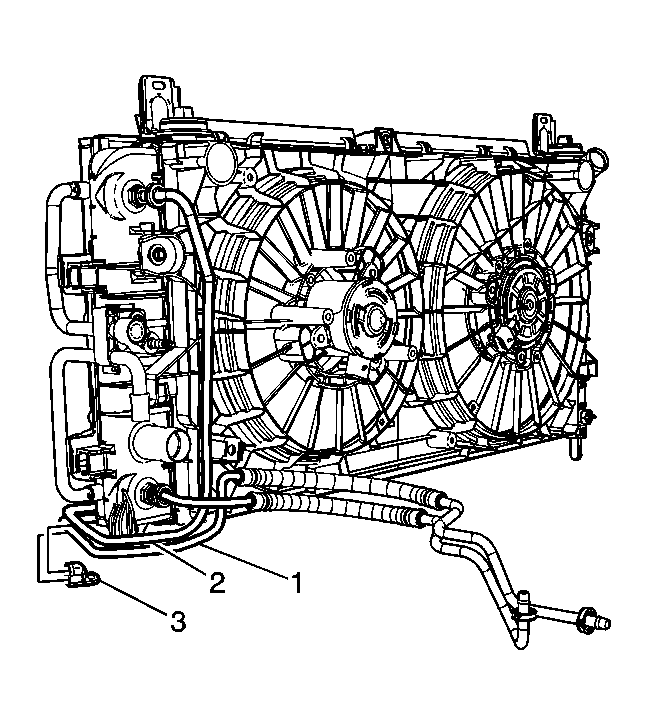

    2. Fig 1: Support Clip & Inlet And Outlet Auxiliary Transmission Oil Cooler Lines
    GM1666180Courtesy of GENERAL MOTORS CORP.
  2. Remove the auxiliary transmission oil cooler lines from the support clip (3).
  3. Remove the auxiliary transmission oil cooler lines from the fan shroud support clip.
  4. Remove the inlet and outlet auxiliary transmission oil cooler lines (1, 2) from the transmission and radiator. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
  5. Remove the inlet and outlet auxiliary transmission oil cooler lines from the auxiliary transmission oil cooler. Refer to Transmission Fluid Auxiliary Cooler Replacement .
