Oil Filter Adapter Removal

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Identifying Oil Filter Adapter & Heat Shield
    GM1645438Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil filter adapter heat shield nuts.
  2. Remove the oil filter adapter heat shield (2).
  3. Remove the oil filter adapter bolts.
  4. Remove the oil filter adapter (1) and gasket.

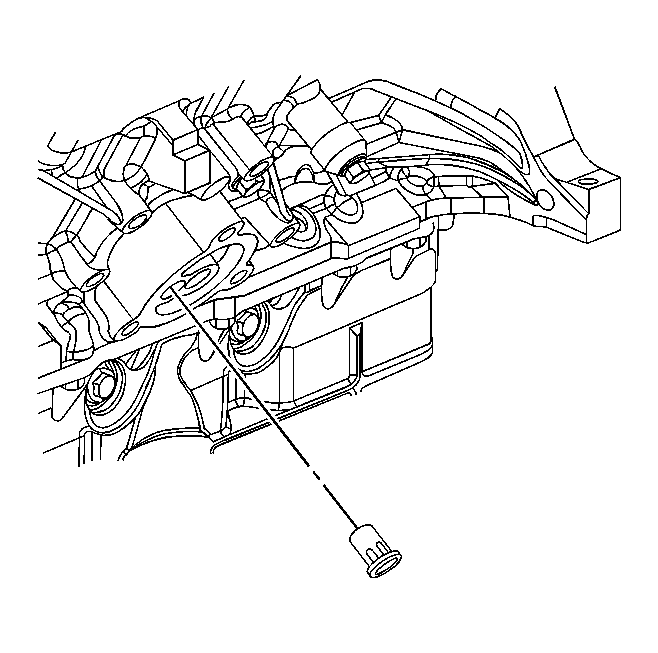

    5. Fig 2: Locating Oil Filter Bypass Hole & Bypass Valve
    GM1581864Courtesy of GENERAL MOTORS CORP.
  5. Insert a flat-bladed tool into the oil filter bypass hole and remove the oil filter bypass valve.
