Exhaust Manifold Removal - Right Side

WARNING: This page is about a different variant/trim than selected.

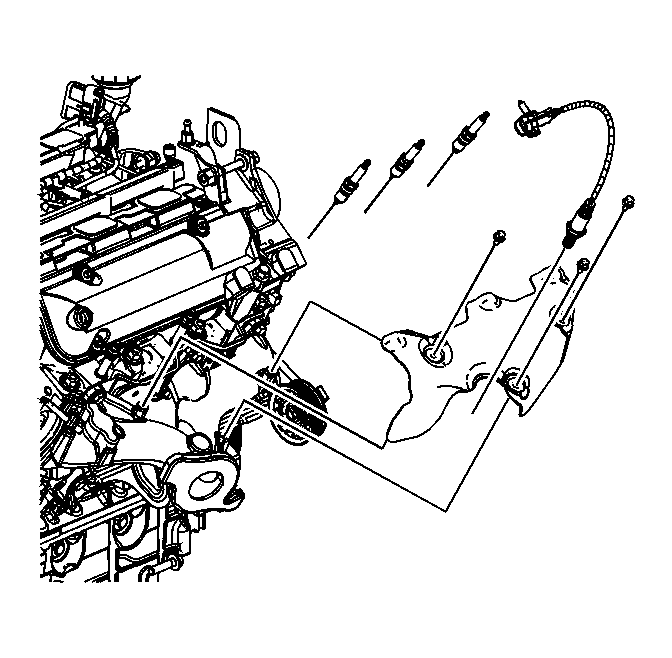

    Fig 1: Identifying Right Side Spark Plugs, HO2S & Heat Shield
    GM1645444Courtesy of GENERAL MOTORS CORP.
  1. Remove the heated oxygen sensor.
  2. Remove the spark plug wires and spark plugs.
  3. Remove the exhaust manifold heat shield bolts.
  4. Remove the exhaust manifold heat shield.

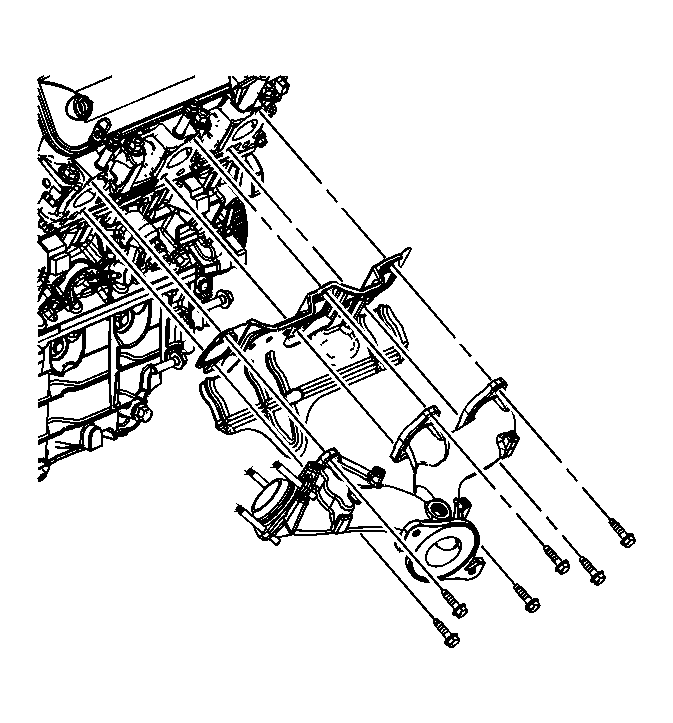

    5. Fig 2: View Of Right Exhaust Manifold & Gasket
    GM1645445Courtesy of GENERAL MOTORS CORP.
  5. Remove the exhaust manifold bolts.
  6. Remove the exhaust manifold.
  7. Remove the exhaust manifold gasket.
