Exhaust Crossover Pipe Removal

WARNING: This page is about a different variant/trim than selected.

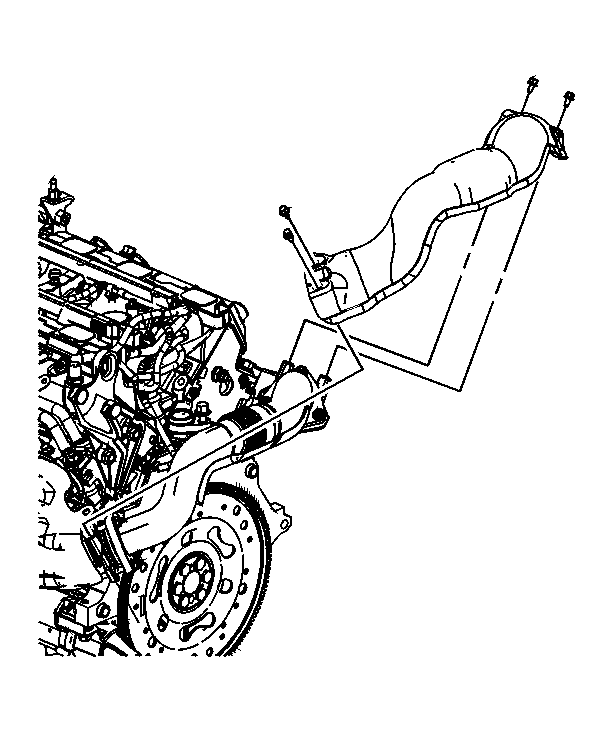

Fig 1: Identifying Exhaust Crossover Pipe Heat Shield

GM1645439

Courtesy of GENERAL MOTORS CORP.

Remove the exhaust crossover heat shield pipe bolts.
Remove the exhaust crossover heat shield.

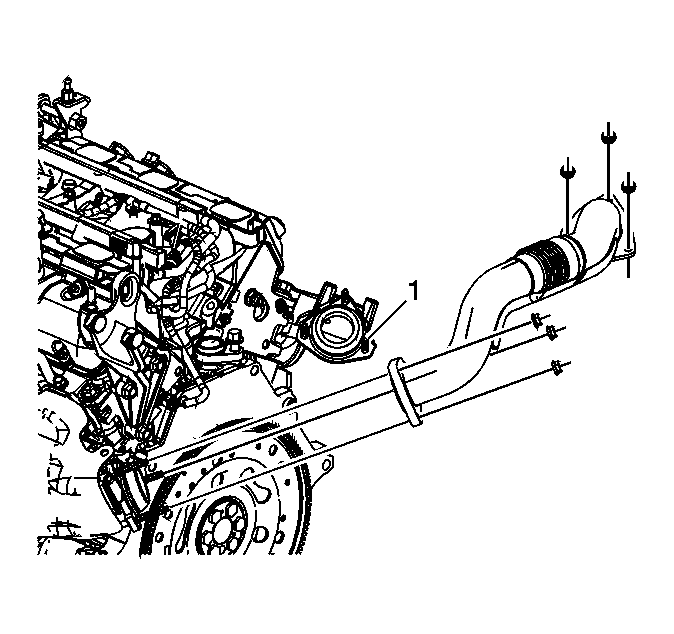

Fig 2: Identifying Exhaust Crossover Pipe & Nuts

GM1645441

Courtesy of GENERAL MOTORS CORP.

Remove the exhaust crossover pipe nuts.
Remove the exhaust crossover pipe studs (1) if necessary.
Remove the exhaust crossover pipe.
