Engine Mount Strut and Engine Lift Bracket Removal

WARNING: This page is about a different variant/trim than selected.

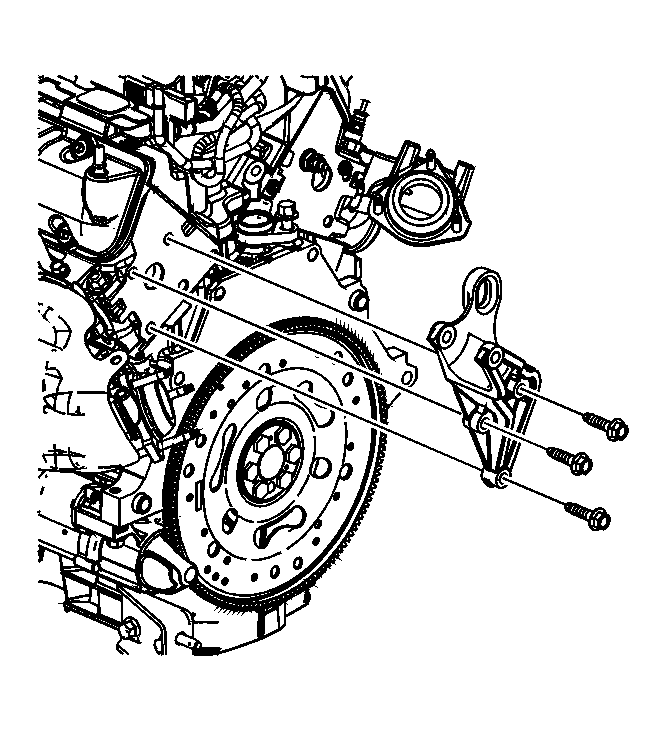

    Fig 1: Identifying Engine Mount Strut & Engine Lift Bracket Bolts
    GM1645436Courtesy of GENERAL MOTORS CORP.
  1. Remove the engine mount strut and engine lift bracket bolts.
  2. Remove the engine mount strut and engine lift bracket.
