Draining Fluids and Oil Filter Removal

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Oil Drain Plug
    GM1556785Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil pan drain plug.
  2. Drain the engine oil.

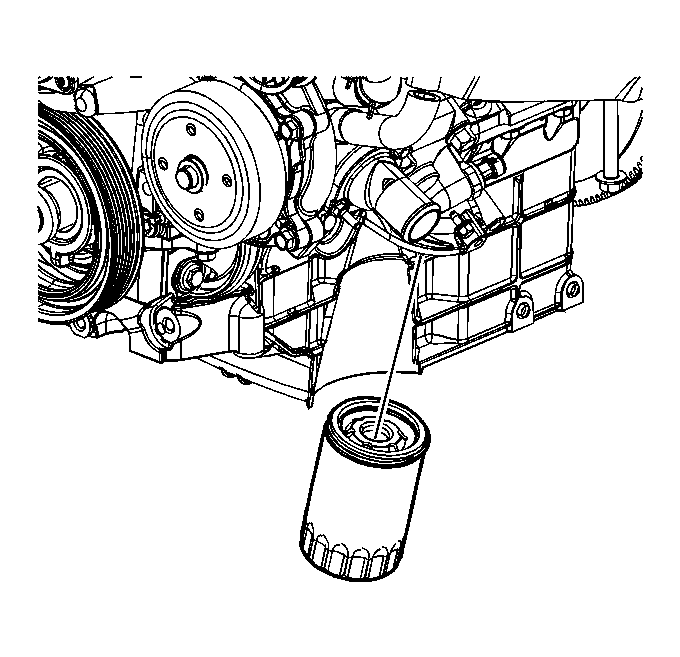

    3. Fig 2: View Of Oil Filter
    GM1556786Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil filter.

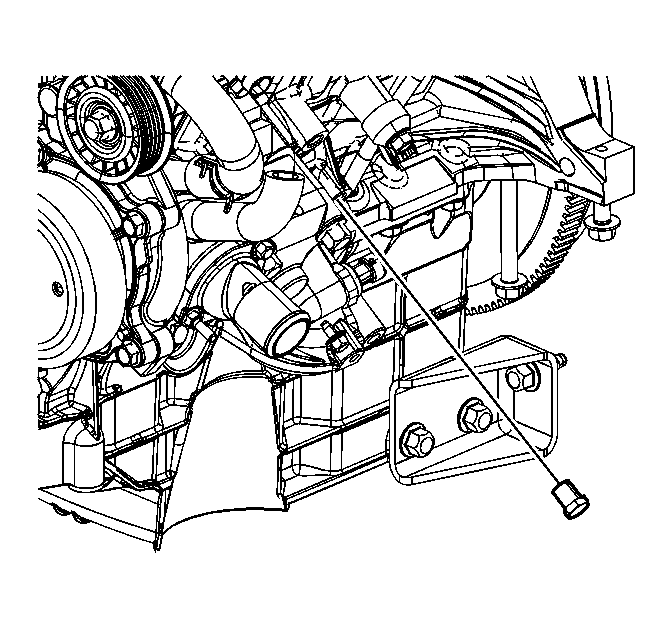

    4. Fig 3: Identifying Left Side Coolant Drain Plug
    GM1556787Courtesy of GENERAL MOTORS CORP.
  4. Remove the coolant drain plug from the left side.

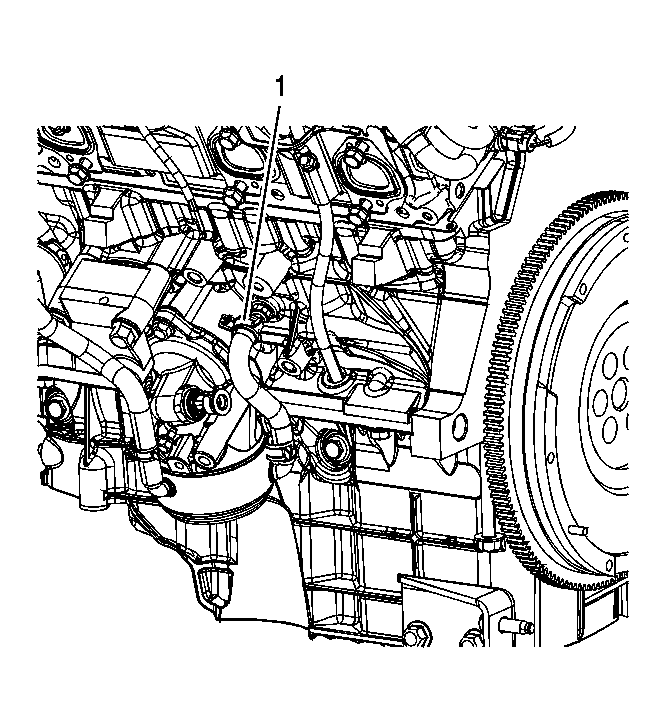

    5. Fig 4: Identifying Oil Cooler Inlet Hose
    GM1556790Courtesy of GENERAL MOTORS CORP.
  5. If equipped with an oil cooler (RPO-KC4), reposition the upper inlet hose clamp (1).
  6. Remove the oil cooler inlet hose from the block outlet.

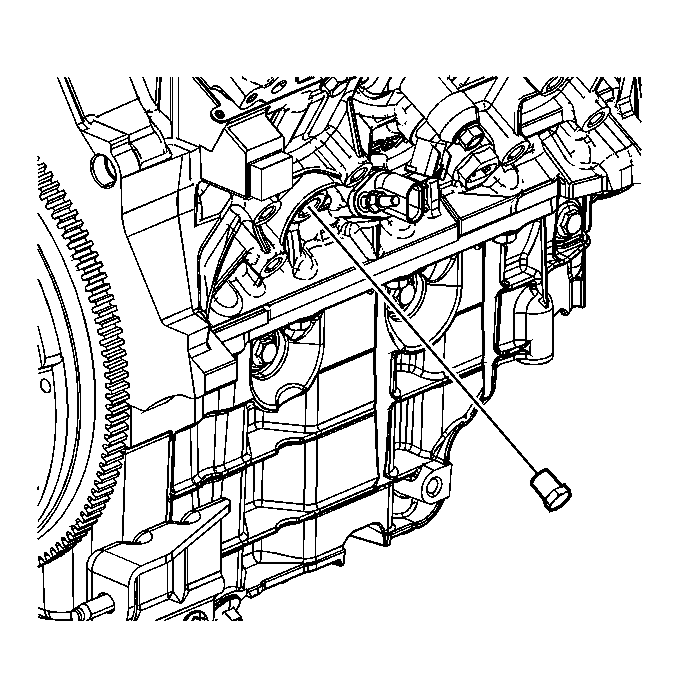

    7. Fig 5: Identifying Right Side Coolant Drain Plug
    GM1556791Courtesy of GENERAL MOTORS CORP.
  7. If not equipped with an oil cooler (RPO-KC4), remove the coolant drain plug from the right side.
  8. Drain the coolant.
