Stabilizer Shaft Replacement

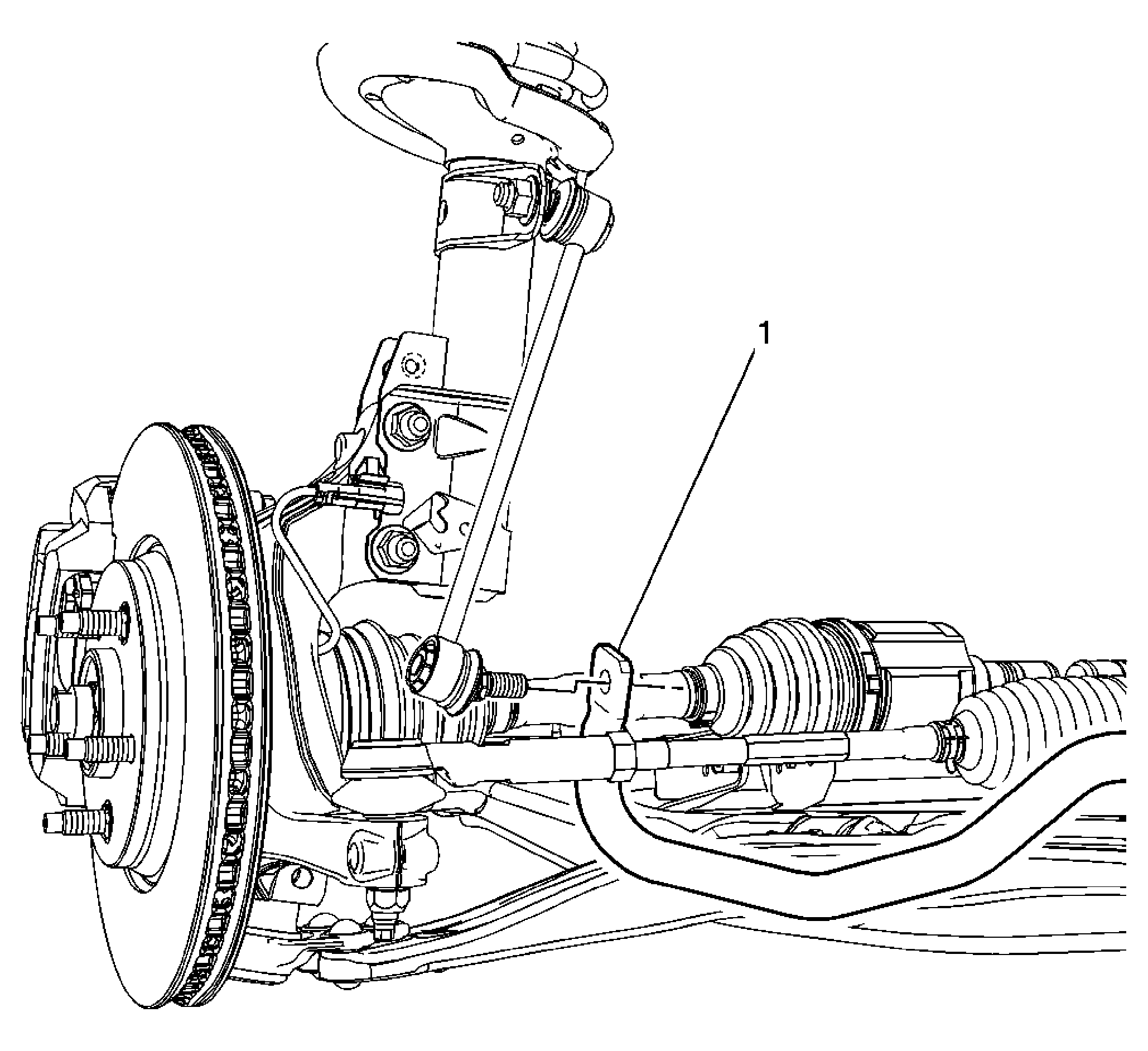

Fig 1: Stabilizer Shaft
GM2005277Courtesy of GENERAL MOTORS COMPANY
Stabilizer Shaft Replacement

Callout Component Name

Preliminary Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tires and wheels. Refer to Tire and Wheel Removal and Installation .
  3. Remove the stabilizer shaft link from the stabilizer shaft. Refer to Stabilizer Shaft Link Replacement
  4. Remove the stabilizer shaft insulators from the stabilizer shaft. Refer to Stabilizer Shaft Insulator Replacement .
1 Front Stabilizer Shaft
TIP:  Remove the stabilizer shaft from the right side of the vehicle.
