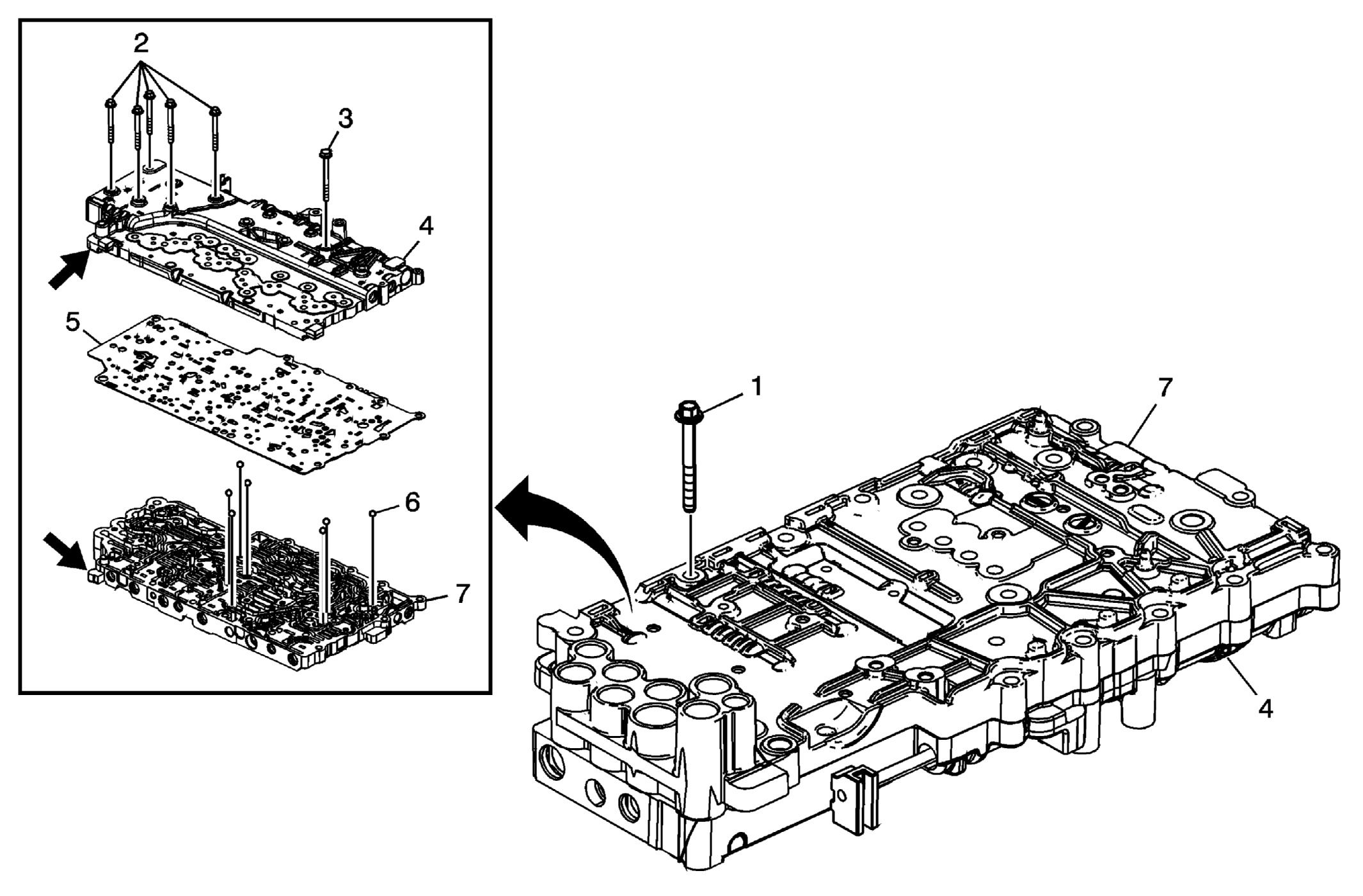

Upper and Lower Valve Bodies Disassemble
| Callout | Component Name |
|---|---|
| 1 | Bolt M5 x 36 (Qty: 12) |
| 2 | Bolt M5 x 45 (Qty: 5) |
| 3 | Bolt M5 x 55 |
| 4 | Control Valve Lower Body Assembly Tip:
|
| 5 | Control Valve Body Spacer (w/Gasket) Plate Assembly
CAUTION:
Do not use the old spacer plate. Install a NEW spacer plate. Reusing an old spacer plate may cause internal transmission leaks and transmission damage.
|
| 6 | Control Valve Body Ball Check Valve (Qty: 7) Tip: Note the position of the ball check valves. |
| 7 | Control Valve Upper Body Assembly Tip: Refer to Control Valve Upper Body Assembly Cleaning and Inspection . |
