Wheelhouse Extension Replacement

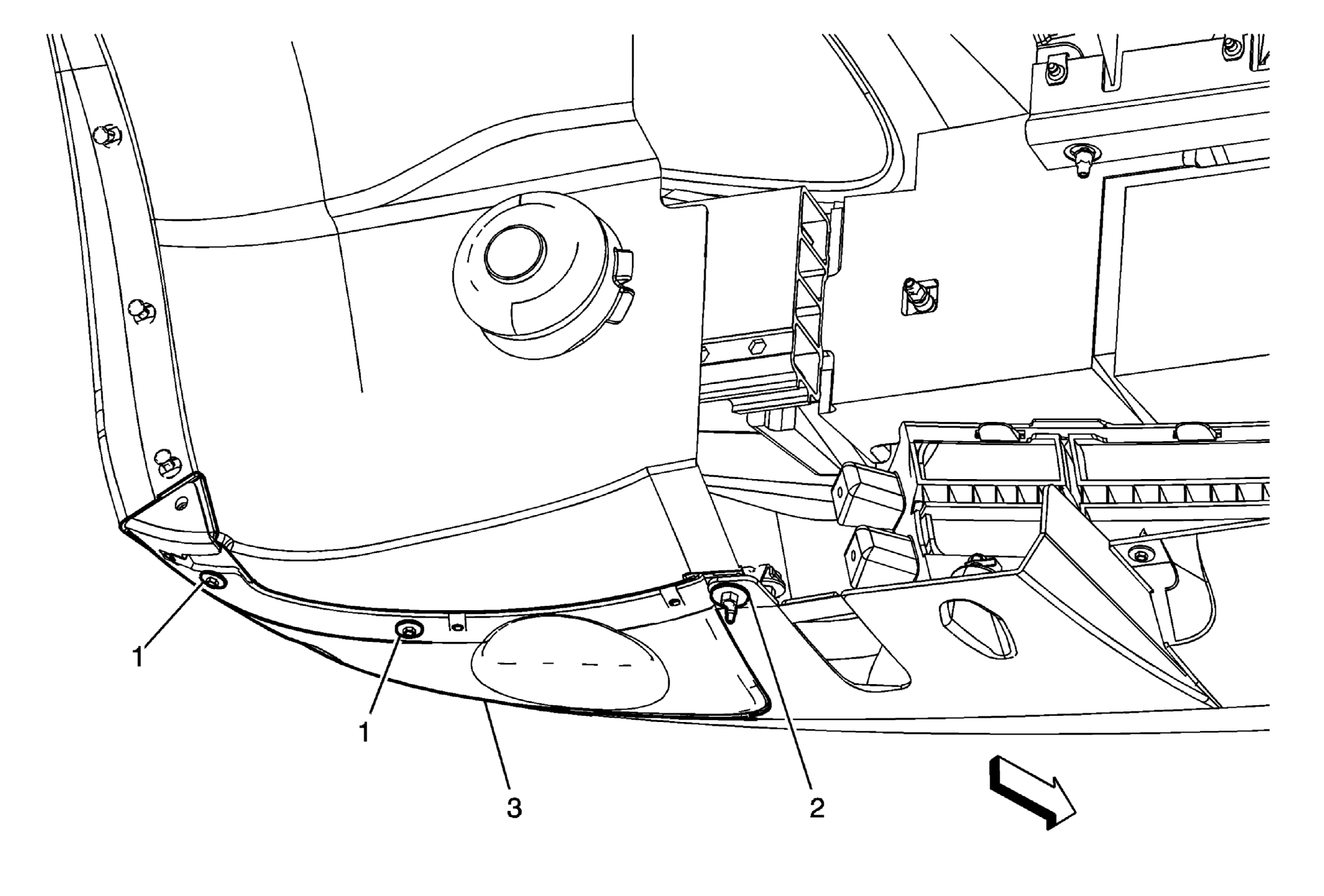

Fig 1: Wheelhouse Extension

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the overlapping plastic retainer from the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Front Liner) or Front Wheelhouse Liner Replacement (Rear Liner) . Remove the appropriate lower valence panel piece. Refer to Front Bumper Valance Panel Replacement (ZR1) or Front Bumper Valance Panel Replacement (Outer) or Front Bumper Valance Panel Replacement (Z06) .
1	Wheelhouse Extension Panel Screws (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Front Fascia Lower Nut (Qty: 1) Tighten: 7 N.m (62 lb in)
3	Wheelhouse Extension Panel
