Front Wheelhouse Liner Replacement (Front Liner)

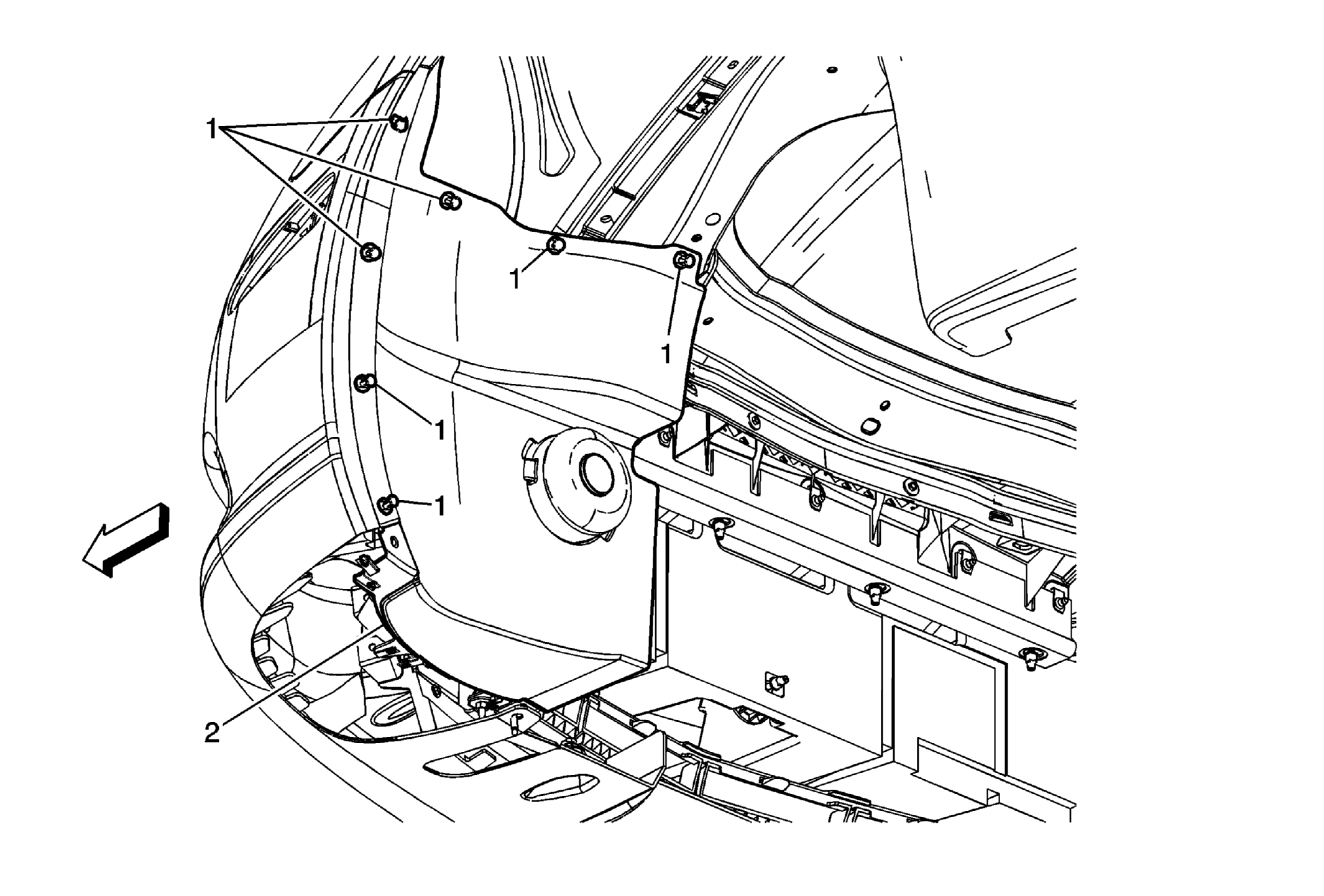

Fig 1: Front Wheelhouse Liner (Front Liner)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the appropriate front wheel and tire assembly. Refer to Tire and Wheel Removal and Installation . Remove the appropriate wheelhouse extension. Refer to Wheelhouse Extension Replacement .
1	Front Wheelhouse (Front Liner) Liner Plastic Retainer (Qty: 7)
2	Front Wheelhouse (Front Liner) Liner

Callout

Component Name

Preliminary Procedures

Remove the appropriate front wheel and tire assembly. Refer to Tire and Wheel Removal and Installation .
Remove the appropriate wheelhouse extension. Refer to Wheelhouse Extension Replacement .

Front Wheelhouse (Front Liner) Liner Plastic Retainer (Qty: 7)

Front Wheelhouse (Front Liner) Liner
