Front Fender Replacement

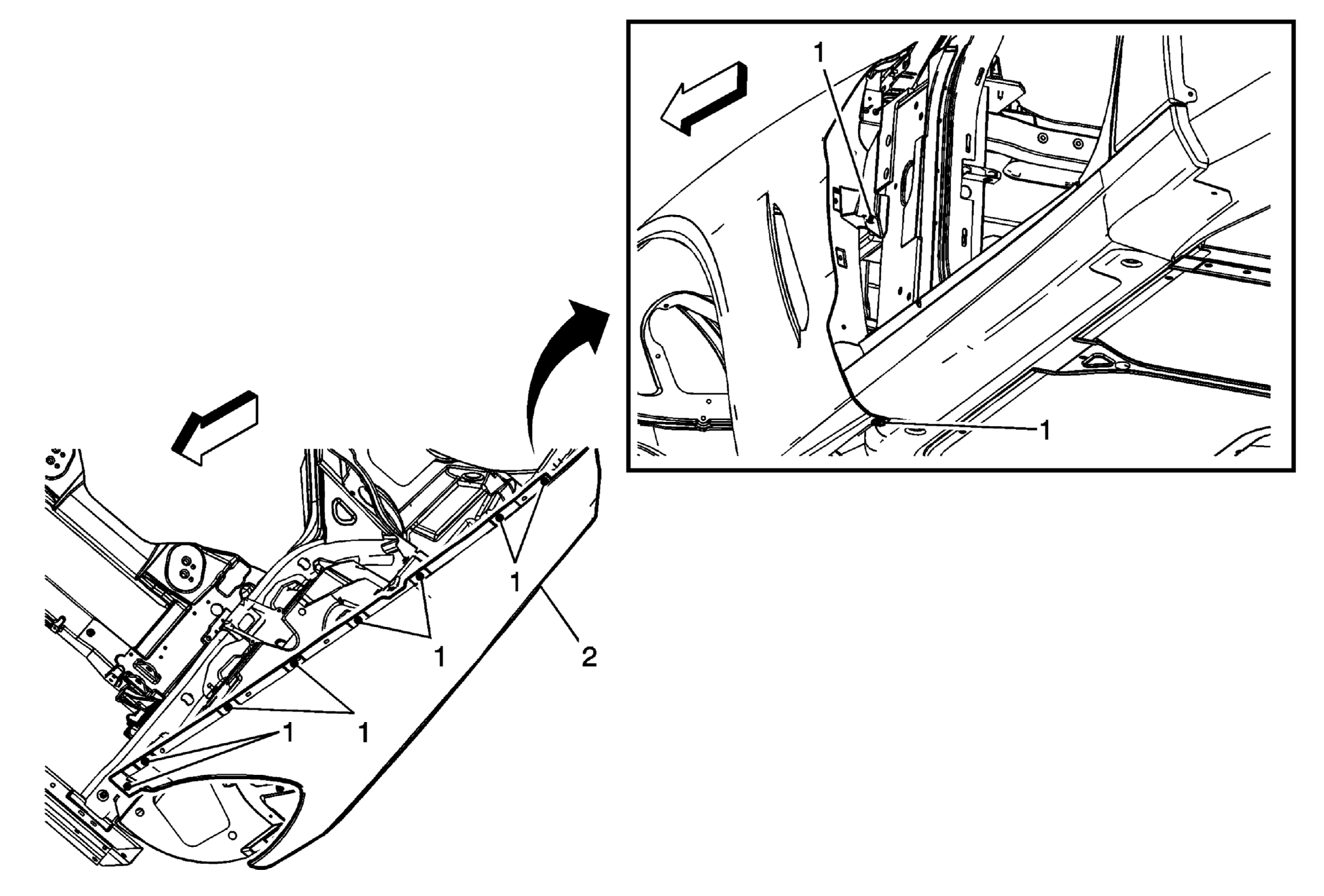

Fig 1: Front Fender

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the front headlamp assembly. Refer to High Intensity Discharge Headlamp Replacement . Remove the air inlet grille. Refer to Air Inlet Grille Panel Replacement .
1	Fender Bolt (Qty: 10) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Fender Assembly Tip: Transfer any brackets or harness that might be attached to the fender assembly.

Callout

Component Name

Preliminary Procedures

Remove the front headlamp assembly. Refer to High Intensity Discharge Headlamp Replacement .
Remove the air inlet grille. Refer to Air Inlet Grille Panel Replacement .

Fender Bolt (Qty: 10)

CAUTION: Refer to Fastener Caution .

Tighten: 2 N.m (18 lb in)

Fender Assembly
Tip: Transfer any brackets or harness that might be attached to the fender assembly.
