Air Inlet Grille Panel Replacement

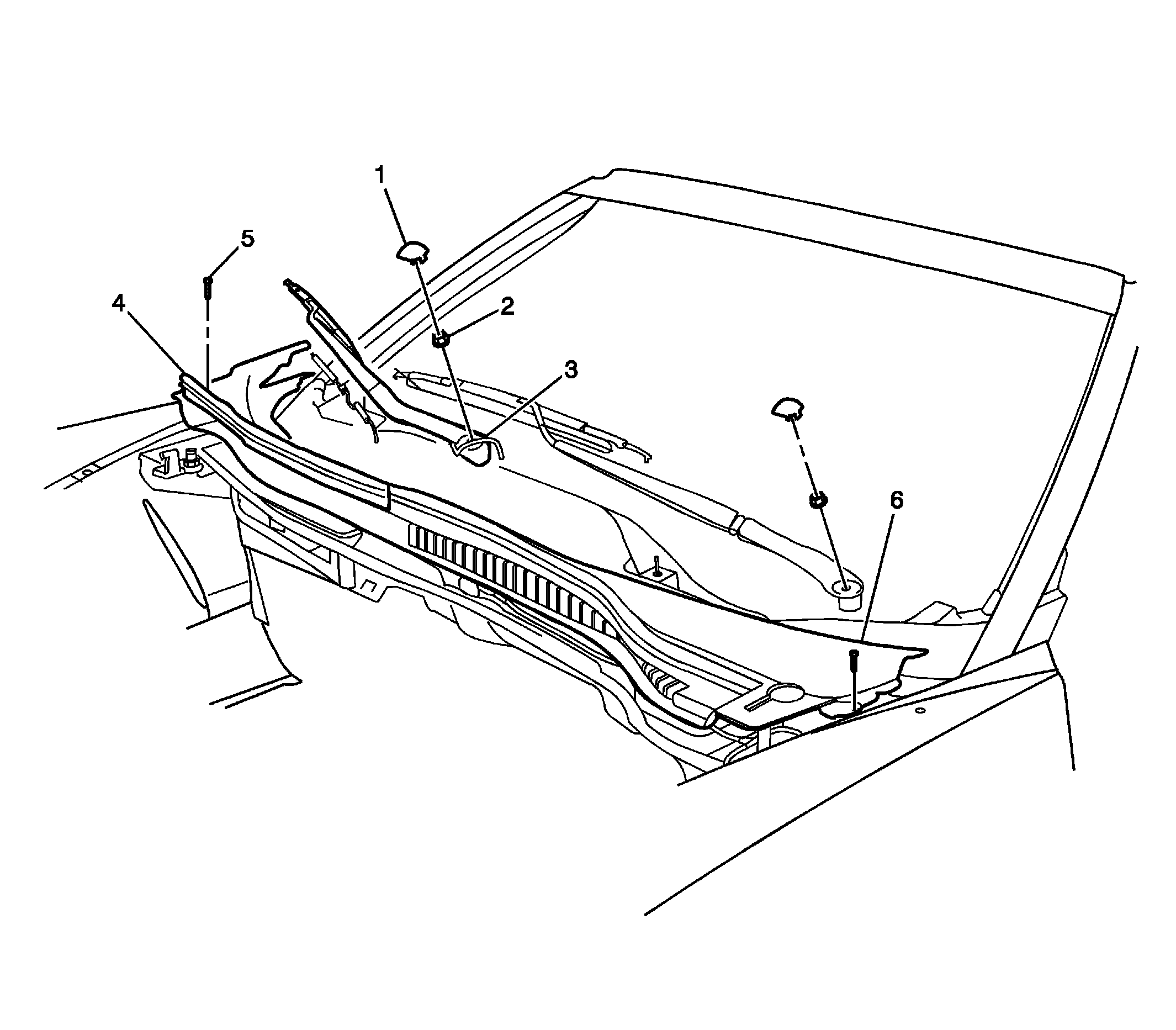

| Callout | Component Name |
|---|---|
| 1 | Wiper Arm Cap (Qty: 2) |
| 2 | Wiper Arm Nut (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 25 N.m (18 lb ft) |
| 3 | Wiper Arm Assembly Wiper Arm Tip: Slightly rock the wiper arm back and forth in order to remove the wiper arm from the wiper motor pivot shaft. |
| 4 | Hood Seal |
| 5 | Air Inlet Grille Panel Screw (Qty: 2) Tighten: 3 N.m (27 lb in) |
| 6 | Air Inlet Grille Panel Assembly |
