Instrument Panel Trim Plate Applique Replacement

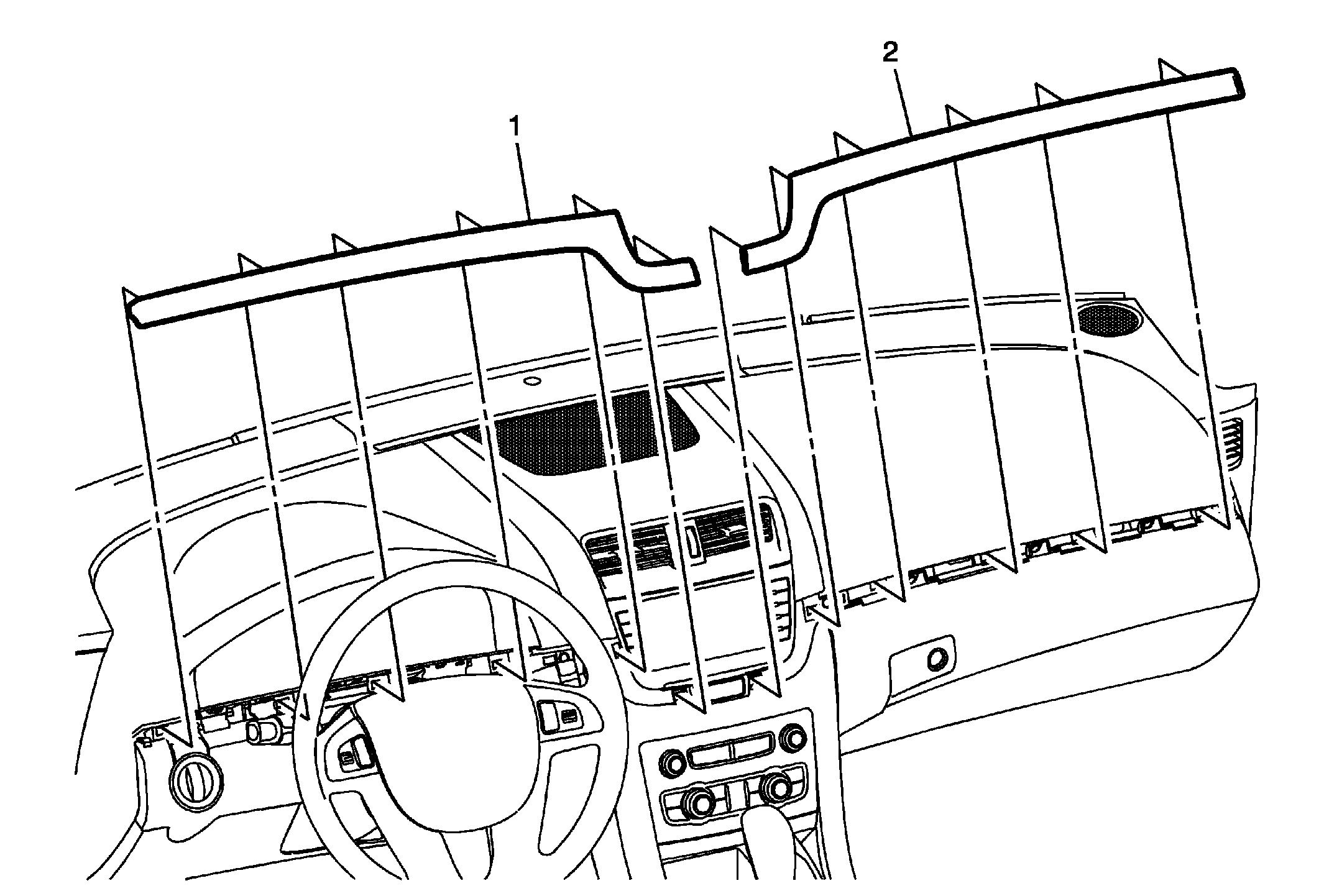

Fig 1: Instrument Panel Trim Plate Applique

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Trim Plate Applique- Left Procedure Position the steering wheel to its lowest possible position. Use a flat bladed plastic trim tool to release the retainer clips securing the applique to the instrument panel assembly.
2	Instrument Panel Trim Plate Applique- Right Procedure Use a flat bladed plastic trim tool to release the retainer clips securing the applique to the instrument panel assembly.

Callout

Component Name

Instrument Panel Trim Plate Applique- Left

Procedure

Position the steering wheel to its lowest possible position.
Use a flat bladed plastic trim tool to release the retainer clips securing the applique to the instrument panel assembly.

Instrument Panel Trim Plate Applique- Right
Procedure
Use a flat bladed plastic trim tool to release the retainer clips securing the applique to the instrument panel assembly.
