Instrument Panel Cluster Trim Plate Replacement

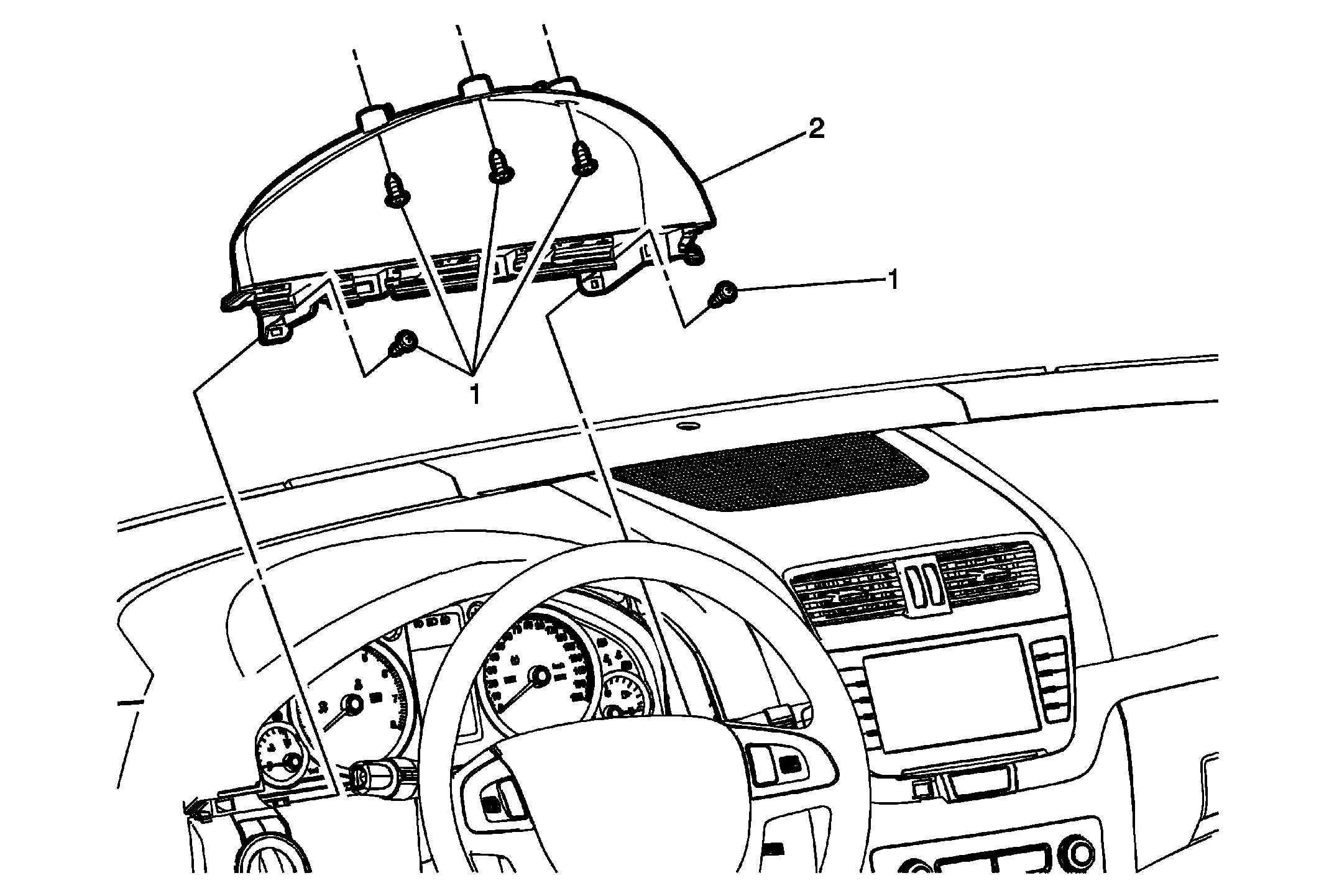

Fig 1: Instrument Panel Cluster Trim Plate

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Position the steering wheel to its lowest adjustable position. Remove the left instrument panel trim plate applique. Refer to Instrument Panel Trim Plate Applique Replacement . Remove the upper steering column trim cover. Refer to Steering Column Trim Cover Replacement
1	Instrument Panel Cluster Trim Plate Fasteners (Qty: 5) CAUTION: Refer to Fastener Caution .
2	Instrument Panel Cluster Trim Plate Procedure Flex the top of the cluster trim plate enough to remove it from the instrument panel assembly.

Callout

Component Name

Preliminary Procedure

Position the steering wheel to its lowest adjustable position.
Remove the left instrument panel trim plate applique. Refer to Instrument Panel Trim Plate Applique Replacement .
Remove the upper steering column trim cover. Refer to Steering Column Trim Cover Replacement

Instrument Panel Cluster Trim Plate Fasteners (Qty: 5)

CAUTION:

Instrument Panel Cluster Trim Plate
Procedure
Flex the top of the cluster trim plate enough to remove it from the instrument panel assembly.
