120-Volt Accessory Power Receptacle Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front floor console rear trim panel. Refer to Front Floor Console Rear Trim Panel Replacement . |
|

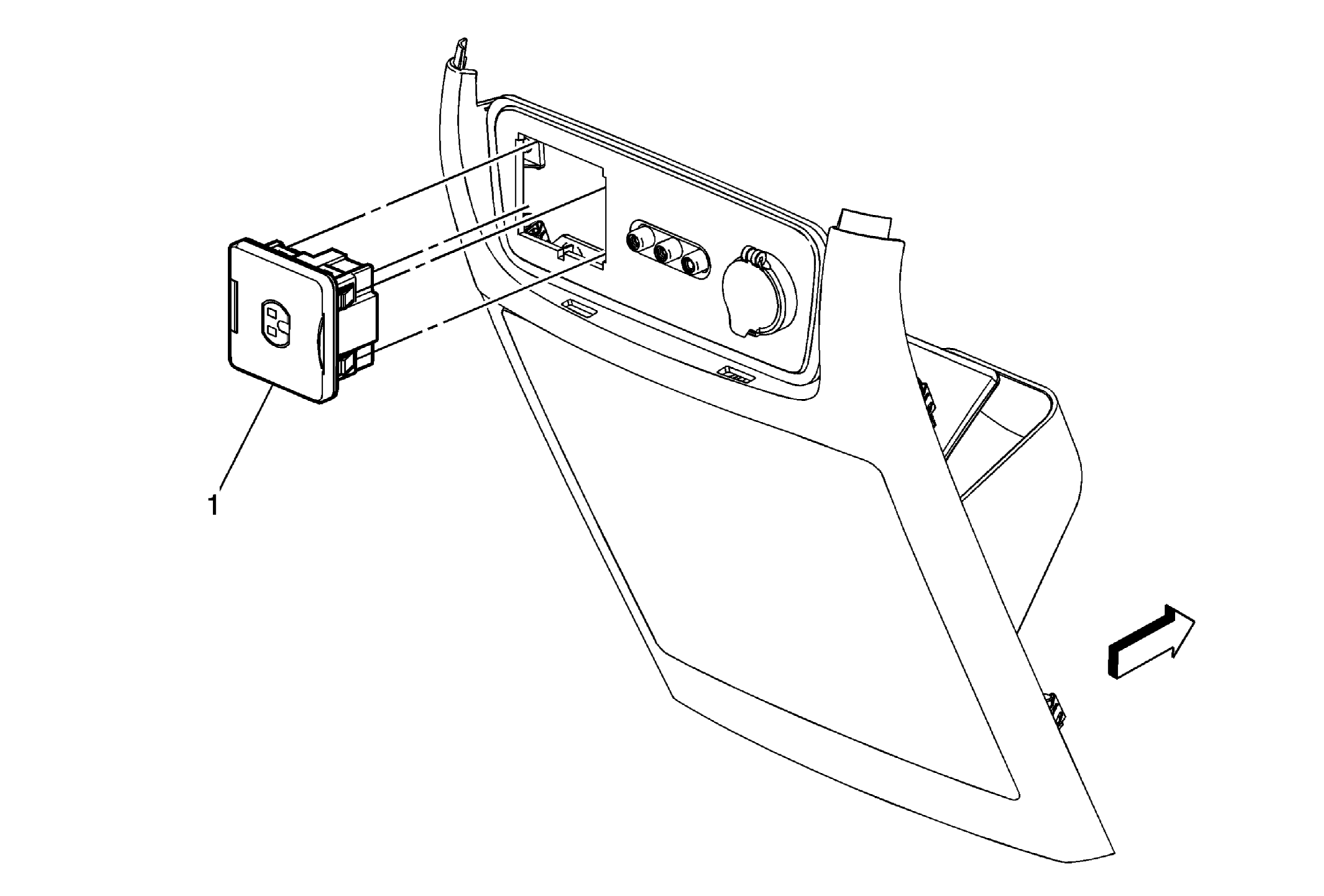

| 1 | Accessory Power Receptacle Assembly Procedure Push in the 4 tabs to release the accessory power receptacle from the rear console trim plate. |
