Front Floor Console Rear Trim Panel Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

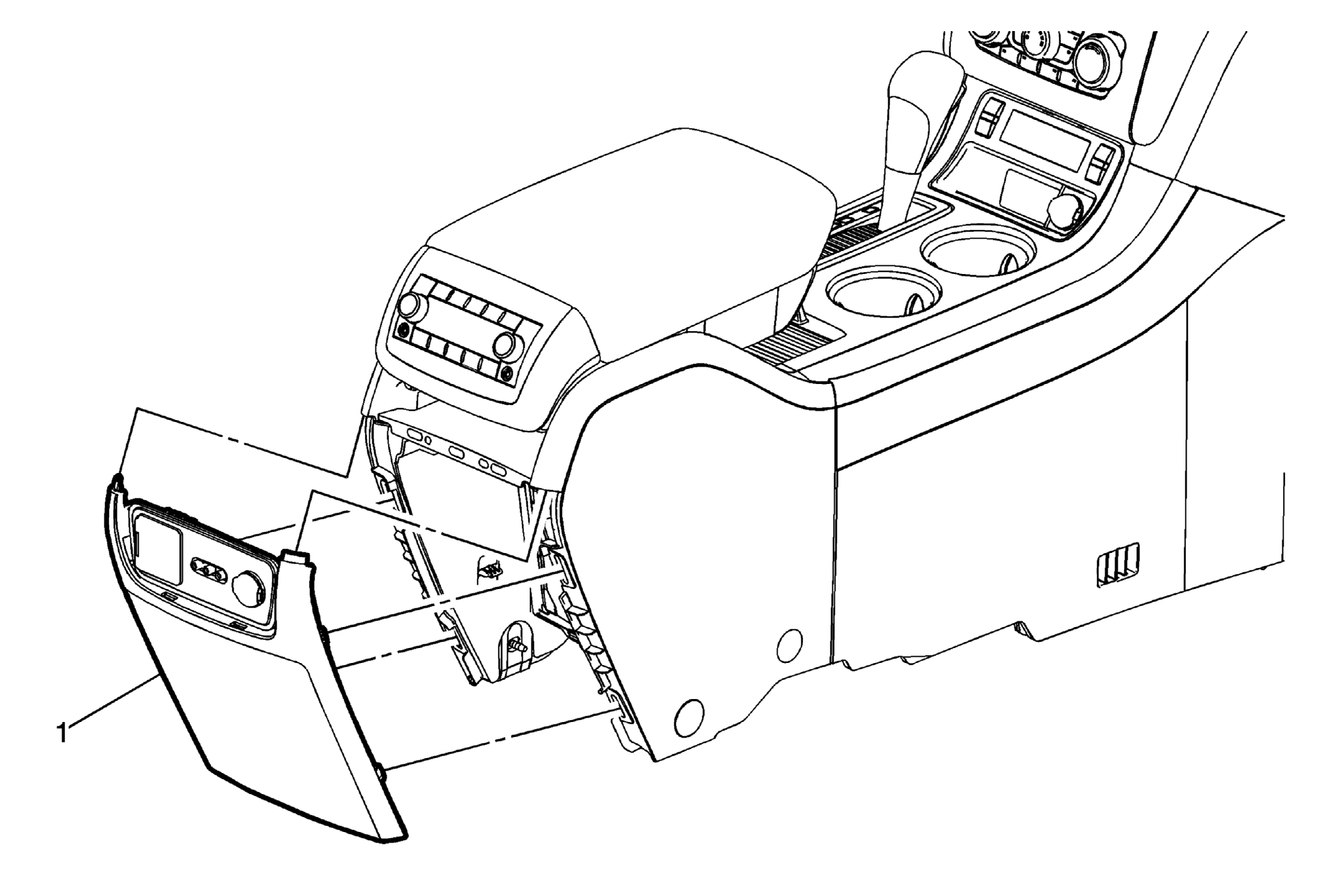

Fig 1: Front Floor Console Rear Trim Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the floor console accessory trim plate applique. Refer to Front Floor Console Accessory Trim Plate Applique Replacement .
1	Front Floor Console Rear Trim Panel Procedure Disconnect the electrical connections. When replacing the front floor console rear trim panel, transfer all necessary components.

Callout

Component Name

Preliminary Procedure
Remove the floor console accessory trim plate applique. Refer to Front Floor Console Accessory Trim Plate Applique Replacement .

Front Floor Console Rear Trim Panel

Procedure

Disconnect the electrical connections.
When replacing the front floor console rear trim panel, transfer all necessary components.
