Removal Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
  2. Remove as much power steering fluid from the remote power steering fluid reservoir as possible.
  3. Place drain pans under the vehicle as needed.
    4. Fig 1: View Of Power Steering Fluid Reservoir Outlet Hose & Clamp
    GM1856009Courtesy of GENERAL MOTORS COMPANY
  4. Disconnect the power steering fluid reservoir outlet hose (1) from the remote power steering fluid reservoir.

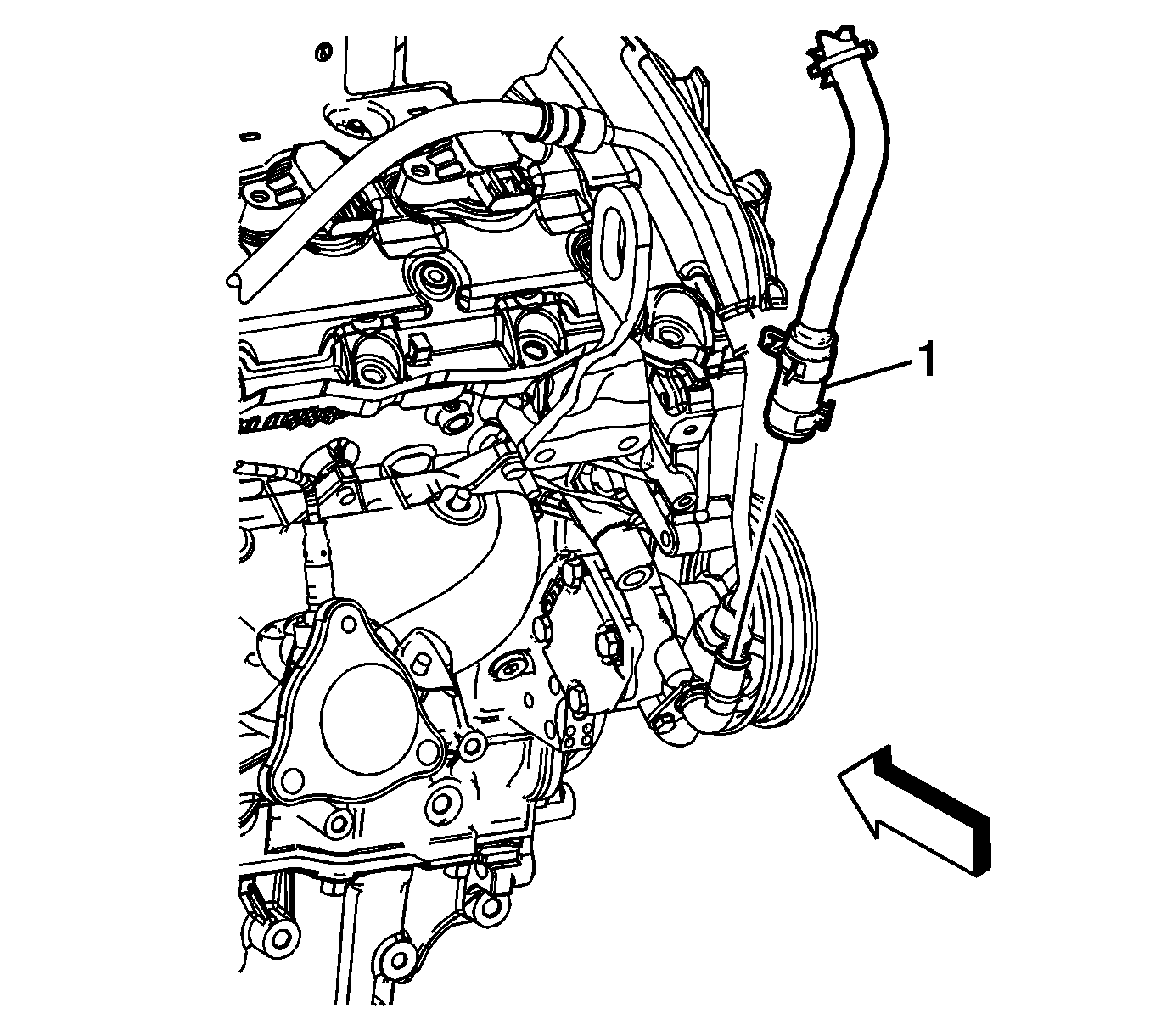

    5. Fig 2: Power Steering Fluid Reservoir Outlet Hose
    GM1856746Courtesy of GENERAL MOTORS COMPANY
  5. Disconnect the power steering fluid reservoir outlet hose (1) from the power steering pump.
    6. NOTE:

    Disconnect any clips as needed before attempting removal.

  6. Remove the power steering fluid reservoir outlet hose from the vehicle.
