Fuel Injector Sight Shield Replacement

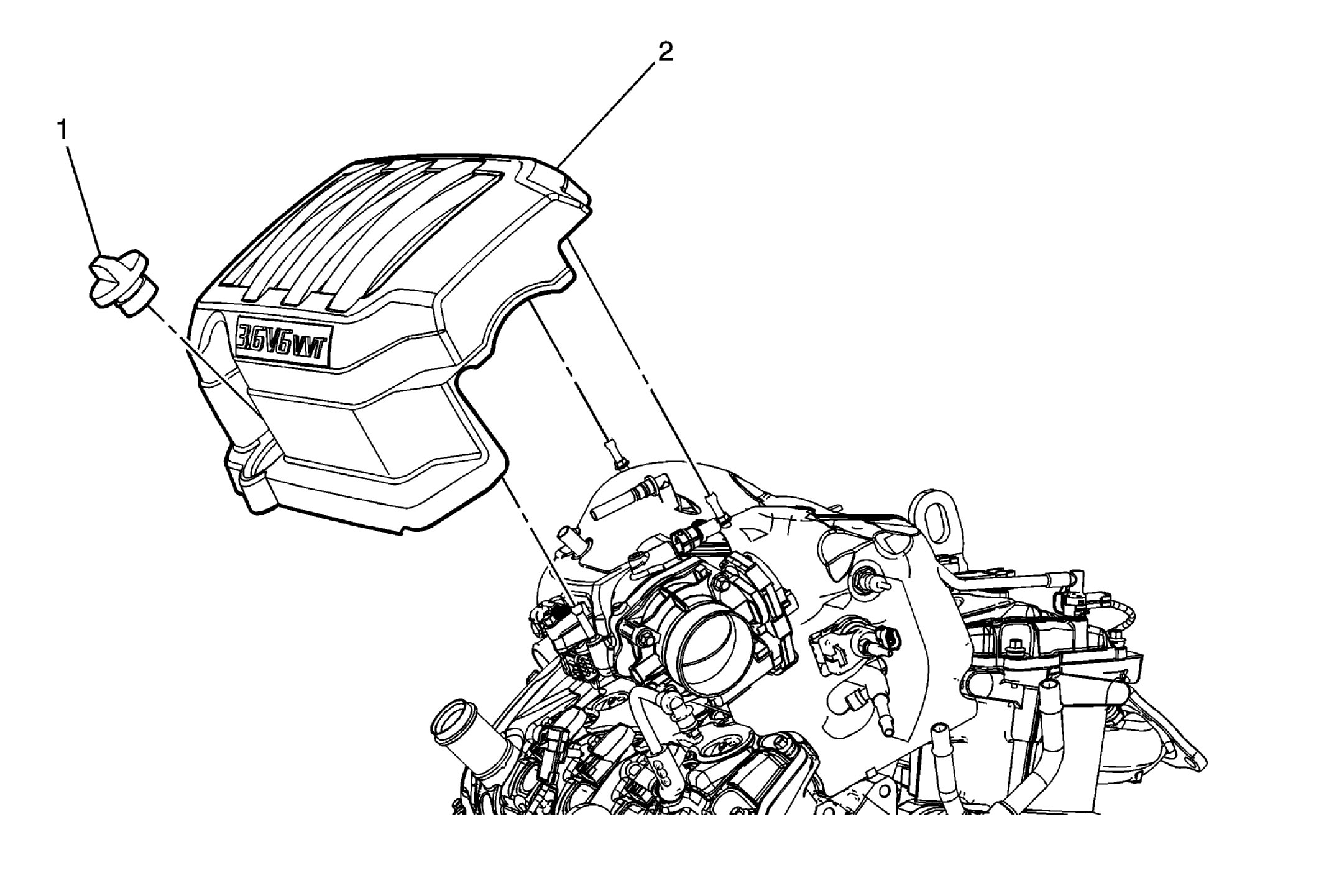

Fig 1: View Of Fuel Injector Sight Shield
GM1857736Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Oil Fill Cap
2 Fuel Injector Sight Shield
Procedure
Lift upward to remove sight shield from ballstuds.
