Rear Window Wiper Motor Replacement (Acadia)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

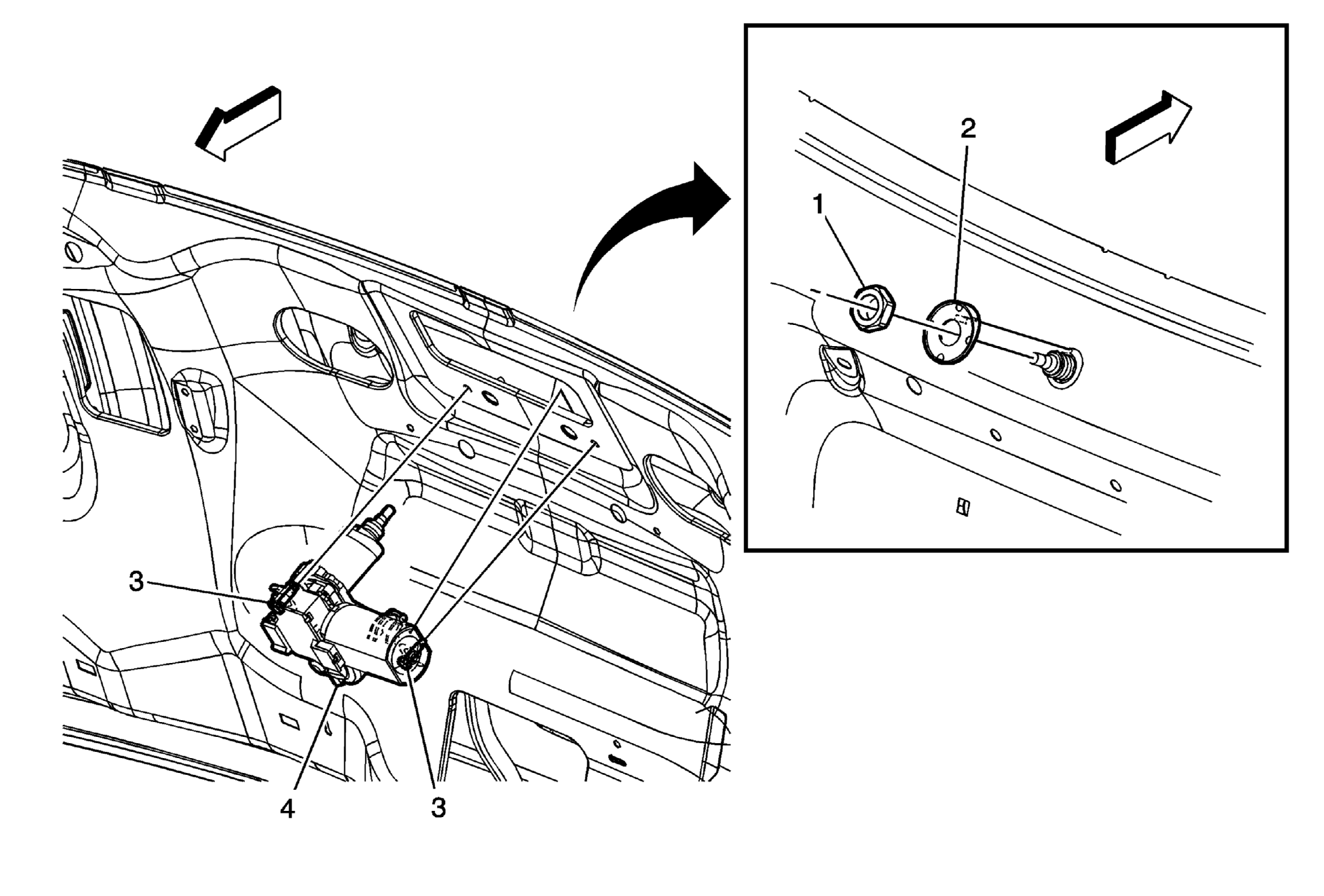

Fig 1: Rear Window Wiper Motor (Acadia)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear liftgate interior trim panel. Refer to Liftgate Trim Panel Replacement (Acadia) . Remove the rear wiper arm assembly. Refer to Rear Window Wiper Arm Replacement (Acadia) . Disconnect the electrical connector.
1	Rear Window Wiper Pivot Shaft Nut CAUTION: Refer to Fastener Caution . Tighten 19 N.m (14 lb ft)
2	Rear Window Wiper Pivot Shaft Gasket Procedure Align the tab on the gasket to the slot on the rear wiper motor upon assembly.
3	Rear Window Wiper Motor Bolt (Qty: 2) Tighten 10 N.m (89 lb in)
4	Rear Window Wiper Motor Assembly
