Rear Window Wiper Blade Replacement (Acadia)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

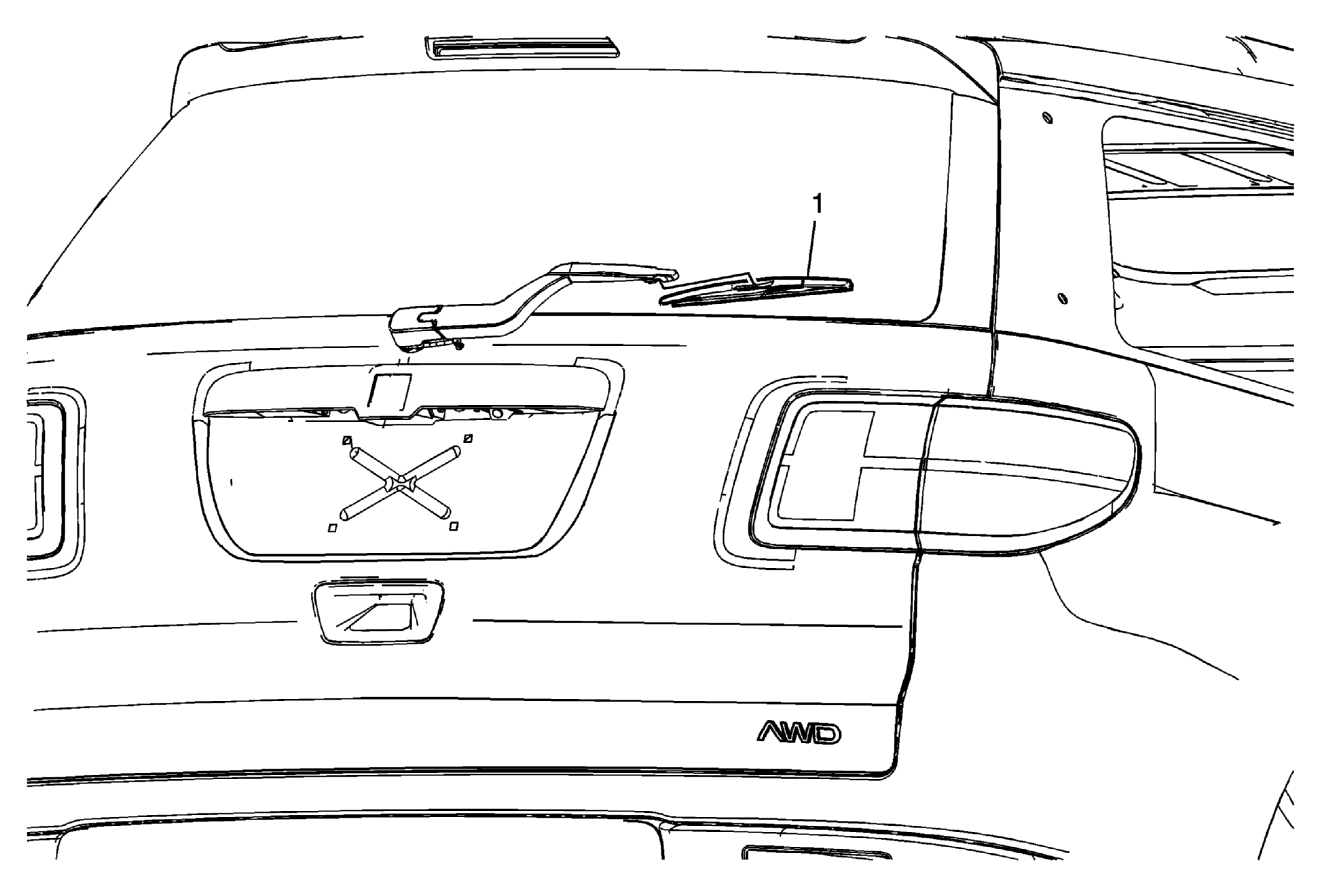

Fig 1: Rear Window Wiper Blade (Acadia)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear wiper arm from the vehicle. Refer to Rear Window Wiper Arm Replacement (Acadia) . Hold the arm stationary and rotate the blade in a vertical position. Additional effort is required to push and install the wiper blade on and off from the wiper arm.
1	Rear Window Wiper Blade Assembly TIP: The wiper blade is fully secured to the wiper arm when an audible click noise is heard.

Callout

Component Name

Preliminary Procedures

Remove the rear wiper arm from the vehicle. Refer to Rear Window Wiper Arm Replacement (Acadia) .
Hold the arm stationary and rotate the blade in a vertical position.
Additional effort is required to push and install the wiper blade on and off from the wiper arm.

Rear Window Wiper Blade Assembly
TIP: The wiper blade is fully secured to the wiper arm when an audible click noise is heard.
