Rear Window Washer Nozzle Replacement (Enclave)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

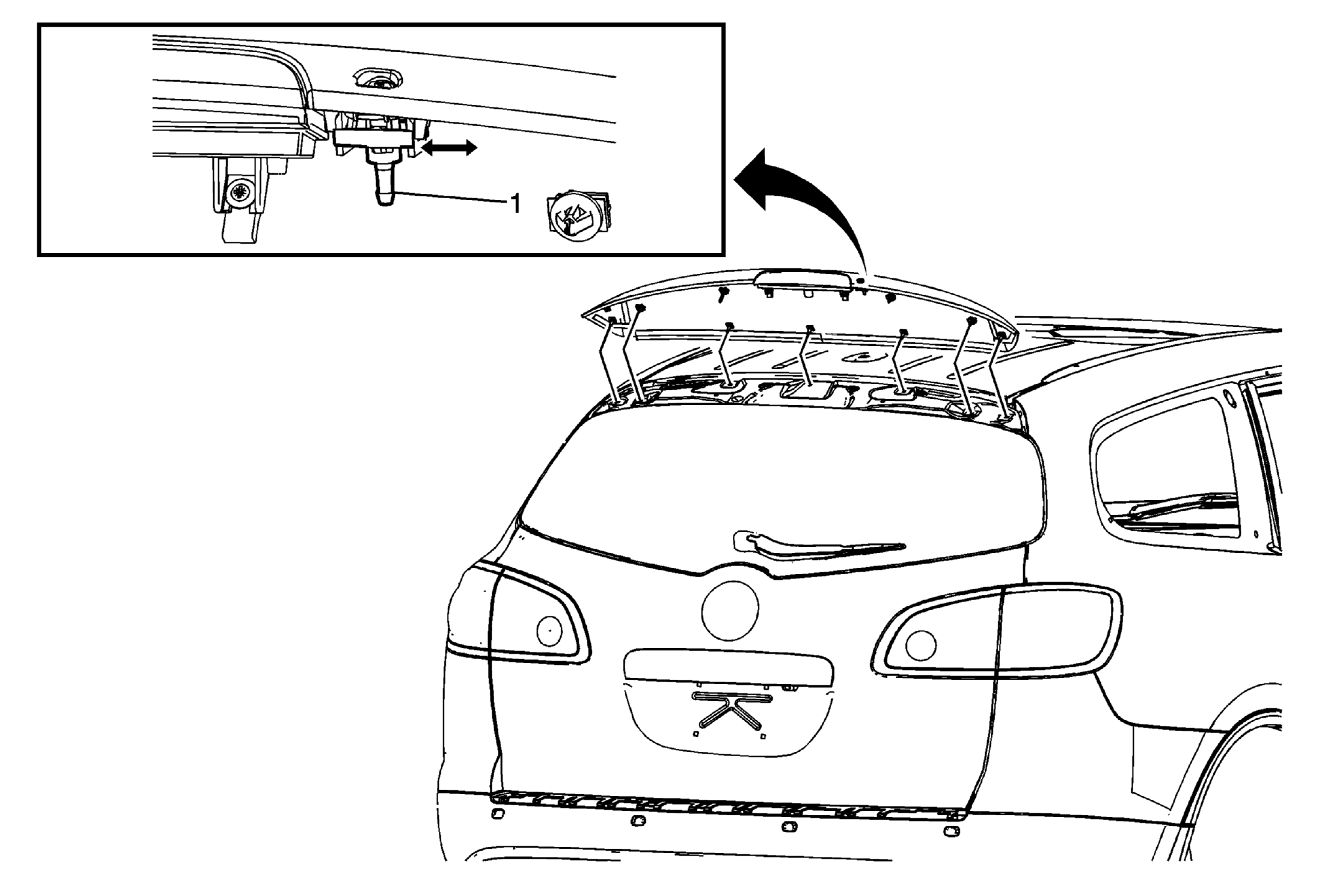

Fig 1: Rear Window Washer Nozzle (Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear spoiler. Refer to Rear Spoiler Replacement (Acadia/Enclave) .
1	Rear Window Washer Nozzle Procedure Squeeze the outer tabs on the nozzle in order to remove the nozzle from the rear spoiler. Disconnect the rear window washer nozzle hose from thew nozzle. Remove the rear window washer nozzle.

Callout

Component Name

Preliminary Procedure
Remove the rear spoiler. Refer to Rear Spoiler Replacement (Acadia/Enclave) .

Rear Window Washer Nozzle

Procedure

Squeeze the outer tabs on the nozzle in order to remove the nozzle from the rear spoiler.
Disconnect the rear window washer nozzle hose from thew nozzle.
Remove the rear window washer nozzle.
