Rear Spoiler Replacement (Acadia/Enclave)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

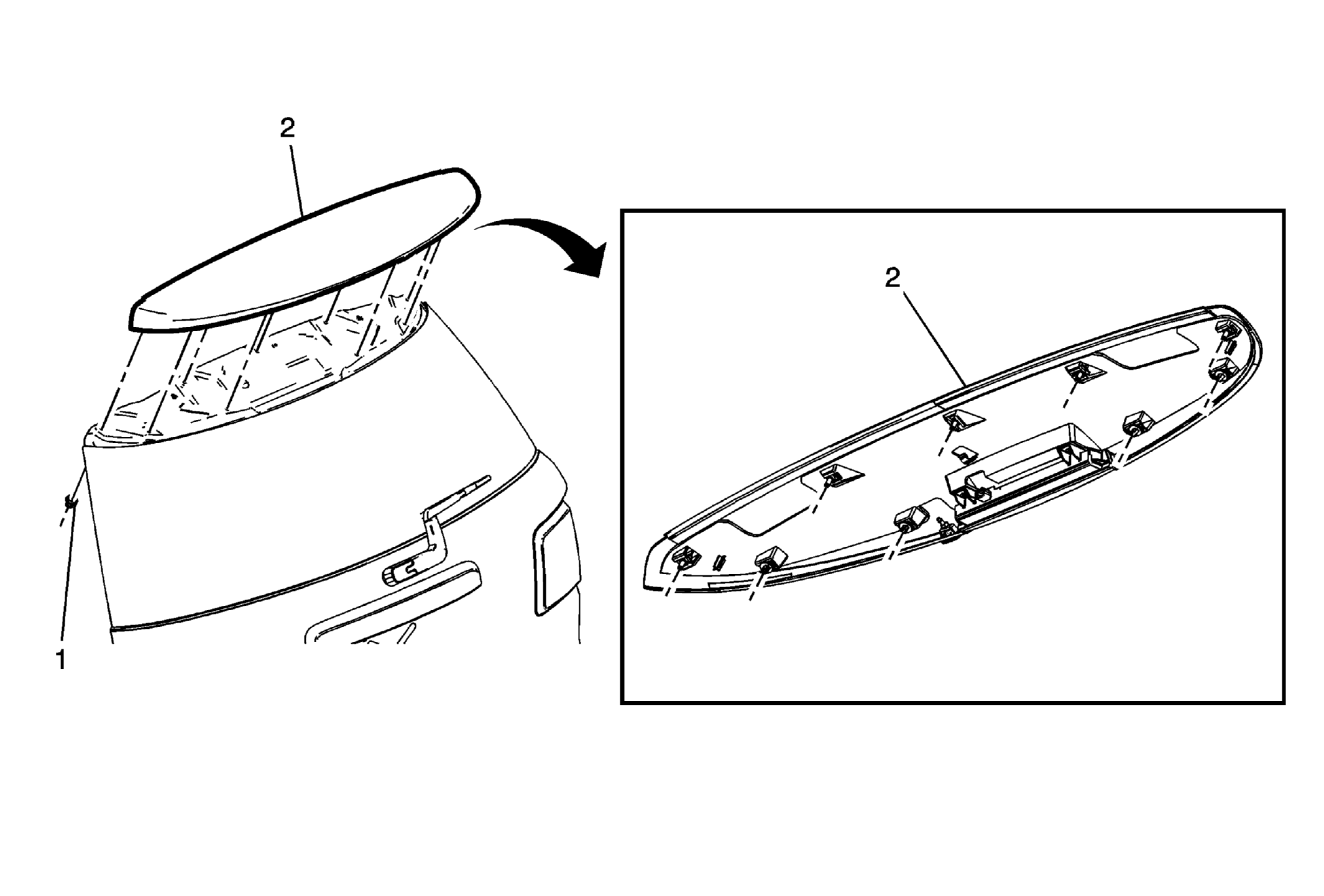

Fig 1: Rear Spoiler (Acadia/Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Procedure Remove the liftgate garnish molding. Refer to Liftgate Garnish Molding Replacement (TB5)Liftgate Garnish Molding Replacement (TB4)
1	Rear End Spoiler Nut (Qty: 5) CAUTION: Refer to Fastener Caution .
2	Rear End Spoiler Procedure Using a trim-type release tool disengage the 4 rear end spoiler retainers. Remove the grommet from the liftgate outer panel. Disconnect the electrical harness connector. Remove the rear end spoiler. Transfer parts as needed.

Callout

Component Name

Procedure
Remove the liftgate garnish molding. Refer to Liftgate Garnish Molding Replacement (TB5)Liftgate Garnish Molding Replacement (TB4)

Rear End Spoiler Nut (Qty: 5)

CAUTION:

Refer to Fastener Caution .

Rear End Spoiler

Procedure

Using a trim-type release tool disengage the 4 rear end spoiler retainers.
Remove the grommet from the liftgate outer panel.
Disconnect the electrical harness connector.
Remove the rear end spoiler.
Transfer parts as needed.
