Rear Window Washer Nozzle Replacement (Acadia)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

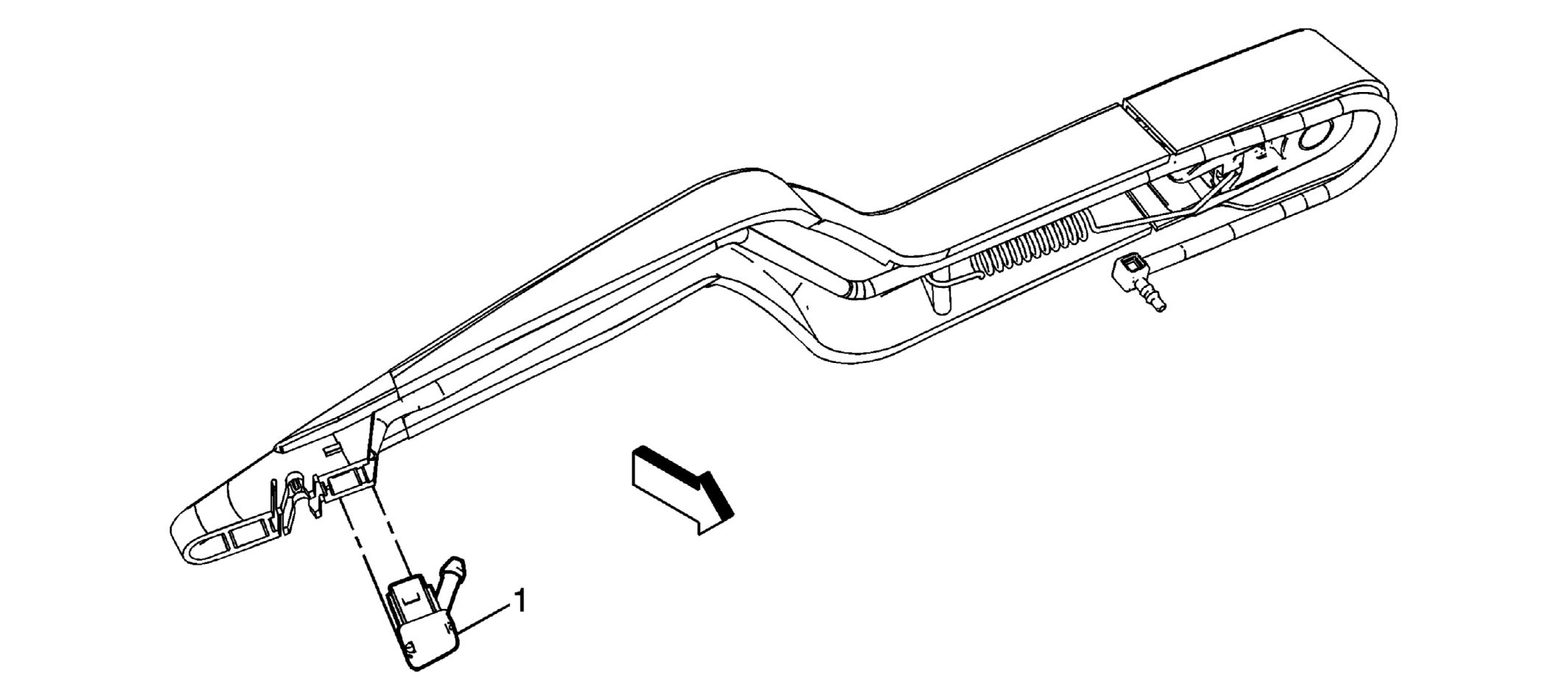

Fig 1: Rear Window Washer Nozzle (Acadia)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear wiper arm. Refer to Rear Window Wiper Arm Replacement (Acadia) . Using a pair of locking type pliers, grip the nozzle and pull the nozzle directly out from the wiper arm. Disconnect the rear wiper arm washer hose from the nozzle.
1	Rear Wiper Arm Nozzle

Callout

Component Name

Preliminary Procedure

Remove the rear wiper arm. Refer to Rear Window Wiper Arm Replacement (Acadia) .
Using a pair of locking type pliers, grip the nozzle and pull the nozzle directly out from the wiper arm.
Disconnect the rear wiper arm washer hose from the nozzle.

Rear Wiper Arm Nozzle
