Second Row Seat Area Floor Harness Routing

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

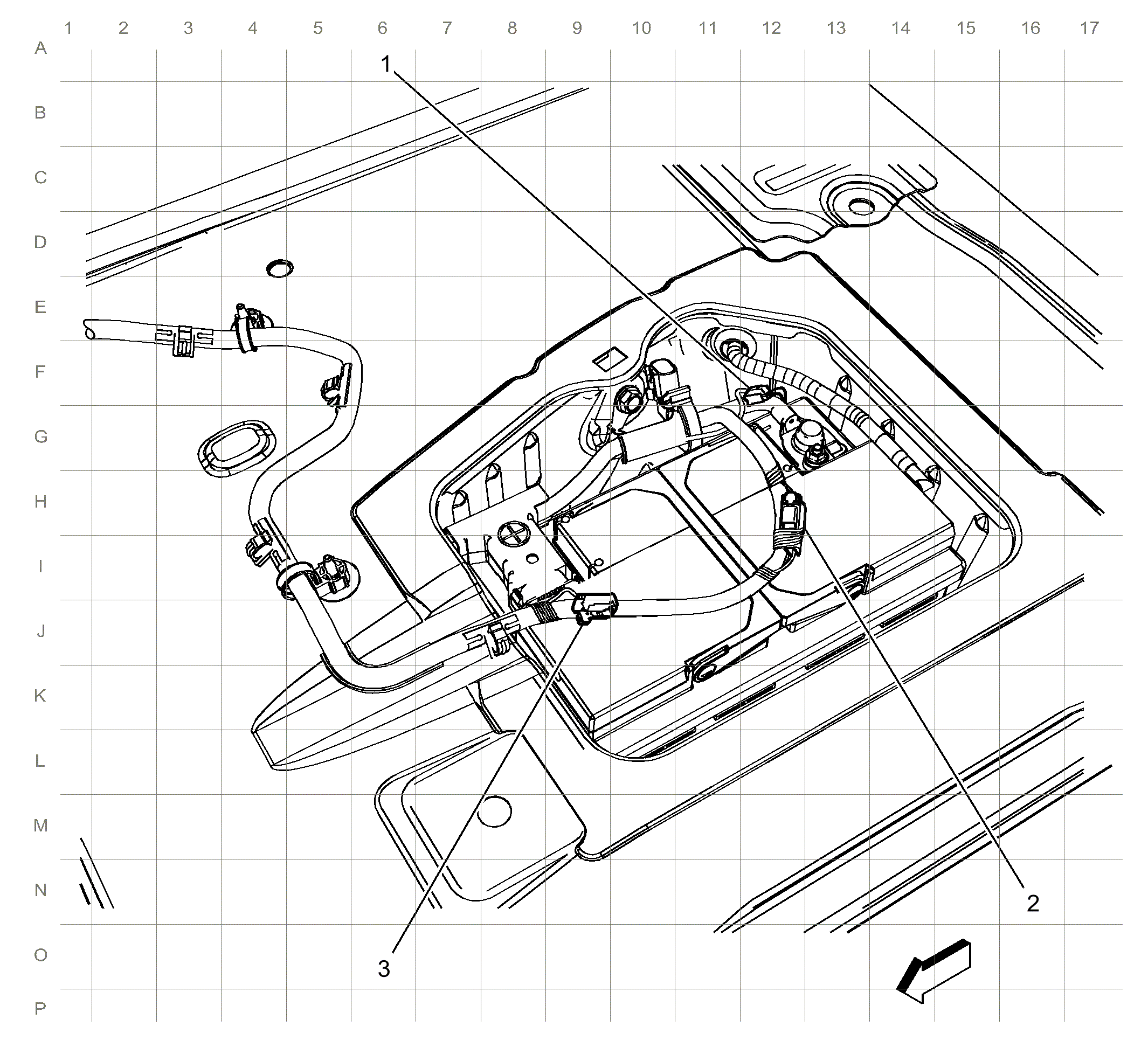

Fig 1: Second Row Seat Area Floor Harness Routing
GM2867733Courtesy of GENERAL MOTORS COMPANY
Items
1. X324 X324 Battery Negative Cable Harness to Body Harness
2. X55B Fuse Holder - Telematics (UE1) X55B Fuse Holder - Telematics (UE1)
3. X325 X325 Body Harness to Battery Positive Harness
