X325 Body Harness to Battery Positive Harness
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
|
|
|

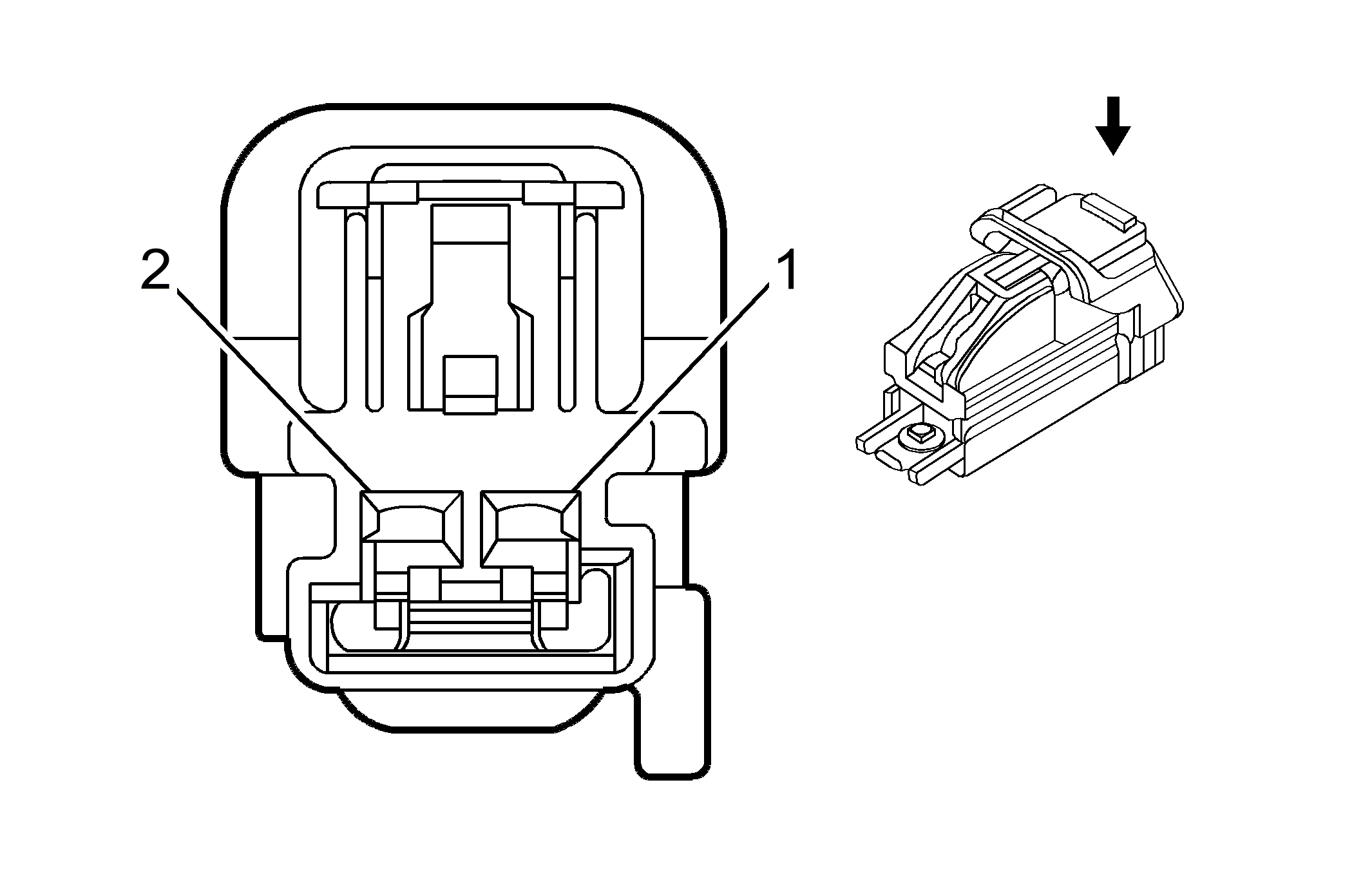

Connector Part Information
- Harness Type: Body
- OEM Connector: 7283-6444-60
- Service Connector: 19153190
- Description: 2-Way F 1.5 YESC Series, Sealed (GN)
|
Connector Part Information
- Harness Type: Battery Cable
- OEM Connector: 10846800
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way M 1.5 Series (GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-2A (GY) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-3 (GY) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.8 |
RD/WH |
4640 |
I |
- |
Battery Positive Voltage |
1 |
1 |
RD |
4640 |
II |
- |
| 2 |
0.8 |
RD/WH |
540 |
I |
- |
Battery Positive Voltage |
2 |
1 |
RD |
540 |
II |
- |
