Left Rear Door Harness Routing (W49)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

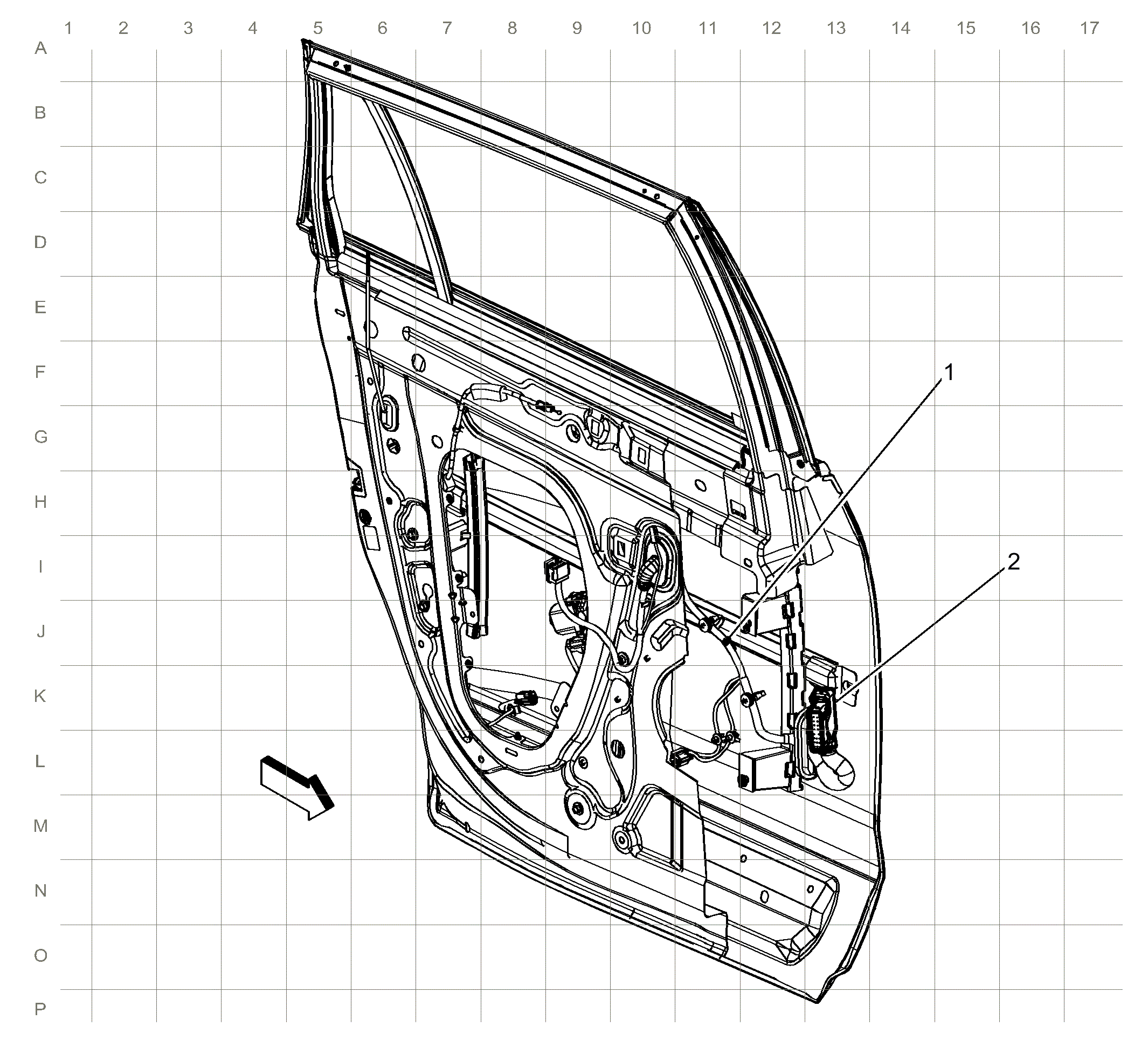

Fig 1: Left Rear Door Harness Routing (W49)
GM4090220Courtesy of GENERAL MOTORS COMPANY
Items
1. J711
2. X700 X700 Left Rear Door Harness to Body Harness
