X700 Left Rear Door Harness to Body Harness

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

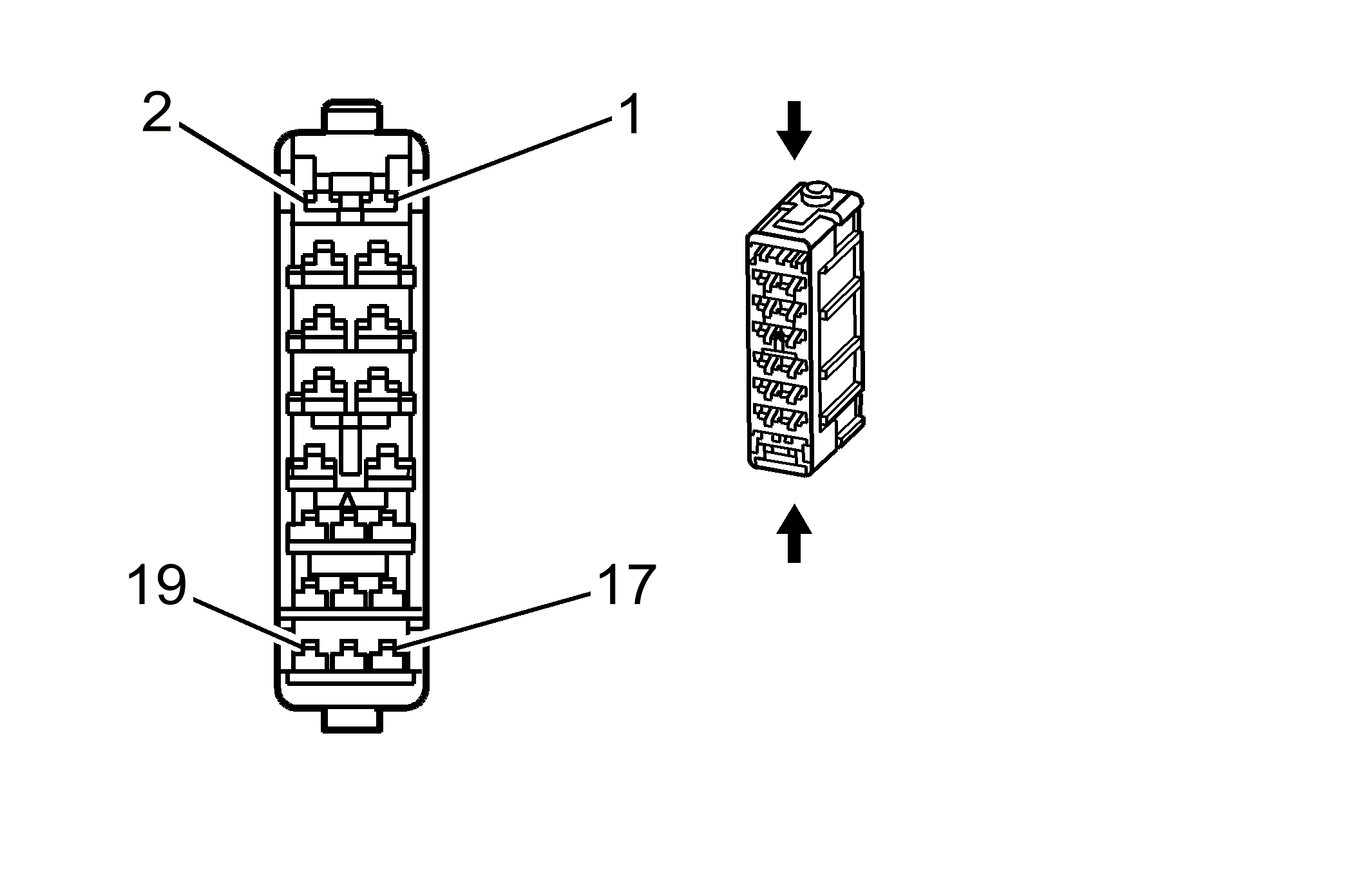

GM1864303

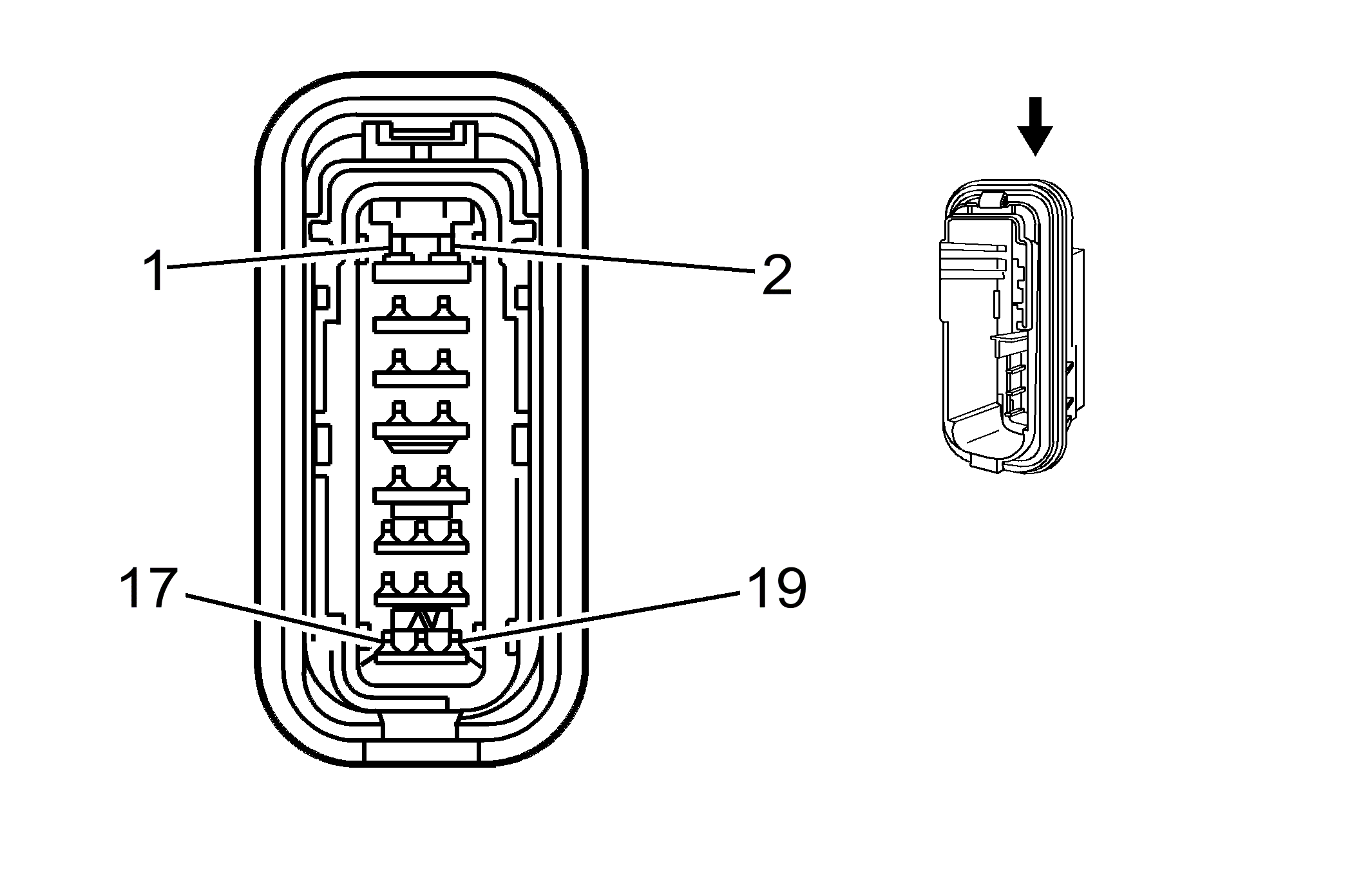

GM1864304
Connector Part Information
  • Harness Type: Left Rear Door
  • OEM Connector: 6098-5144
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 19-Way F Sealed (BK)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 6098-5141
  • Service Connector: 19167906
  • Description: 19-Way M Sealed (BK)
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I Not Required J-35616-2A (GY) Not Required Not Required Not Required Not Required Not Required
II Not Required J-35616-4A (PU) Not Required Not Required Not Required Not Required Not Required
III 19301538 J-35616-3 (GY) J-38125-553 15304702 Delphi 19 E C
IV 19301539 J-35616-5 (PU) J-38125-553 15304724 Delphi 8 C D
V 19301540 J-35616-5 (PU) J-38125-553 Not Available Not Available Not Available Not Available
VI 19301542 J-35616-3 (GY) J-38125-553 15304702 Delphi 19 2 4
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 2 RD/WH 3340 II - Battery Positive Voltage 1 2 RD/WH 3340 IV -
2 - 3 - - - - - Not Occupied 2 - 3 - - - - -
4 0.8 GY 295 II A45/AXE Door Lock Actuator Lock Control 4 1 GY 295 V -
5 0.8 TN 294 II A45/AXE Door Lock Actuator Unlock Control 5 1 TN 294 V -
6 - 7 - - - - - Not Occupied 6 - 7 - - - - -
8 2 BK 550 II - Ground 8 2 BK 550 IV -
9 0.5 L-BU/BK 747 I A45/AXE Left Rear Door Ajar Switch Signal 9 0.35 L-BU/BK 747 III -
10 - - - - - Not Occupied 10 - - - - -
11 0.35 VT 169 I - Power Window Master Switch Left Rear Down Signal 11 0.35 VT 169 III -
12 0.35 D-GN 168 I - Power Window Master Switch Left Rear Up Signal 12 0.35 D-GN 168 III -
13 0.35 D-BU 1307 I - Power Window Master Switch Lockout Signal 13 0.35 D-BU 1307 III -
14 0.35 L-BU 6622 I - Left Rear Side Impact Sensing Module Signal 14 0.35 L-BU 6622 III -
15 0.35 L-GN/BK 6623 I - Left Rear Side Impact Sensing Module Low Reference 15 0.35 L-GN/BK 6623 III -
16 - - - - - Not Occupied 16 - - - - -
17 0.8 YE 116 I - Left Rear Speaker Signal (-) 17 0.8 YE 116 VI -
18 0.8 BN 199 I - Left Rear Speaker Control (+) 18 0.8 BN 199 VI -
19 0.35 VT/WH 1382 I W49 LED Dimming Signal 19 0.35 VT/WH 1382 III W49
