Front Fascia Harness Routing (Z88)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

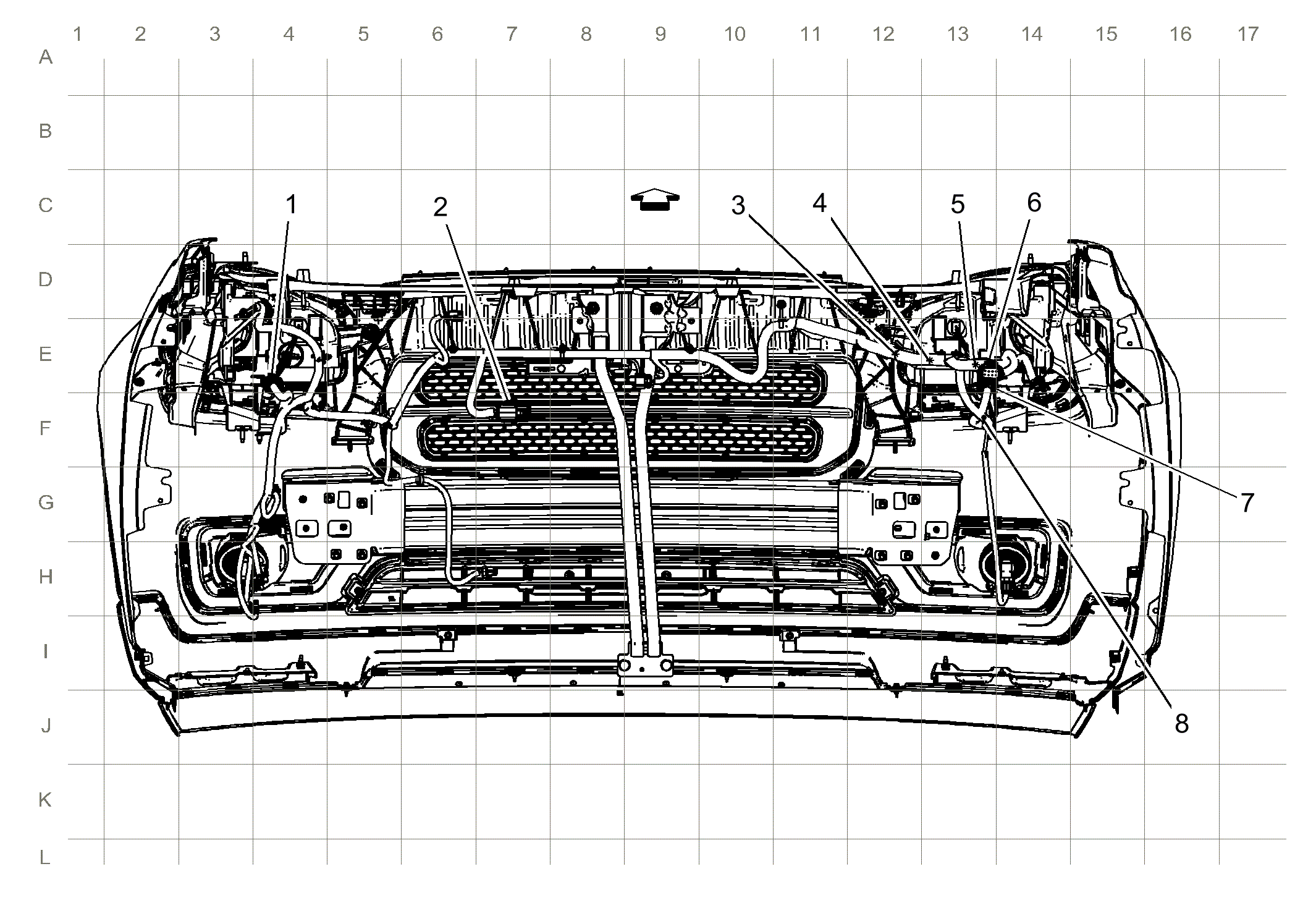

Fig 1: Front Fascia Harness Routing (Z88)

Courtesy of GENERAL MOTORS COMPANY

Items
1. X110 X110 Forward Lamp Harness to Left Headlamp Harness (W49+T26)X110 Forward Lamp Harness to Left Headlamp Harness (T97 with W49) T97 with W49 X110 Forward Lamp Harness to Left Headlamp Harness (TSH with W49) TSH with W49 X110 Forward Lamp Harness to Left Headlamp Harness (T26 with W49 without T97) T26 with W49 without T97 X110 Forward Lamp Harness to Left Headlamp Harness (X88)X110 Forward Lamp Harness to Left Headlamp Harness (Z88-TVD)X110 Forward Lamp Harness to Left Headlamp Harness (Z88+TVD)
2. X104 X104 Cooling Fan Harness to Forward Lamp Harness
3. J122
4. J120
5. J109
6. X113 X113 Body Harness to Forward Lamp Harness
7. X120 X120 Forward Lamp Harness to Right Headlamp Harness (W49+T97)X120 Forward Lamp Harness to Right Headlamp Harness (W49+T26)X120 Forward Lamp Harness to Right Headlamp Harness (W49+TSH)X120 Forward Lamp Harness to Right Headlamp Harness (W49+T97)X120 Forward Lamp Harness to Right Headlamp Harness (X88)X120 Forward Lamp Harness to Right Headlamp Harness (Z88-TVD)
8. J128
