X113 Body Harness to Forward Lamp Harness
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
|
|
|

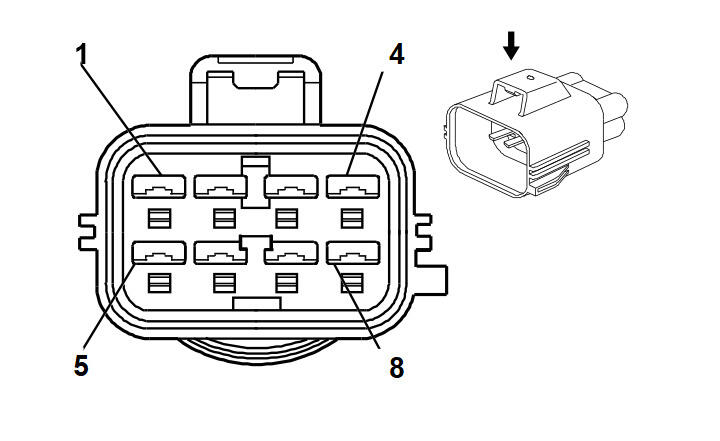

Connector Part Information
- Harness Type: Body
- OEM Connector: 7283-5574-10
- Service Connector: 88987869
- Description: 8-Way F 2.8 Series, Sealed (D-GY)
|
Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 7282-5574-10
- Service Connector: 19167744
- Description: 8-Way M 2.8 Series, Sealed (D-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-35 (VT) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-5 (PU) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.35 |
D-GN |
1409 |
I |
- |
Right Front Discriminating Sensor Signal |
1 |
0.35 |
D-GN |
1409 |
II |
- |
| 2 |
0.35 |
GY |
5600 |
I |
- |
Right Front Discriminating Sensor Low Reference |
2 |
0.35 |
GY |
5600 |
II |
- |
| 3 |
0.35 |
YE |
61 |
I |
- |
Outside Ambient Temperature Sensor Low Reference |
3 |
0.35 |
YE |
61 |
II |
C67/CJ2 |
| 4 |
0.35 |
L-GN/BK |
735 |
I |
- |
Outside Ambient Air Temperature Sensor Signal |
4 |
0.35 |
L-GN/BK |
735 |
II |
C67/CJ2 |
| 5 |
0.35 |
YE |
354 |
I |
- |
Left Front Discriminating Sensor Signal |
5 |
0.35 |
YE |
354 |
II |
- |
| 6 |
0.35 |
TN/OG |
5045 |
I |
- |
Left Front Discriminating Sensor Low Reference |
6 |
0.35 |
TN/OG |
5045 |
II |
- |
| 7 |
1 |
RD/BK |
1042 |
I |
- |
Battery Positive Voltage |
7 |
1 |
RD/BK |
1042 |
II |
W49+T97/T26 |
| 8 |
3 |
RD/BK |
1342 |
I |
TB5 |
Battery Positive Voltage |
8 |
2 |
RD/BK |
1342 |
II |
- |
