Driver Door Harness Routing (W49)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

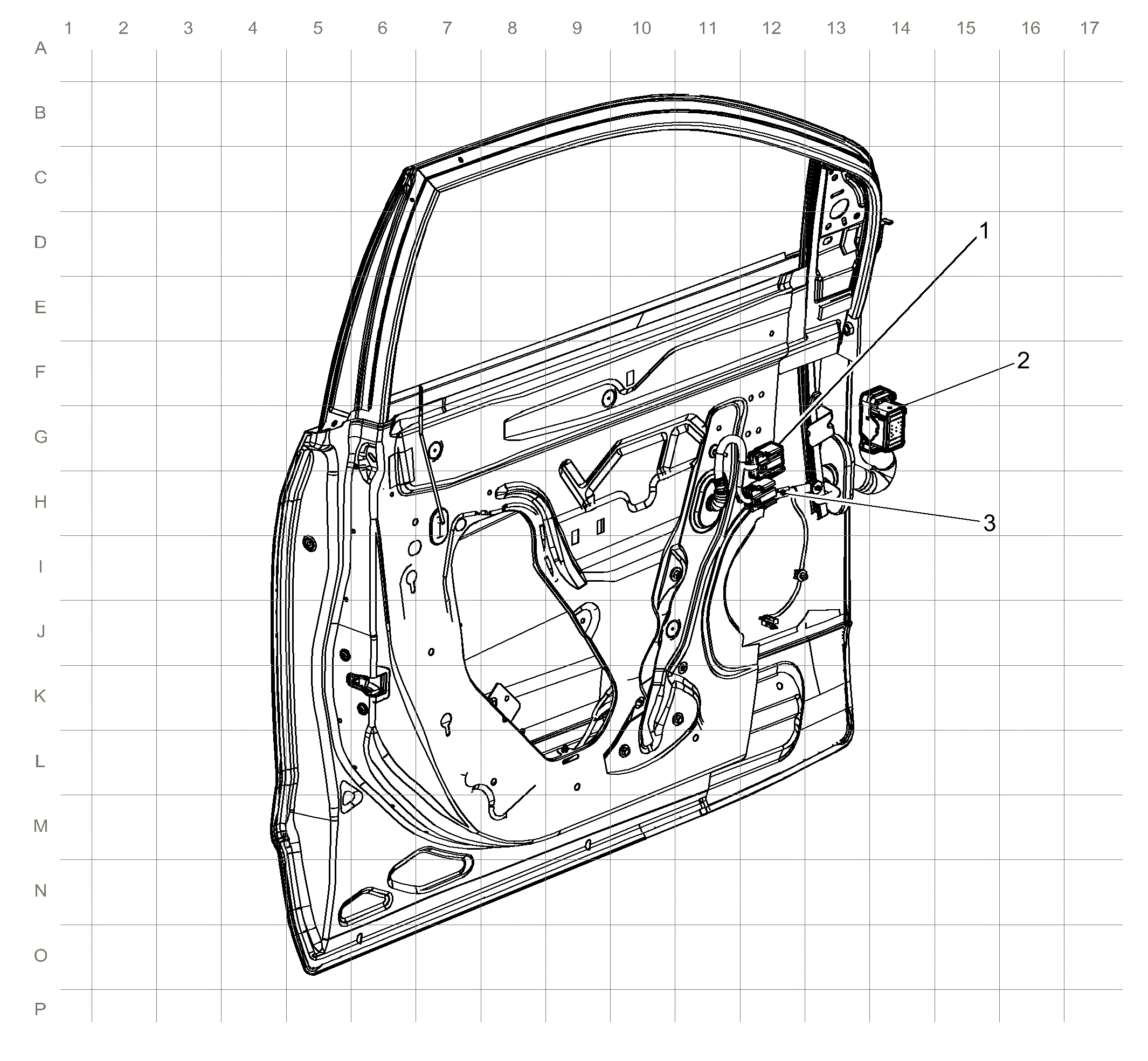

Fig 1: Driver Door Harness Routing (W49)
GM4090227Courtesy of GENERAL MOTORS COMPANY
Items
1. X555 X555 Driver Door Trim Harness to Driver Door Harness
2. X500 X500 Driver Door Harness to Body Harness
3. J555
