X500 Driver Door Harness to Body Harness

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

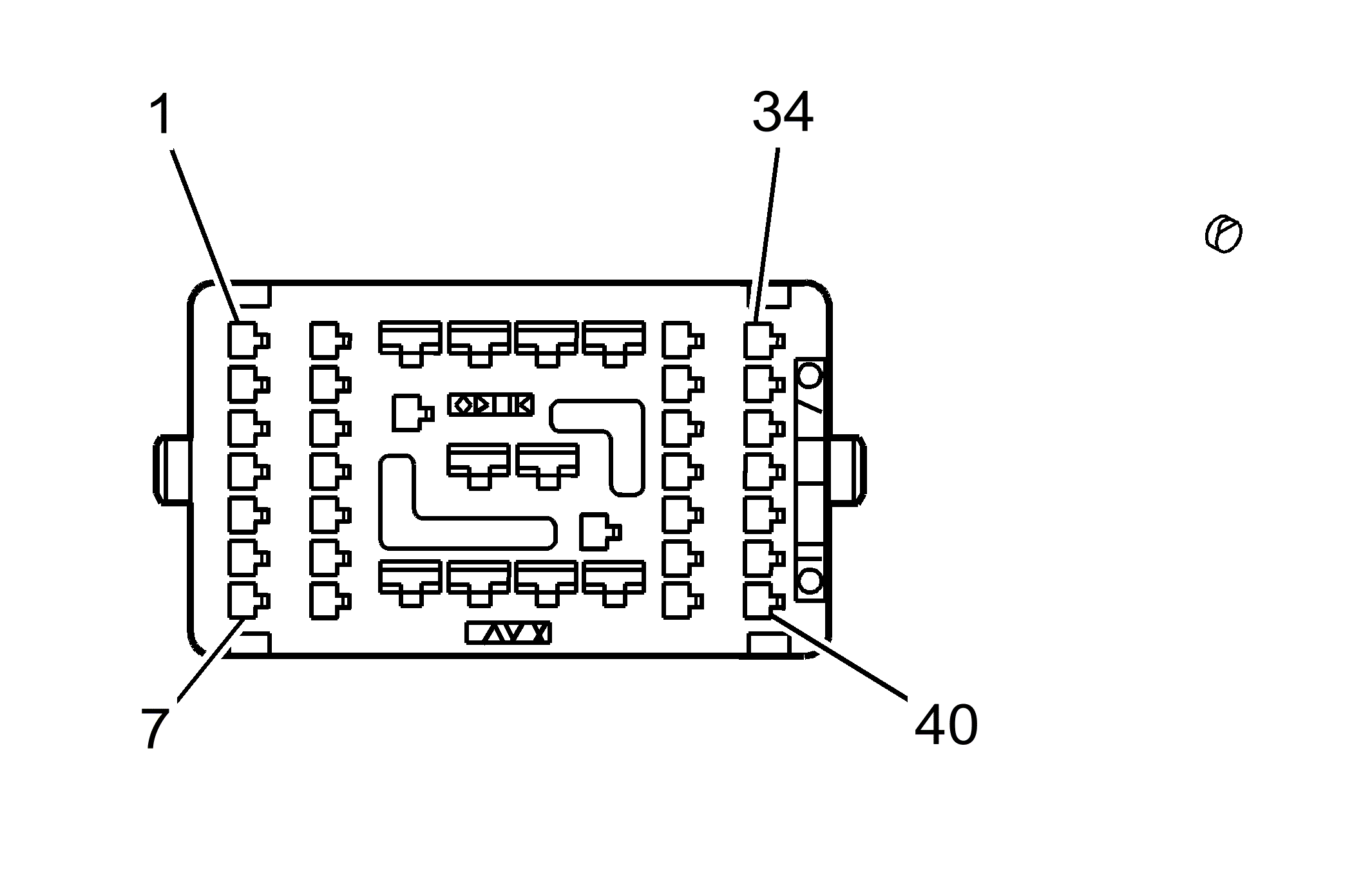

GM1864301

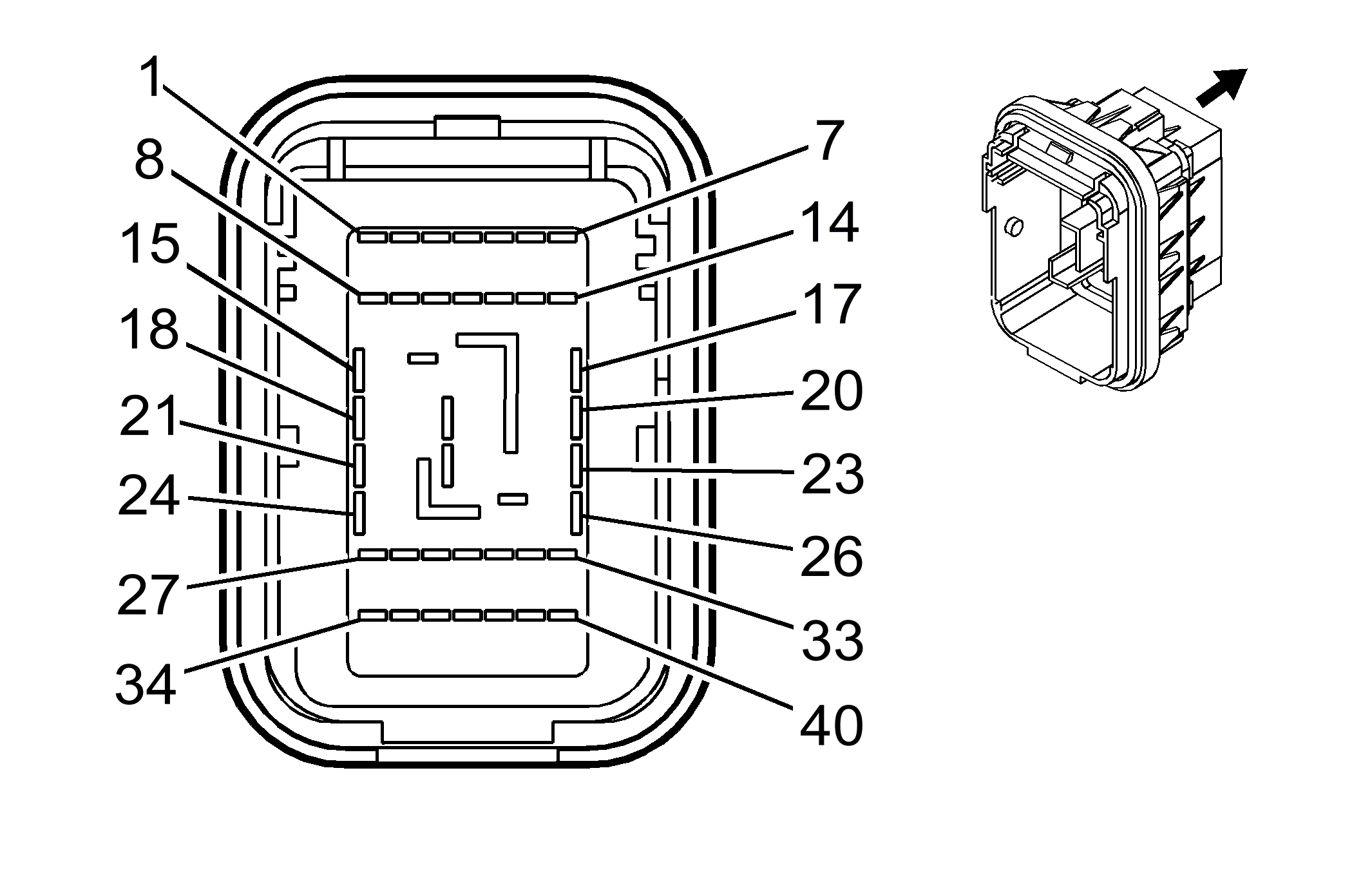

GM3264025
Connector Part Information
  • Harness Type: Driver Door
  • OEM Connector: 6098-5138
  • Service Connector: Service by Harness - See Part Catalog
  • Description: 40-Way F Sealed (BK)
 Connector Part Information
  • Harness Type: Body
  • OEM Connector: 6098-6553
  • Service Connector: 13577279
  • Description: 40-Way M
Terminal Part Information

Terminal Type ID Terminated Lead Diagnostic Test Probe Terminal Removal Tool Service Terminal Tray Name Core Crimp Insulation Crimp
I Not Required J-35616-2A (GY) Not Required Not Required Not Required Not Required Not Required
II Not Required J-35616-4A (PU) Not Required Not Required Not Required Not Required Not Required
III 19301538 J-35616-3 (GY) J-38125-553 15304702 Delphi 19 E 4
IV 19301538 J-35616-3 (GY) J-38125-553 15304702 Delphi 19 E C
V 19301539 J-35616-5 (PU) J-38125-553 15304722 Delphi 8 E C
VI 19301539 J-35616-5 (PU) J-38125-553 15304724 Delphi 8 2 A
VII 19301539 J-35616-5 (PU) J-38125-553 15304724 Delphi 8 A D
VIII 19301540 J-35616-5 (PU) J-38125-553 15304724 Delphi 8 2 A
IX 19301540 J-35616-5 (PU) J-38125-553 Not Available Not Available Not Available Not Available
Pin Size Color Circuit Terminal Type ID Option Function Pin Size Color Circuit Terminal Type ID Option
1 0.35 L-BU/WH 280 I - Power Window Master Switch Lockout Right Rear Signal 1 0.35 L-BU/WH 280 IV -
2 0.35 GY 6175 I A45+KA1 Driver Heated Seat Switch Back Signal 2 0.35 GY 6175 IV A45
3 - - - - - Not Occupied 3 - - - - -
4 0.5 GY/BK 745 I - Left Front Door Ajar Switch Signal 4 0.35 GY/BK 745 IV -A45-AXE
5 - - - - - Not Occupied 5 - - - - -
6 0.35 VT 169 I - Power Window Master Switch Left Rear Down Signal 6 0.35 VT 169 IV -
7 0.5 L-BU/WH 1314 I - Left Front Turn Signal Lamp Control 7 0.5 L-BU/WH 1314 III -
8 0.5 OG 2267 I DS3 Mirror Heating Element Control 8 0.5 OG 2267 III -
9 0.35 VT 6174 I A45+KA1 Driver Heated Seat Switch Back LED Control 9 0.35 VT 6174 IV A45
10 0.35 VT/WH 889 I DL6/DS3 Right Mirror Motor Down Control 10 0.35 VT/WH 889 IV DL6/DS3
11 0.35 D-GN 168 I - Power Window Master Switch Left Rear Up Signal 11 0.35 D-GN 168 IV -
12 0.35 OG/WH 881 I DL6/DS3 Right Mirror Motor Right Control 12 0.35 OG/WH 881 IV DL6/DS3
13 0.35 D-BU 1307 I - Power Window Master Switch Lockout Signal 13 0.35 D-BU 1307 IV -
14 0.35 TN/WH 330 I DL6/DS3 Right Mirror Motor Control 14 0.35 TN/WH 330 IV DL6/DS3
15 3 BK 550 II - Ground 15 3 BK 550 VII -
16 0.35 D-BU 6172 I A45+KA1 Driver Heated Seat Switch Back Cushion Signal 16 0.35 D-BU 6172 IV A45
17 1 RD/WH 3240 II AXE Battery Positive Voltage 17 1 RD/WH 3240 IX AXE
18 0.35 BN 6173 II A45+KA1 Driver Heated Seat Switch Back Cushion LED Control 18 0.8 BN 6173 VIII A45
19 0.8 GY 118 II - Left Front Speaker Signal (-) 1 19 0.8 GY 118 VI -
20 0.35 WH/BK 6177 II A45+KA1 Driver Heated Seat Medium Indicator Control 20 0.8 WH/BK 6177 VIII A45
21 0.5 RD/WH 1940 II - Battery Positive Voltage 21 0.5 RD/WH 1940 V -
22 0.8 TN 201 II - Left Front Speaker Control (+) 1 22 0.8 TN 201 VI -
23 3
2		 RD/WH
RD/WH		 3340
3340		 II
II		 AXA
AXE		 Battery Positive Voltage
Battery Positive Voltage		 23 3 RD/WH 3340 VII -
24 0.8 TN 694 II - Driver Door Lock Actuator Unlock Control 24 1 TN 694 IX -A45-AXE
25 0.35 L-BU 1662 I A45+KA1 Driver Heated Seat Low Indicator Control 25 0.35 L-BU 1662 IV A45
26 0.8 GY 295 II - Door Lock Actuator Lock Control 26 1 GY 295 IX -A45-AXE
27 0.35
0.35		 D-GN
GY		 1661
8		 I
I		 A45+KA1
AXA		 Driver Heated Seat High Indicator Control
Instrument Panel Lamp Control 1		 27 0.35
0.35		 D-GN
GY		 1661
8		 IV
IV		 A45
AXA
28 0.35 L-BU 166 I - Power Window Master Switch Right Front Up Signal 28 0.35 L-BU 166 IV -
29 0.35 TN 167 I - Power Window Master Switch Right Front Down Signal 29 0.35 TN 167 IV -
30 0.35 GY 1690 I DNP Automatic Day/Night Mirror Signal 30 0.35 GY 1690 IV DNP
31 0.35 PK 1691 I DNP Automatic Day/Night Mirror Low Reference 31 0.35 PK 1691 IV DNP
32 0.35 WH 2132 I - Left Front Side Impact Sensing Module Signal 32 0.35 WH 2132 IV -
33 0.35 VT/WH 6628 I - Left Front Side Impact Sensing Module Low Reference 33 0.35 VT/WH 6628 IV -
34 0.5 OG/BK 781 I - Driver Door Lock Switch Unlock Signal 34 0.35 OG/BK 781 IV -A45-AXE
35 0.5 PK/BK 780 I - Driver Door Lock Switch Lock Signal 35 0.35 PK/BK 780 IV -A45-AXE
36 0.35
0.35		 D-GN
VT/WH		 5060
1382		 I
I		 A45/AXE
AXA		 Low Speed GMLAN Serial Data
LED Dimming Signal		 36 0.35
0.35		 D-GN
VT/WH		 5060
1382		 IV
IV		 A45/AXE
AXA
37 0.35 VT 171 I - Power Window Master Switch Right Rear Down Signal 37 0.35 VT 171 IV -
38 0.35 YE 43 I - Accessory Ignition Voltage 38 0.35 YE 43 IV -
39 0.35 L-GN 170 I - Power Window Master Switch Right Rear Up Signal 39 0.35 L-GN 170 IV -
40 0.35 VT/WH 1382 I W49 LED Dimming Signal 40 0.35 VT/WH 1382 IV W49
