Body Harness Routing - Near Liftgate

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

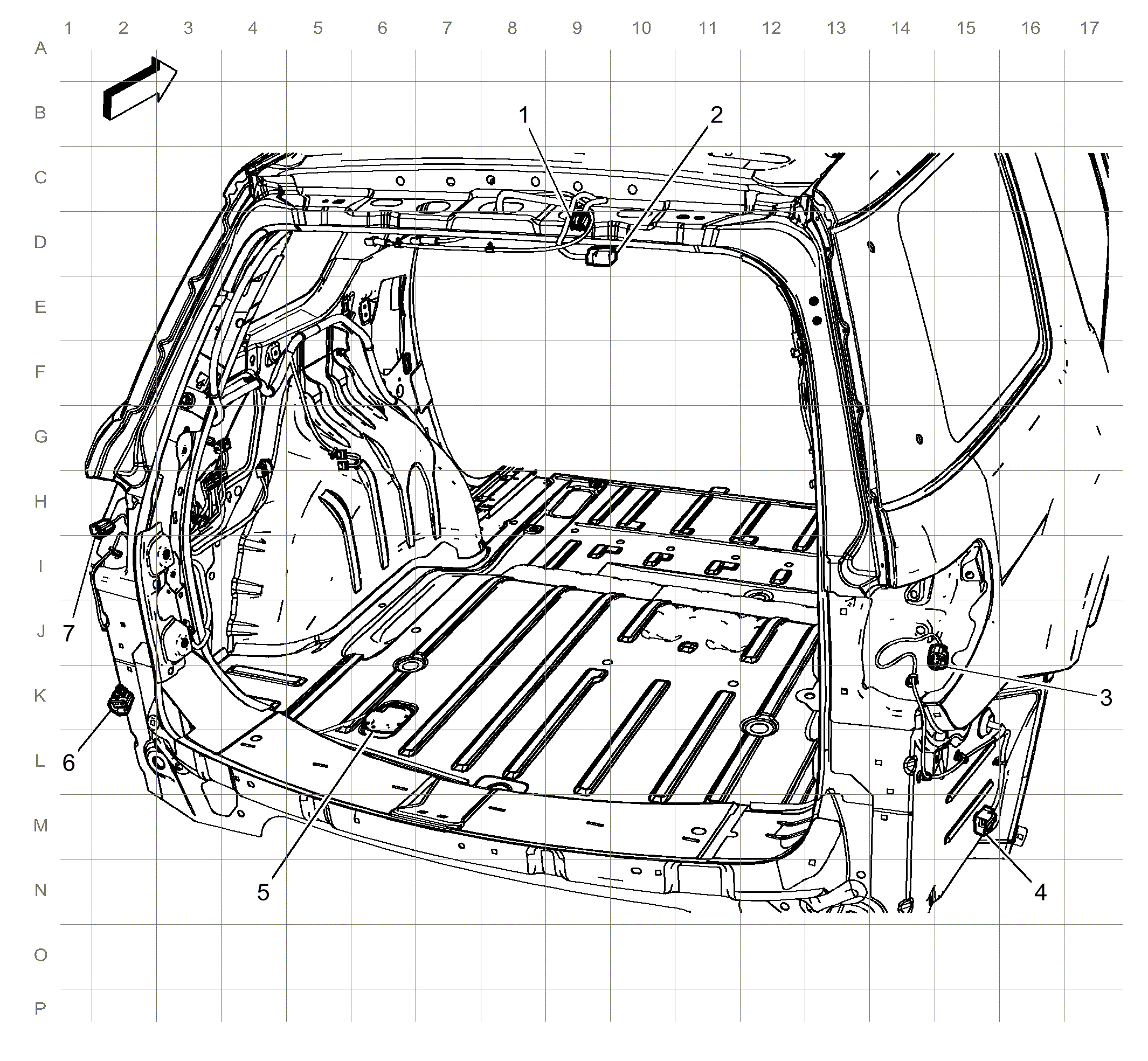

Fig 1: Body Harness Routing - Near Liftgate

Courtesy of GENERAL MOTORS COMPANY

Items
1. X901 X901 Body Harness to Liftgate Harness
2. X903 X903 Body Harness to Liftgate Harness
3. X420 X420 Body Harness to Right Tail Lamp Harness (W49+T89)X420 Body Harness to Right Tail Lamp Harness (W49-T89)
4. X442 X442 Body Harness to Trailer Tow Harness
5. X405 X405 Rear Axle Harness to Body Harness (16 of 16)
6. X440 (W49 with T79 or UD7) X440 Body Harness to Rear Park Assist Harness
7. X410 X410 Body Harness to Left Tail Lamp Harness (W49+T89)X410 Body Harness to Left Tail Lamp Harness (W49-T89)
