X901 Body Harness to Liftgate Harness
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
|
|
|

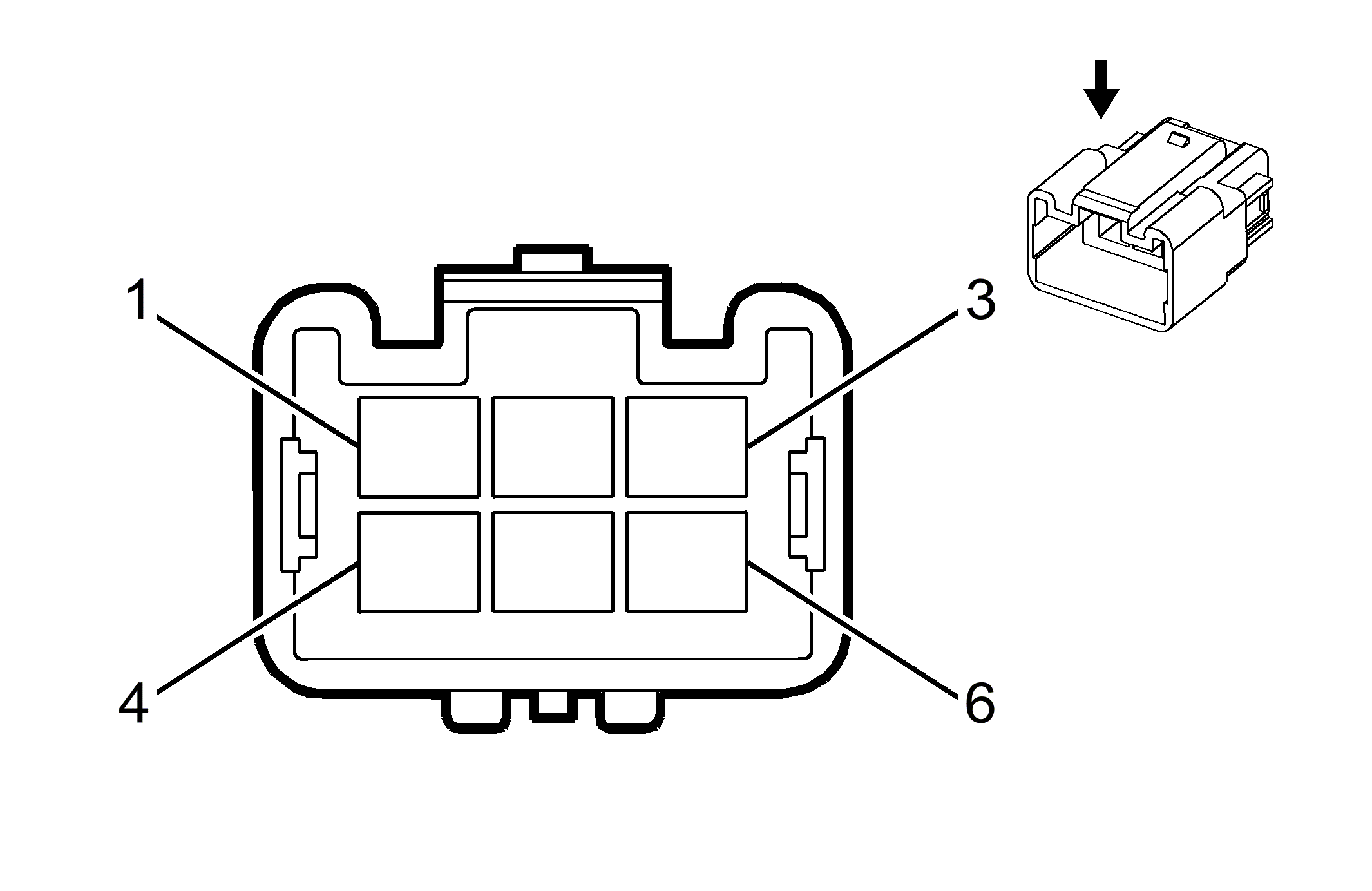

Connector Part Information
- Harness Type: Body
- OEM Connector: 7283-3740-40
- Service Connector: 19153168
- Description: 6-Way F YESC Kaizen Series (L-GY)
|
Connector Part Information
- Harness Type: Liftgate
- OEM Connector: 7282-3740-40
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way M
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-42 (RD) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-43 (RD) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
3 |
BK |
650 |
I |
- |
Ground |
1 |
3 |
BK |
650 |
II |
- |
| 2 |
2 |
BN |
5790 |
I |
TB5 |
Lift Gate Cinch Latch Motor Open Control |
2 |
2 |
BN |
5790 |
II |
TB5 |
| 3 |
5 |
VT |
293 |
I |
- |
Rear Defog Element Control |
3 |
5 |
VT |
293 |
II |
- |
| 4 |
2 |
L-BU |
5791 |
I |
TB5 |
Lift Gate Cinch Latch Motor Close Control |
4 |
2 |
L-BU |
5791 |
II |
TB5 |
| 5 |
1 |
BK |
650 |
I |
- |
Ground |
5 |
1 |
BK |
650 |
II |
- |
| 6 |
1 |
RD/WH |
3840 |
I |
- |
Battery Positive Voltage |
6 |
1 |
RD/WH |
3840 |
II |
- |
