Left Rear of the Passenger Compartment

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

Items
1. K39 Liftgate Control Module (TB5) K39 Liftgate Control Module X1 K39 Liftgate Control Module X2 K39 Liftgate Control Module X3 (TB5)
2. K41 Front and Rear Parking Assist Control Module (UD7) K41R Rear Parking Assist Control Module X1 K41R Rear Parking Assist Control Module X2
3. K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communication Interface Control Module X2 K73 Telematics Communication Interface Control Module X2 (UE1)K73 Telematics Communication Interface Control Module X1 K73 Telematics Communication Interface Control Module X2
4. T4S Wireless Communication Antenna - Bluetooth (UPF)
5. A12 Digital Radio Receiver Control Module (U2K or UBS) A12 Digital Radio Receiver Control Module
6. P19L Speaker - Left Rear Compartment (UQA or UQS) P19L Speaker - Left Rear Compartment
7. T1 Accessory DC/AC Power Inverter Module (KI6) T1 Accessory DC/AC Power Inverter Module (KI6)T1 Accessory DC/AC Power Inverter Module (K17)
8. M17 Liftgate Motor Assembly (TB5)

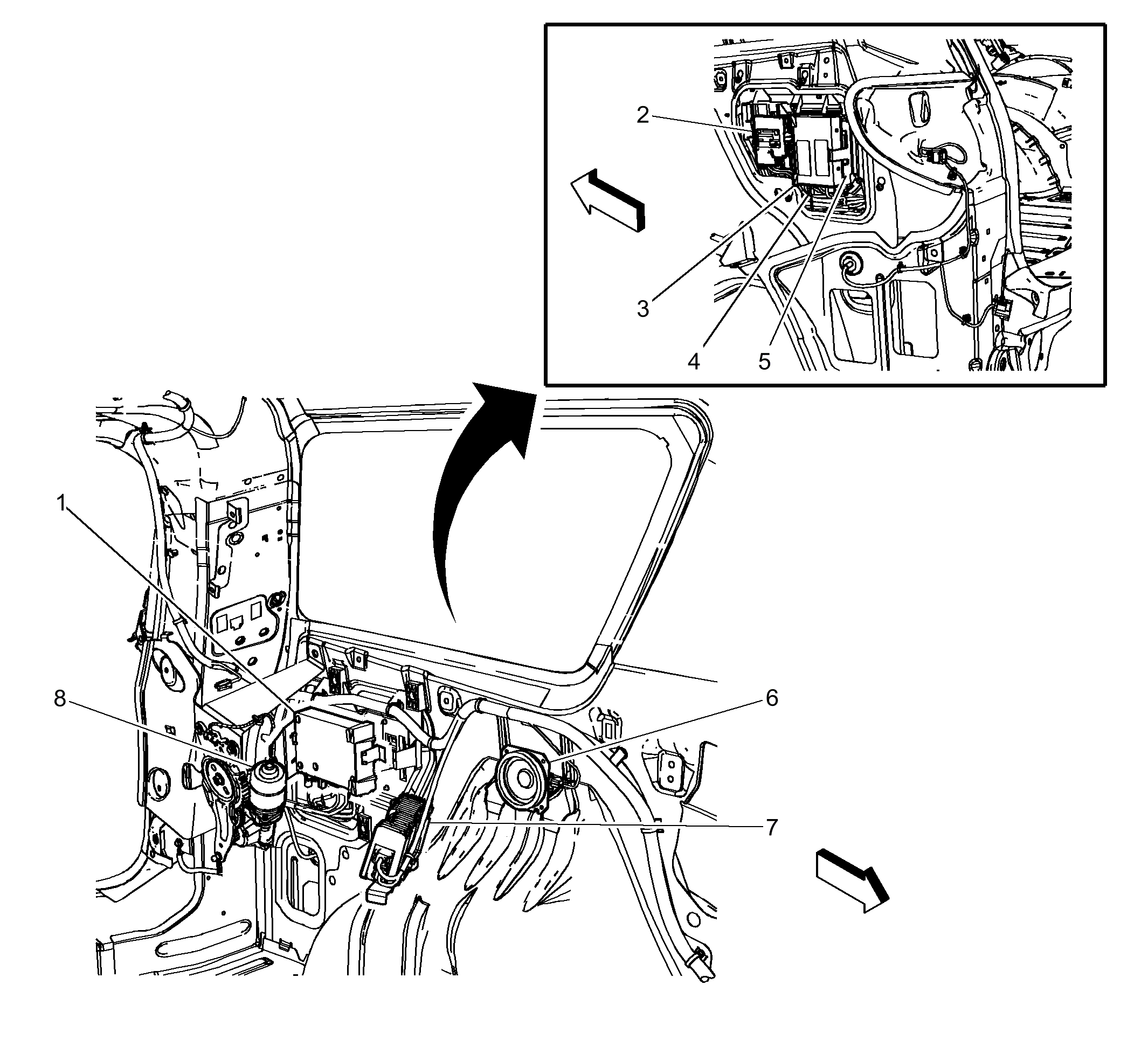

Fig 1: Left Rear of the Passenger Compartment

Courtesy of GENERAL MOTORS COMPANY
