T1 Accessory DC/AC Power Inverter Module (K17)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
|
|

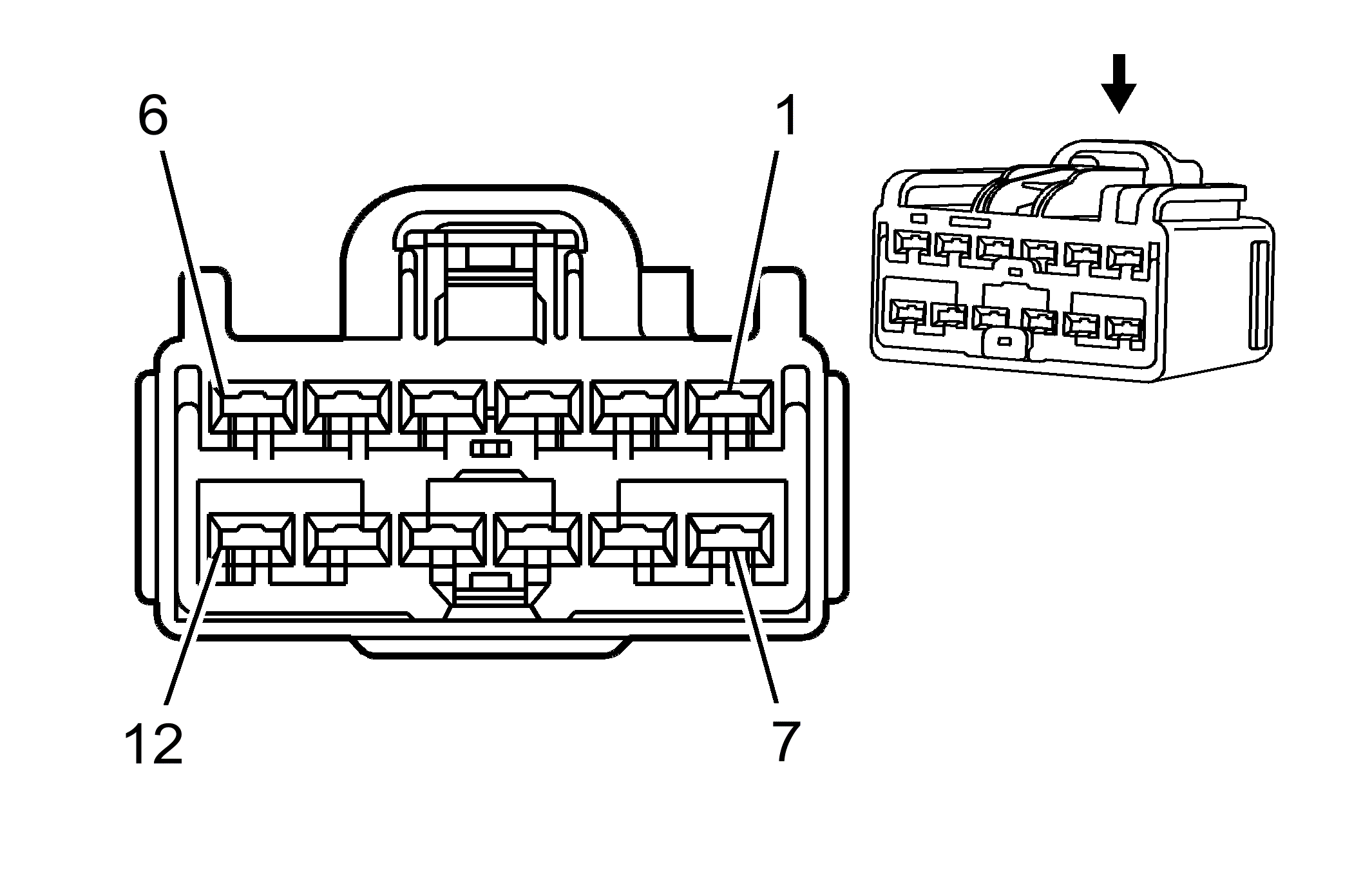

Connector Part Information
- Harness Type: Body
- OEM Connector: 7283-6468-60
- Service Connector: 19167678
- Description: 12-Way F YESC Kaizen Series (GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575832 |
J-35616-35 (VT) |
J-38125-11A |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13575838 |
J-35616-35 (VT) |
J-38125-11A |
7116-4110-02 |
Yazaki 9 |
E |
C |
| III |
13575838 |
J-35616-35 (VT) |
J-38125-11A |
7116-4111-02 |
Yazaki 9 |
E |
A |
| IV |
13575839 |
J-35616-35 (VT) |
J-38125-11A |
7116-4112-02 |
Yazaki 9 |
C |
D |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 2 |
- |
- |
- |
Not Occupied |
- |
- |
| 3 |
0.8 |
BR |
686 |
230 V AC Phase A |
III |
KI7 |
| 4 - 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
2 |
RD/WH |
2740 |
Battery Positive Voltage |
IV |
KI7 |
| 7 |
0.8 |
RD |
5684 |
120 V AC Phase B |
III |
KI7 |
| 8 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
5 |
BK |
550 |
Ground |
I |
KI7 |
| 12 |
0.35 |
D-BU |
6807 |
DC To AC Inverter Control |
II |
KI7 |
